Immobilizer Control Unit-Receiver Replacement

Immobilizer Control Unit-Receiver Replacement

1. Remove the dashboard lower cover.
2. Remove the steering column covers.

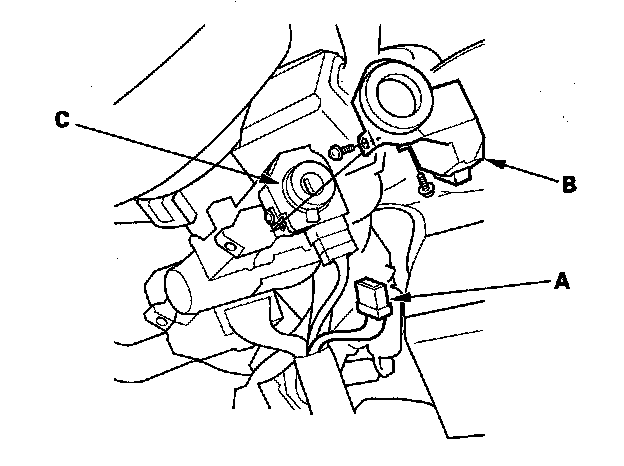

3. Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).






4. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (C).
5. Install the immobilizer control unit-receiver in the reverse order of removal.
6. After replacement, register the unit with the HDS, then check the immobilizer system.
