Component Locations

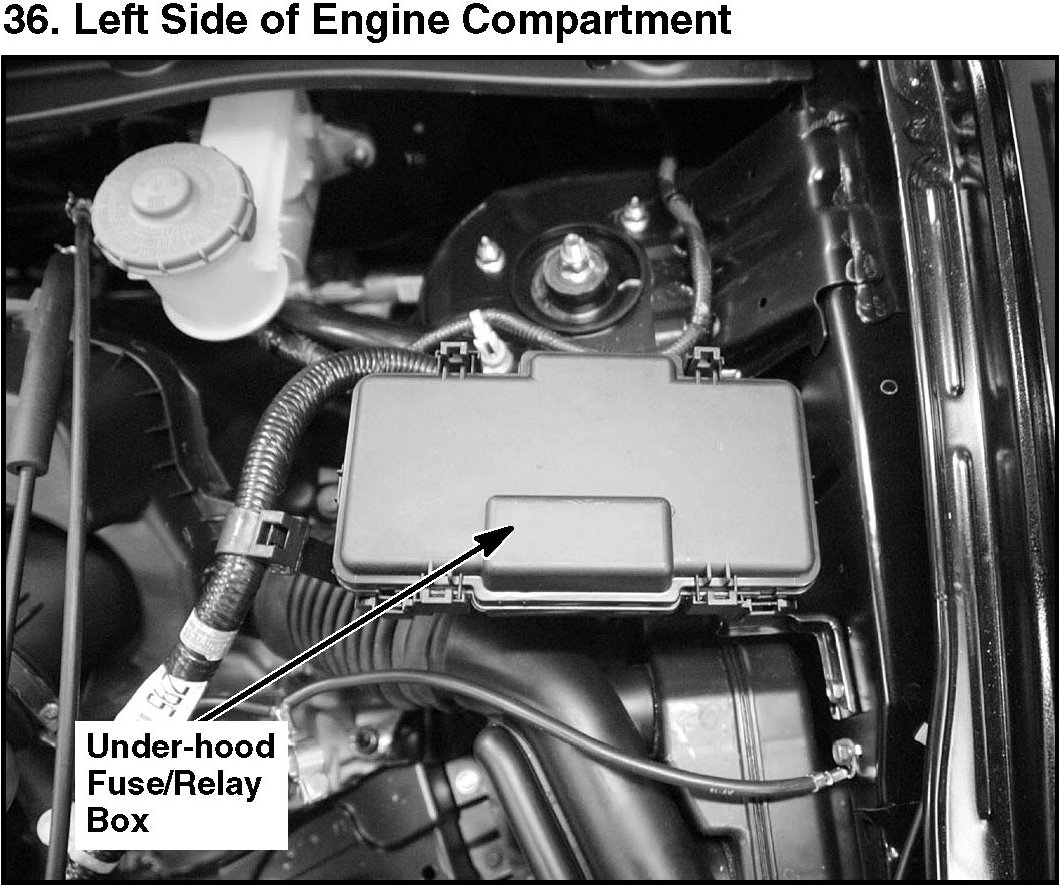

36. Left Side Of Engine Compartment:

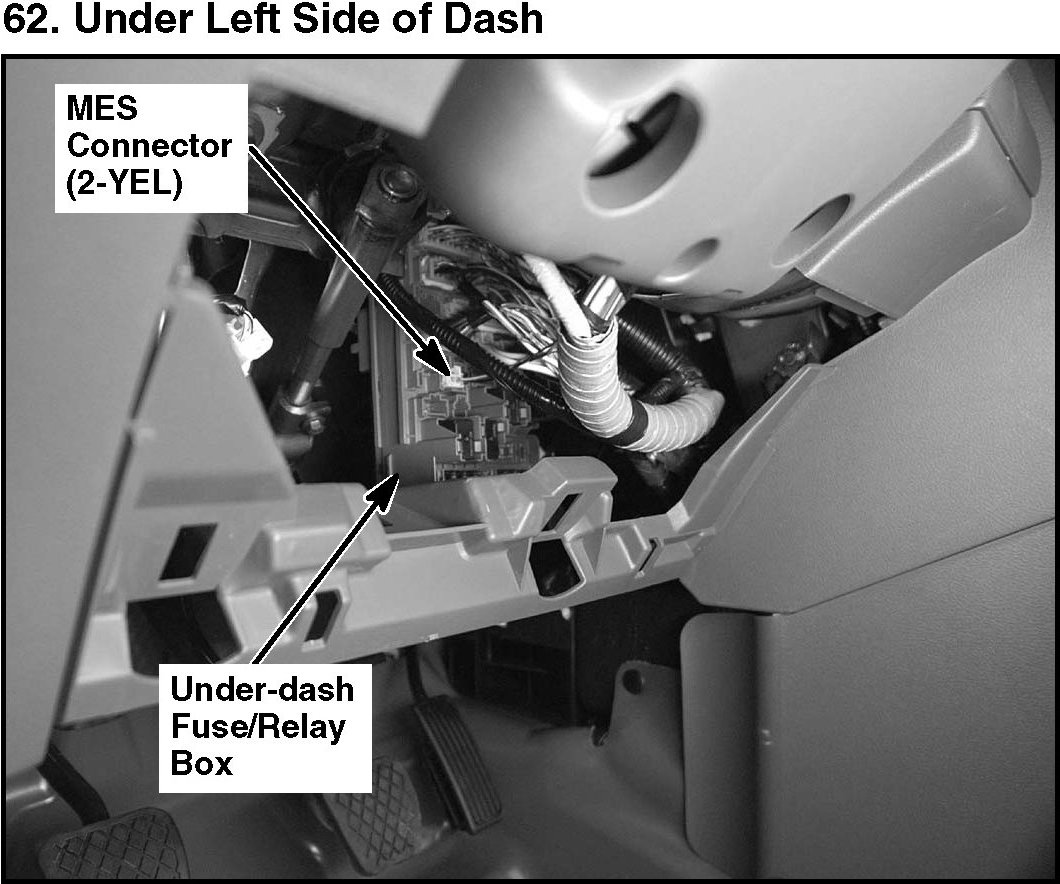

62. Under Left Side Of Dash:

Starting System Component Location Index:

Charging System Component Location Index:

Heating/Air Conditioning Component Location Index:

Relay And Control Unit Locations Dashboard:

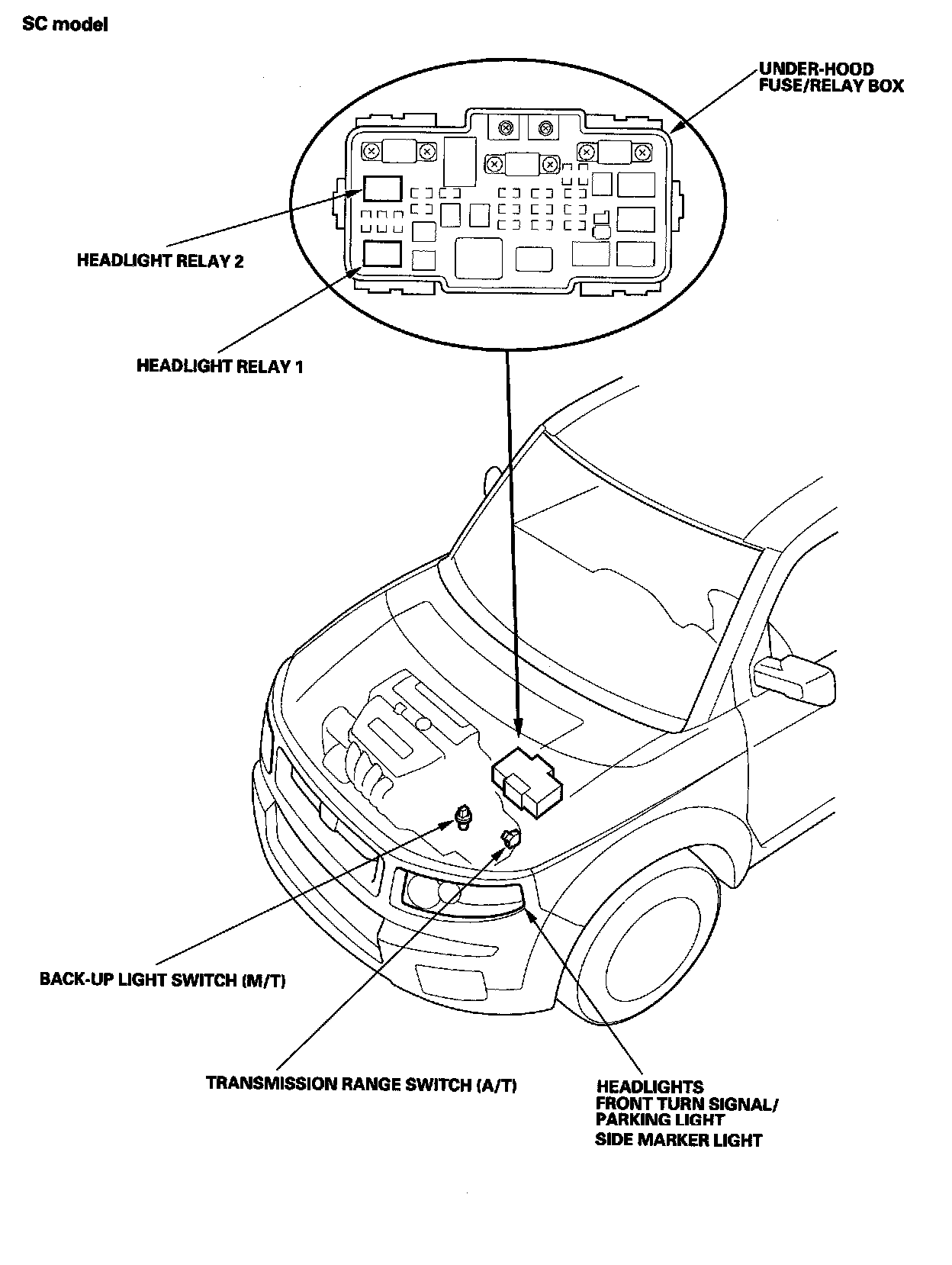

Exterior Lights Component Location Index:

Exterior Lights Component Location Index:

Exterior Lights Component Location Index:

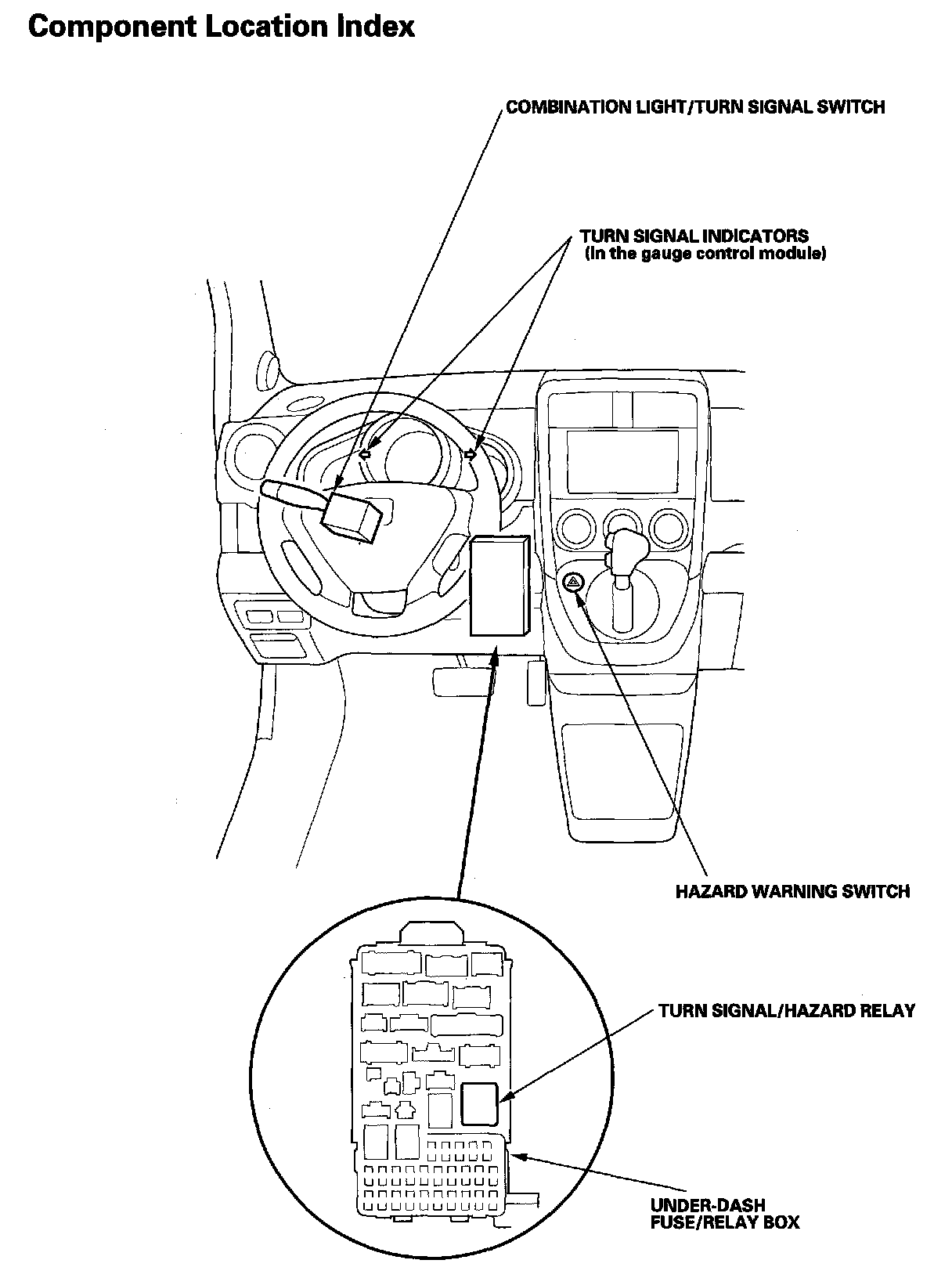

Turn Signal/Hazard Warning Lights Component Location Index:

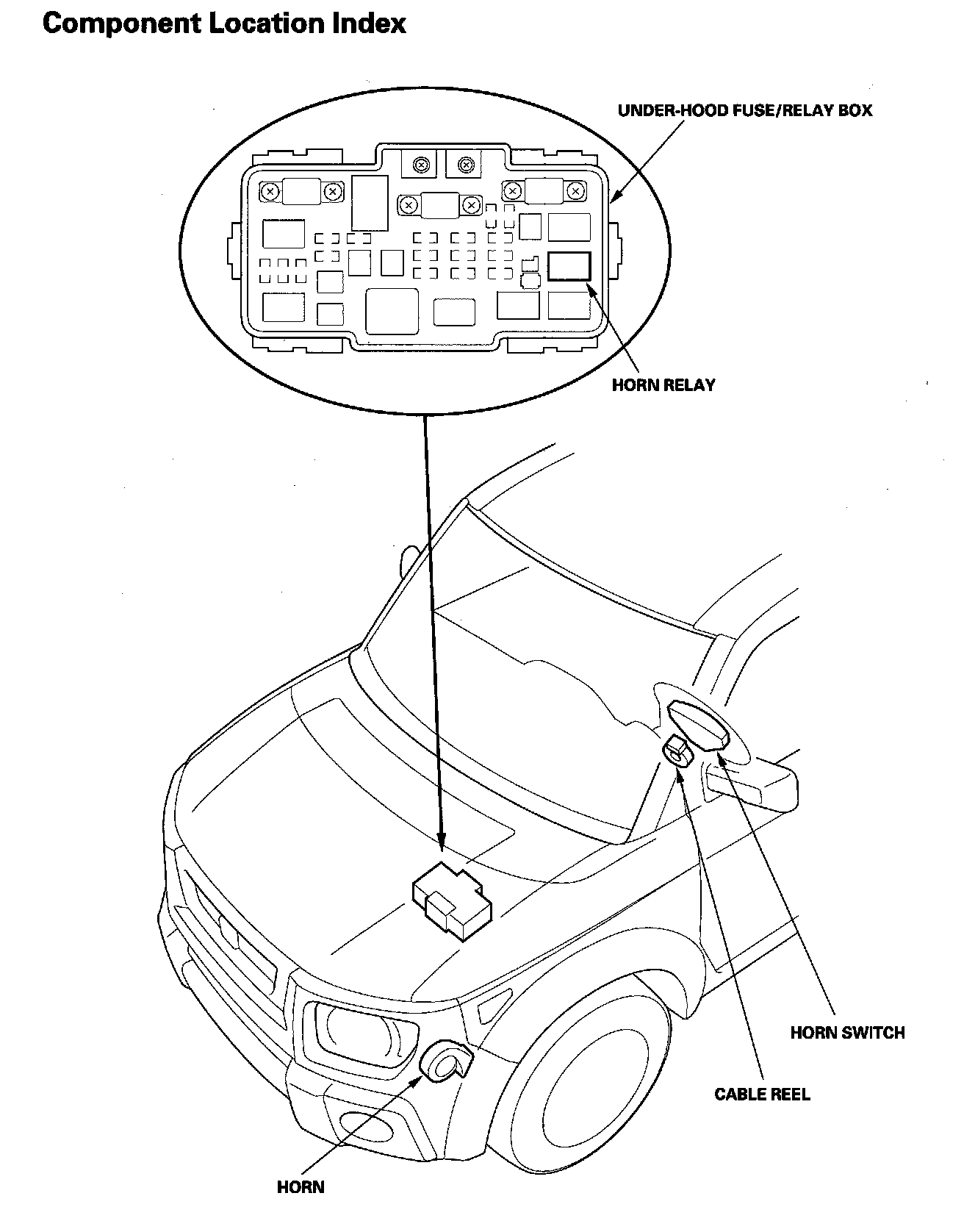

Horns Component Location Index:

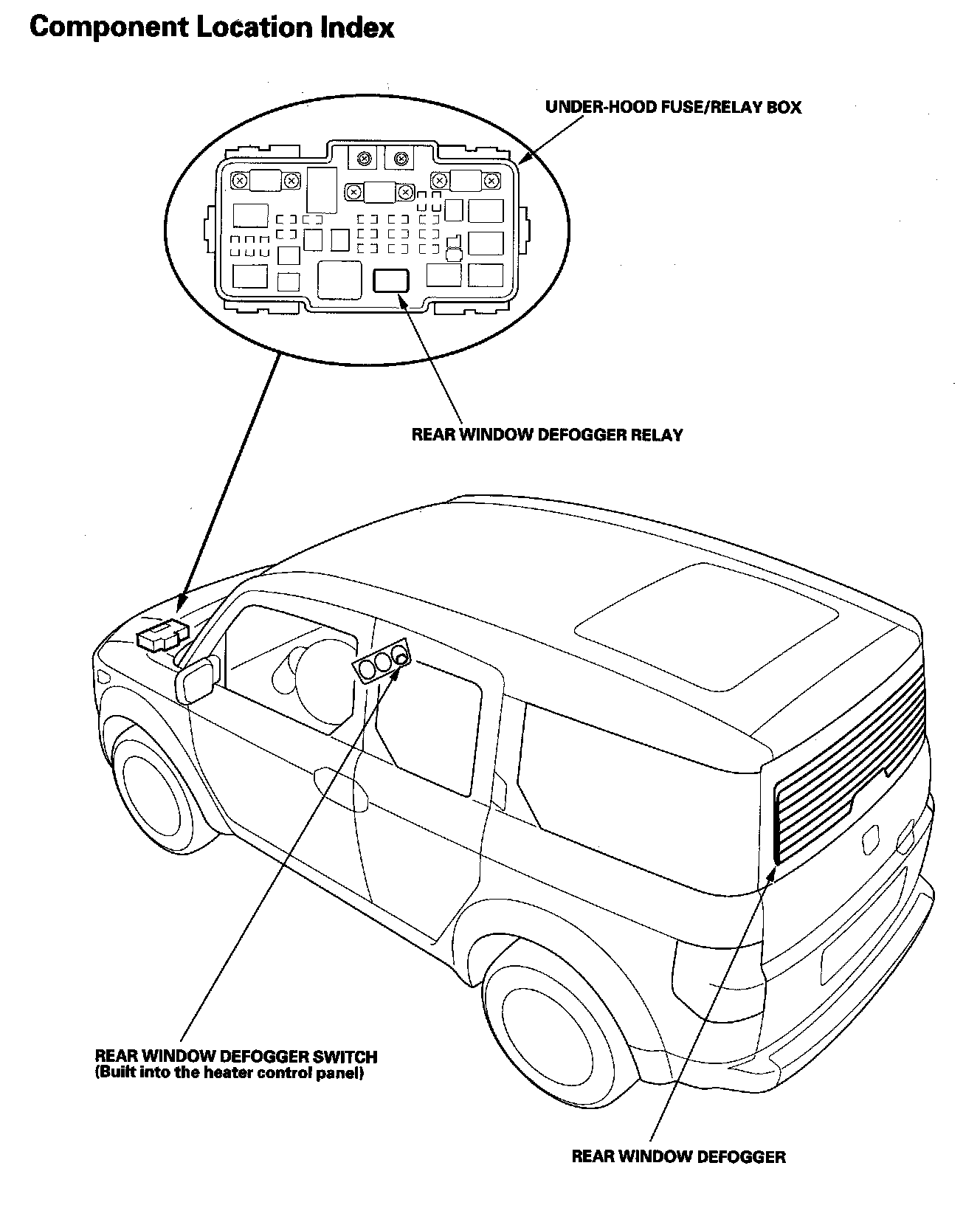

Rear Window Defogger Component Location Index:

Power Windows Component Location Index:

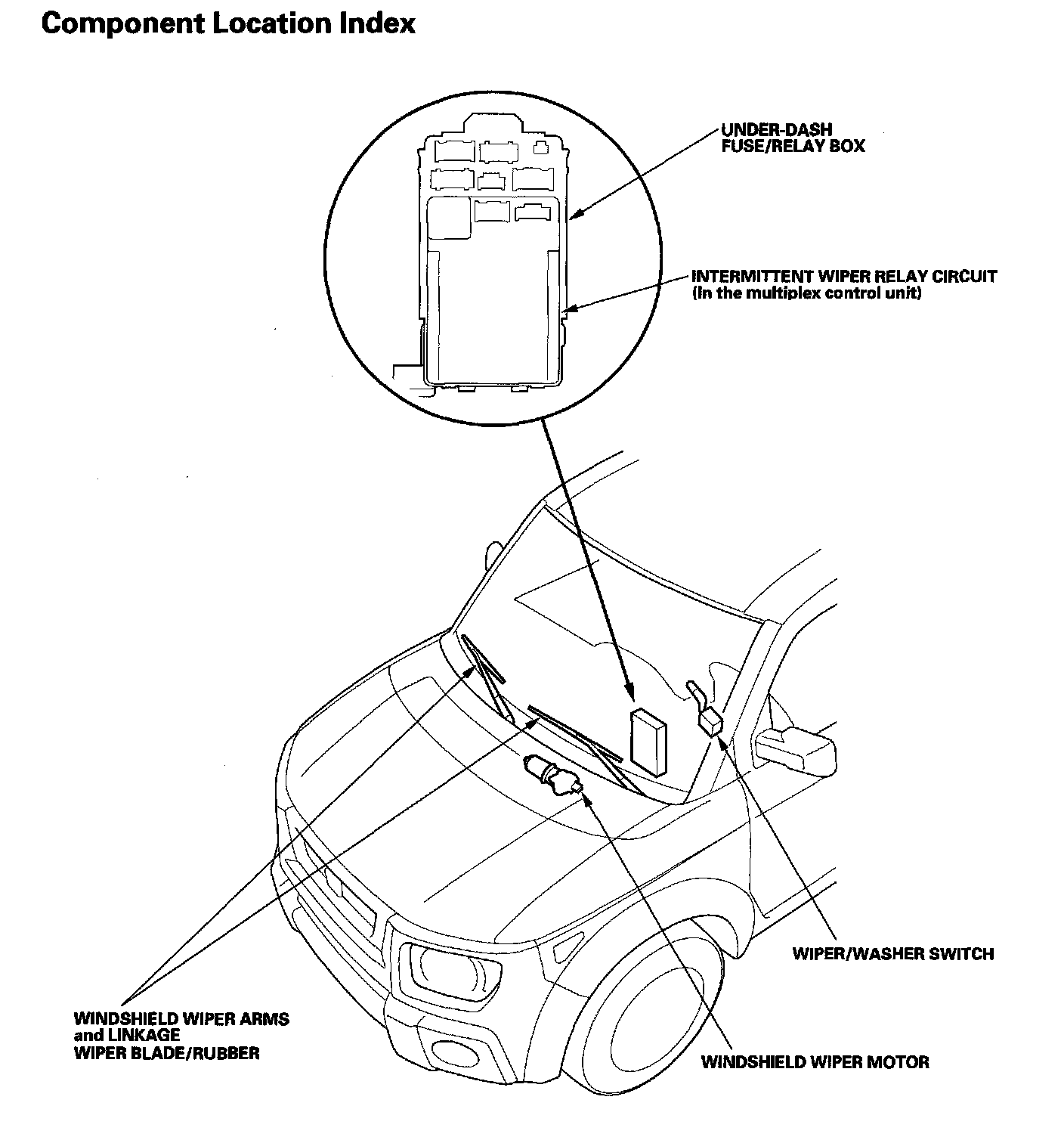

Wipers/Washers Component Location Index:

Relay And Control Unit Locations Engine Compartment:

Automatic Transmission Component Location Index:

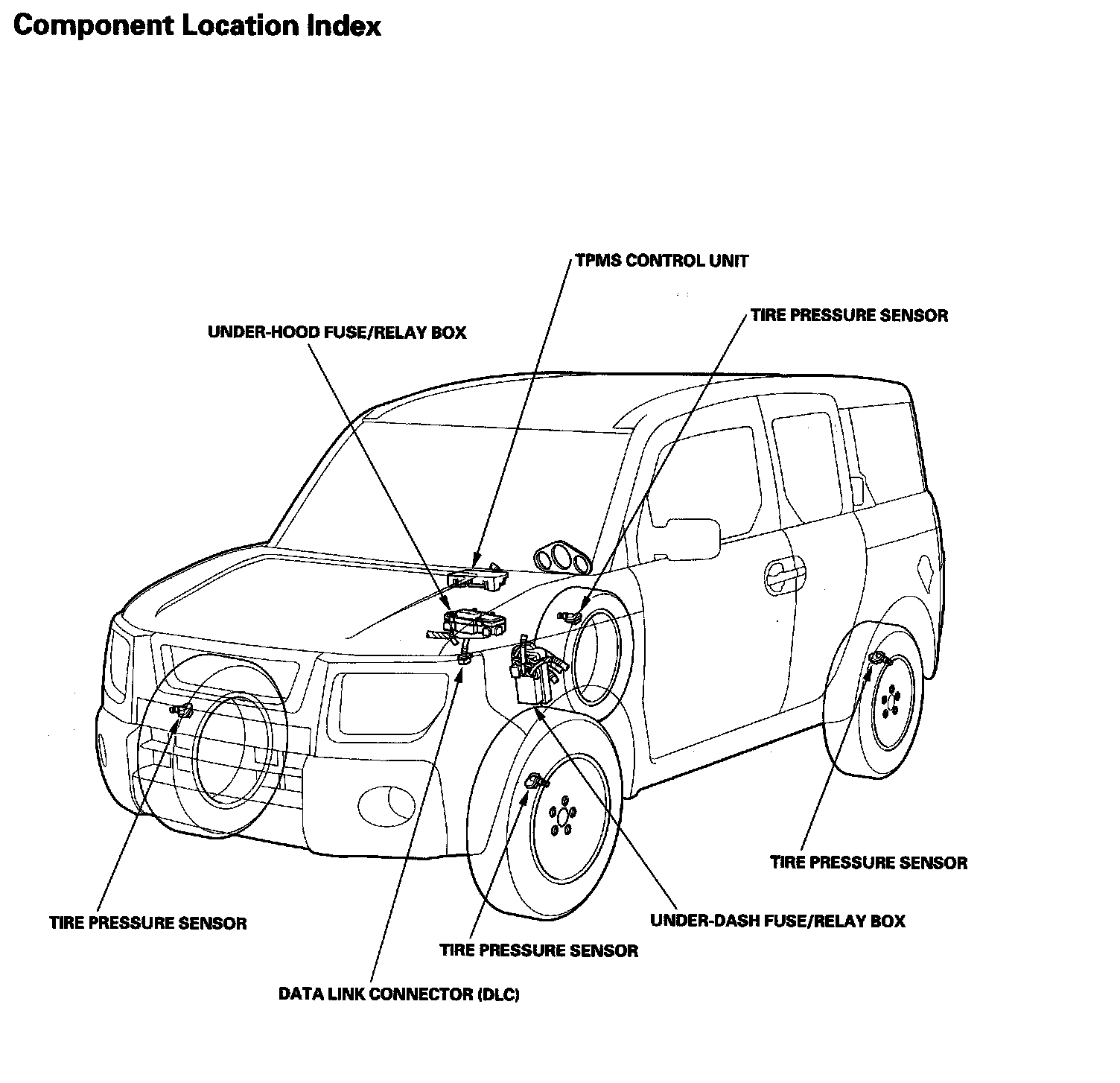

TPMS Component Location Index:

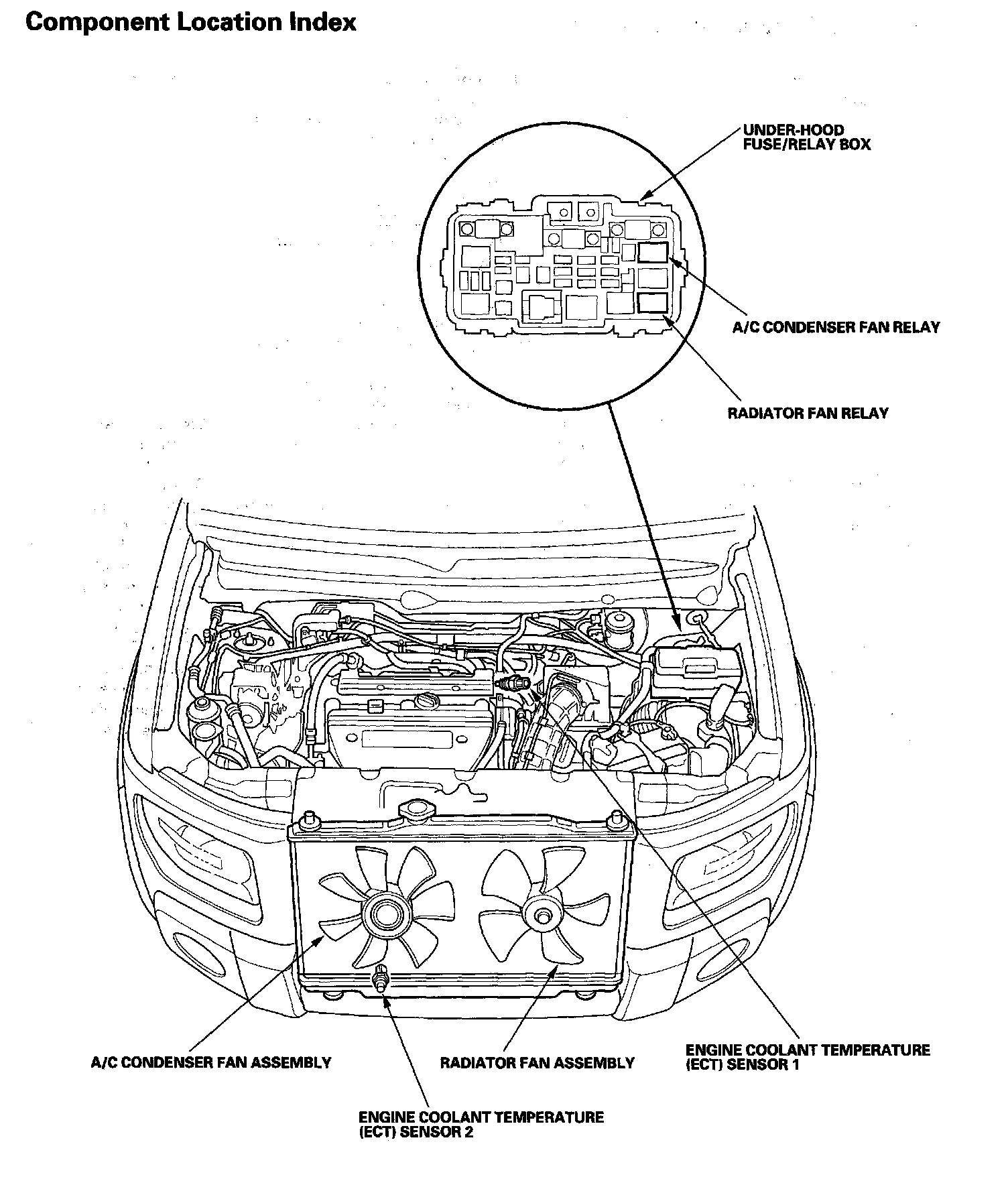

Fan Controls Component Location Index:

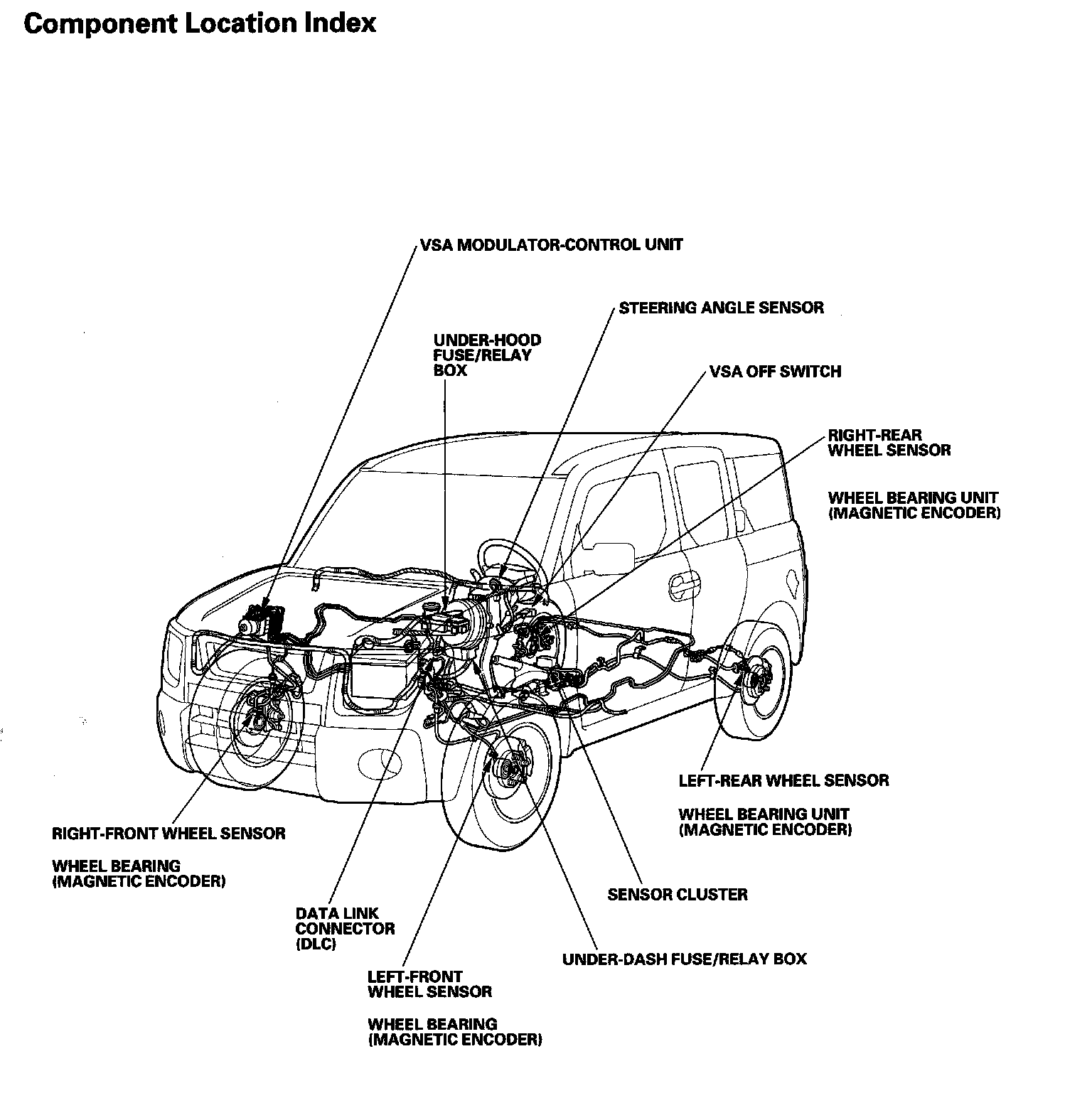

VSA System Component Location Index:
