Fluid Pressure Sensor/Switch: Locations

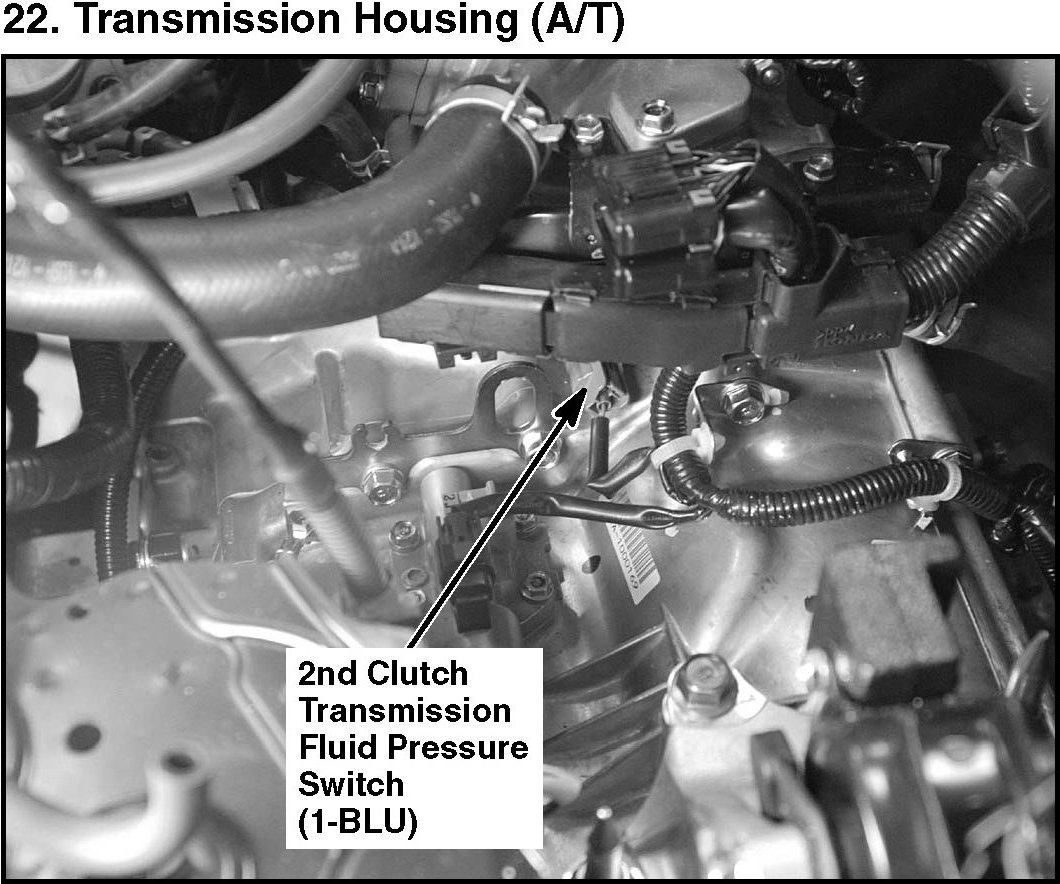

22. Transmission Housing (A/T):

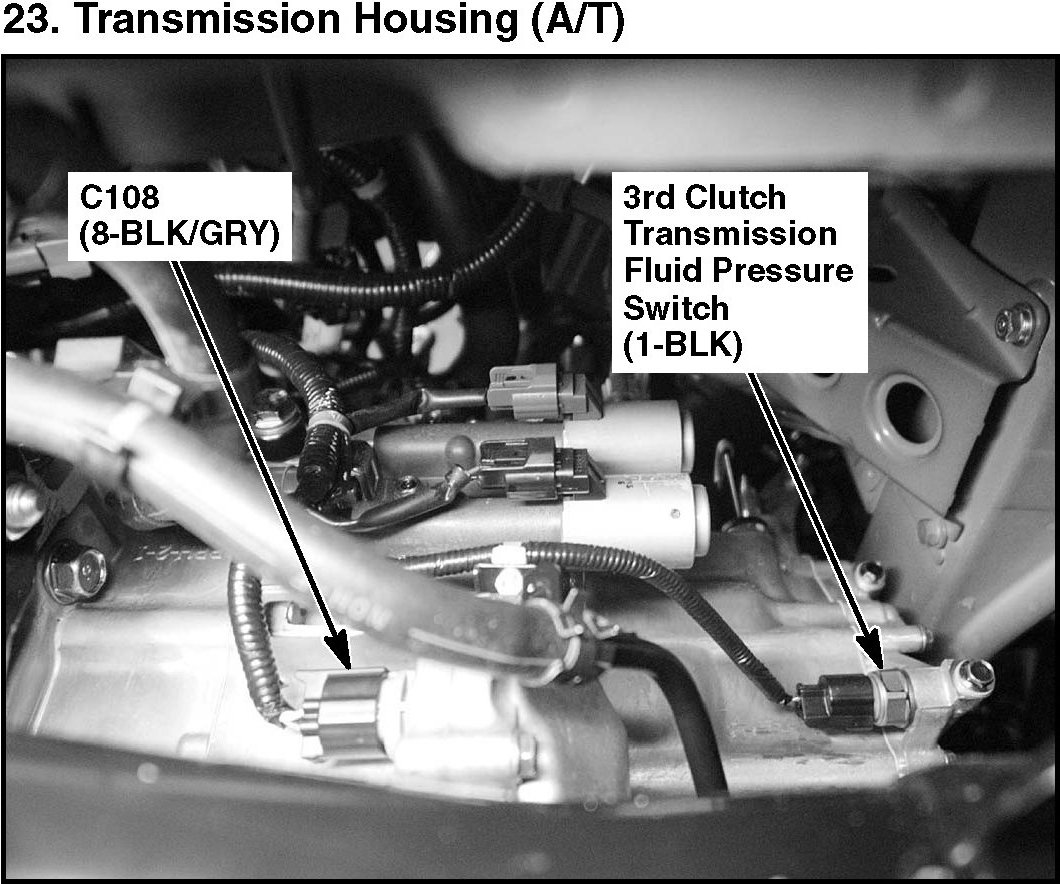

23. Transmission Housing (A/T):



Automatic Transmission Component Location Index:
