Regulator Valve Body

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the torque converter check valve, the lock-up shift valve, the 1st accumulator, and the 3rd accumulator.

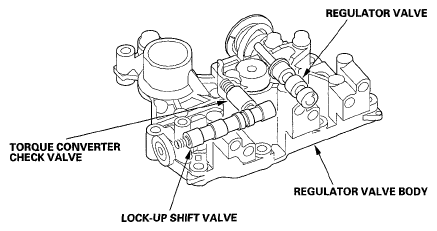

Fig 1: Identifying Regulator Valve Body With Associated Components
G05455148
