DTC CHECK/CLEAR
1. Check DTCs using the intelligent tester.
  1. Turn the ignition switch off.
  2. Connect the intelligent tester to the DLC3.
  3. Turn the ignition switch to the ON position.
  4. Read DTCs on the tester screen.
2. Clear the DTCs using the intelligent tester.
  1. Turn the ignition switch off.
  2. Turn the ignition switch to the ON position.
  3. Clear the DTCs by following the prompts on the tester screen.

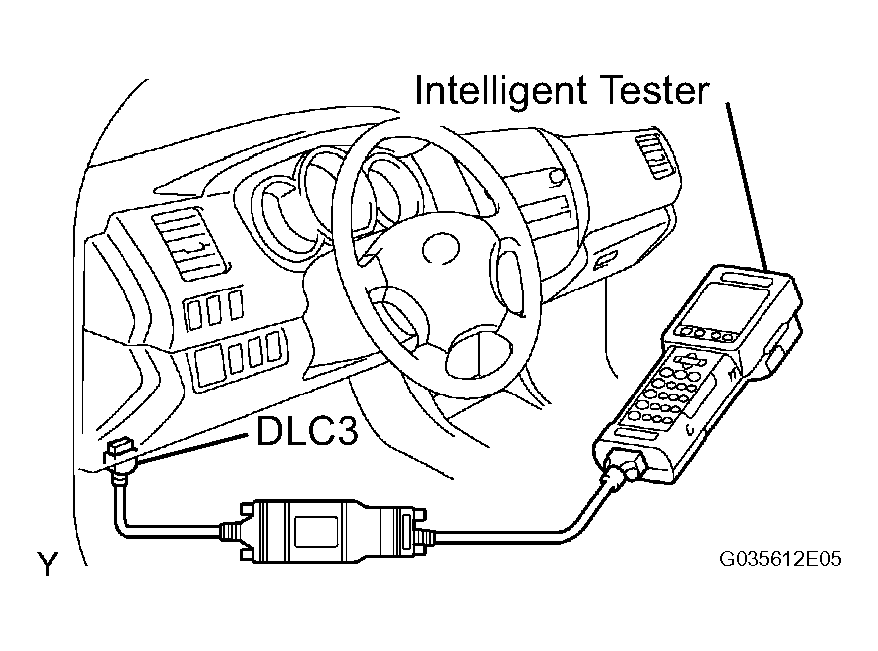

    Fig 1: Connecting Intelligent Tester To DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  HINT:
  - The intelligent tester has a "Snapshot" function which records the monitored data.
  - Refer to the intelligent tester operator's manual for further details.
