Shift Interlock Switch

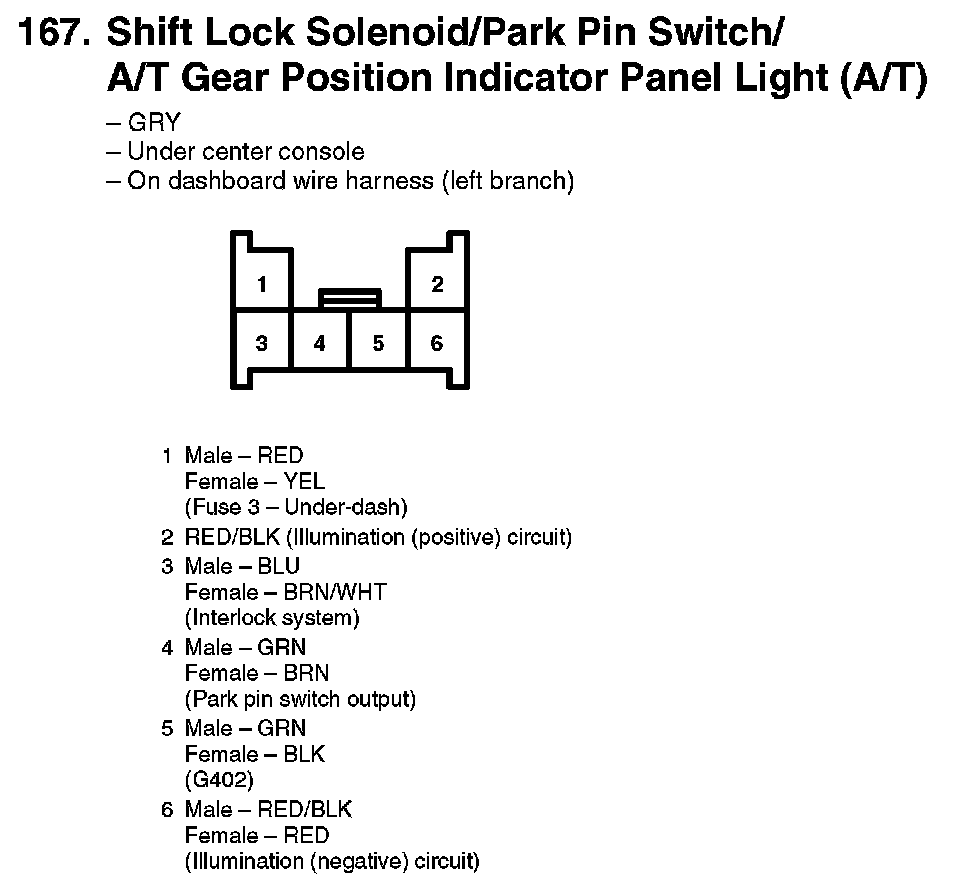

167. Shift Lock Solenoid/Park Pin Switch/A/T Gear Position Indicator Panel Light (A/T):

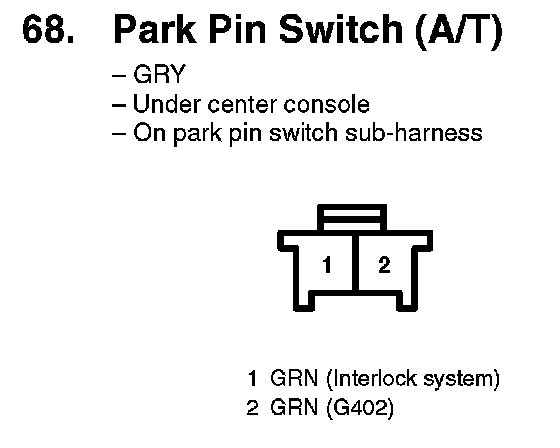

68. Park Pin Switch (A/T):
