Component Locations

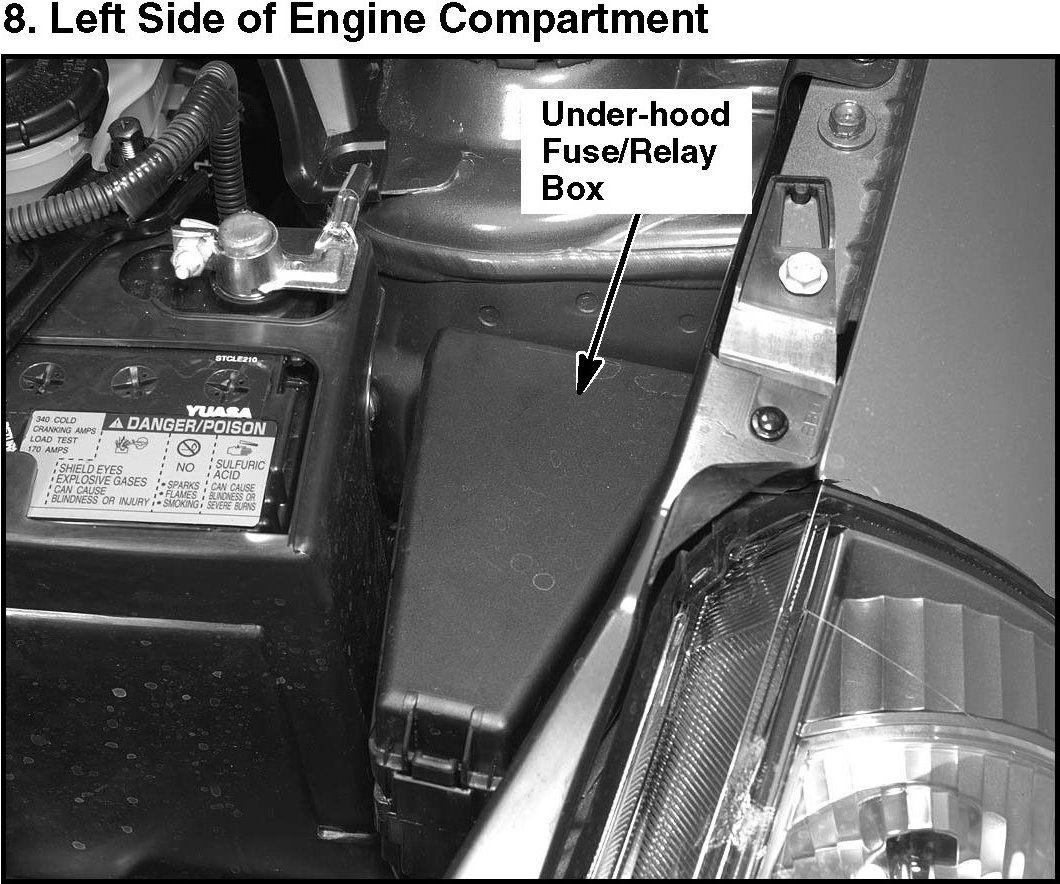

8. Left Side Of Engine Compartment:

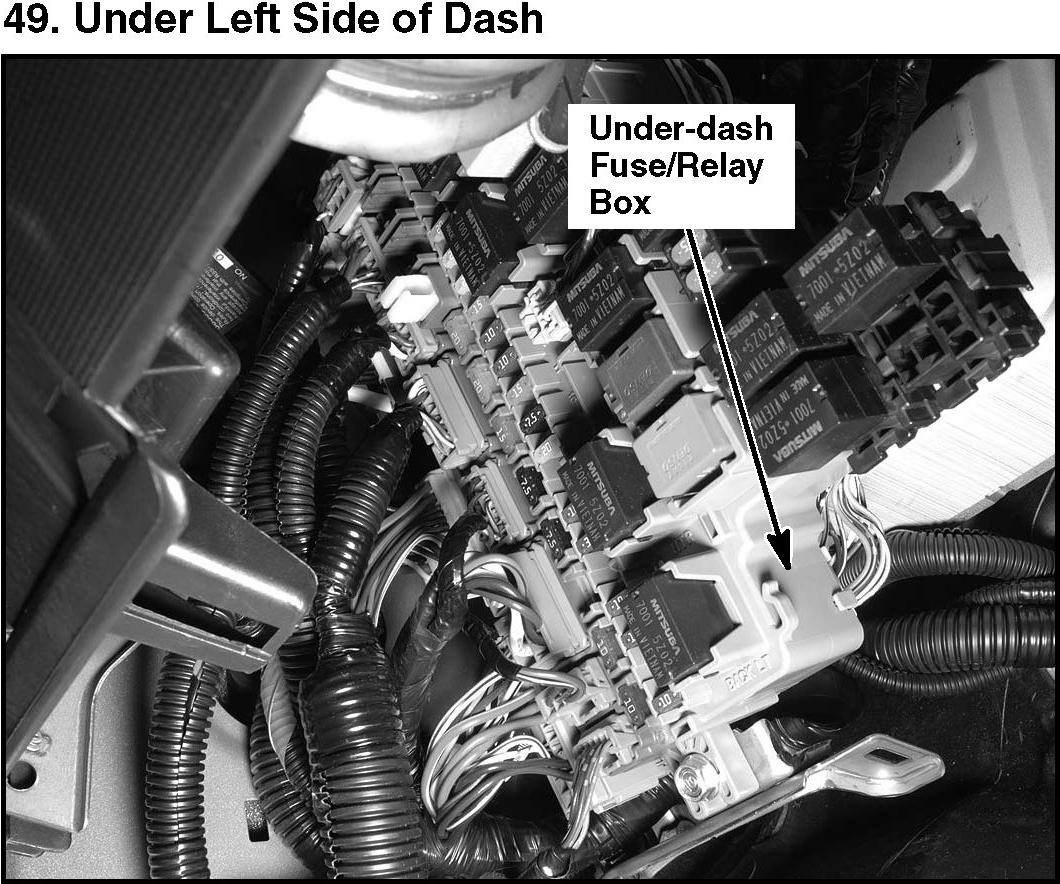

49. Under Left Side Of Dash:

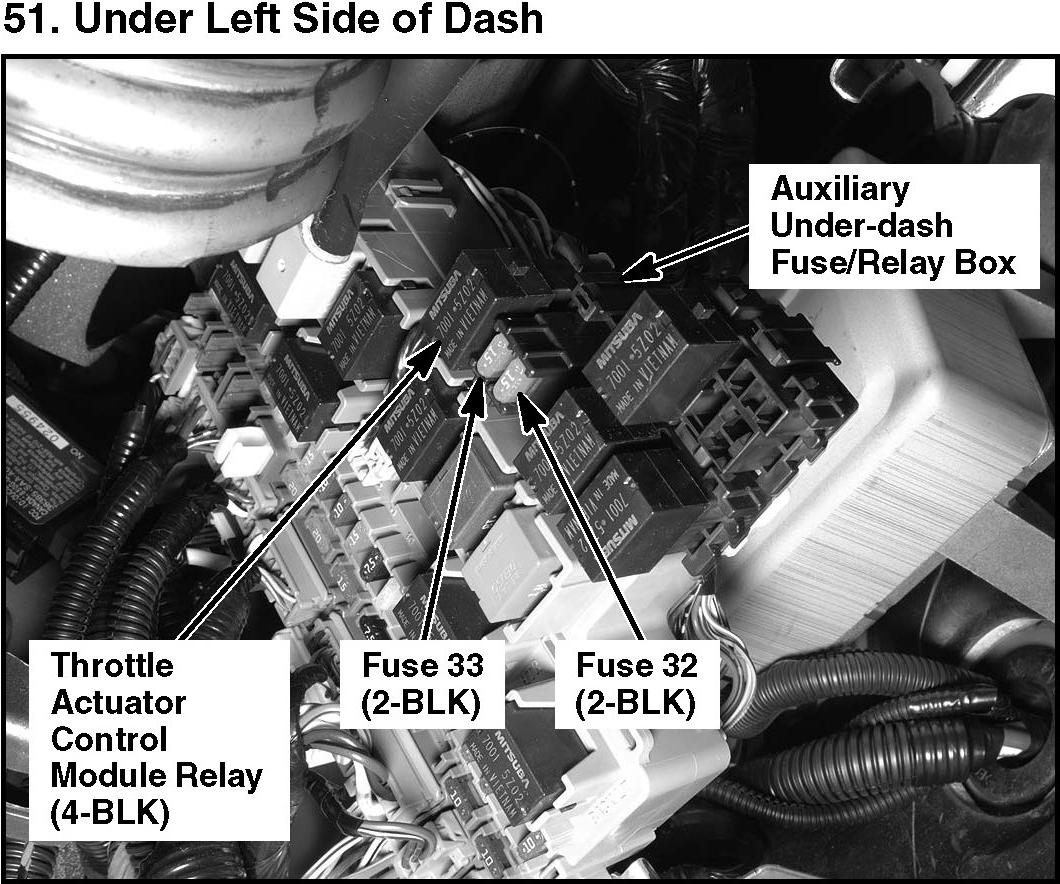

51. Under Left Side Of Dash:

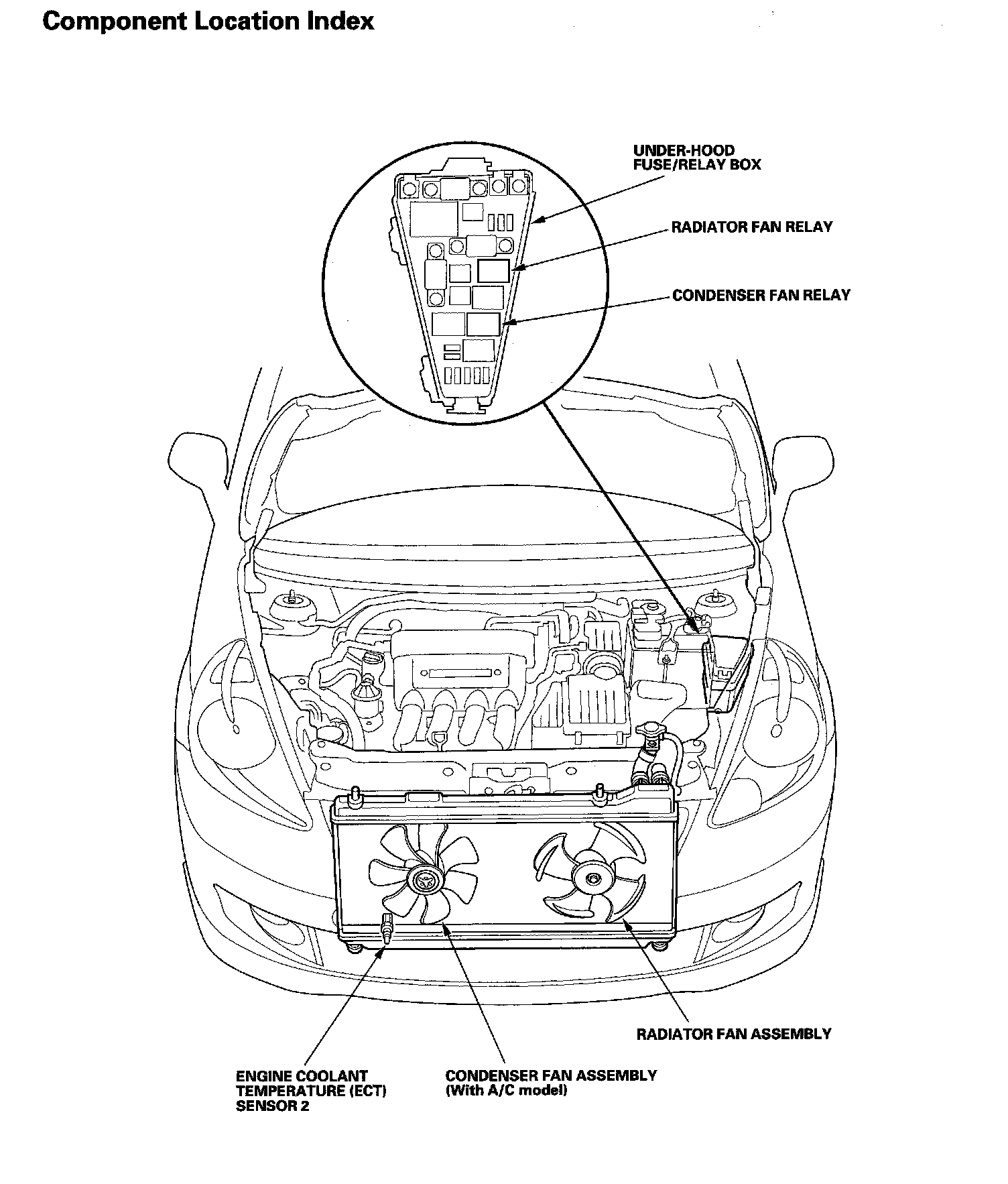

Fan Controls Component Location Index:

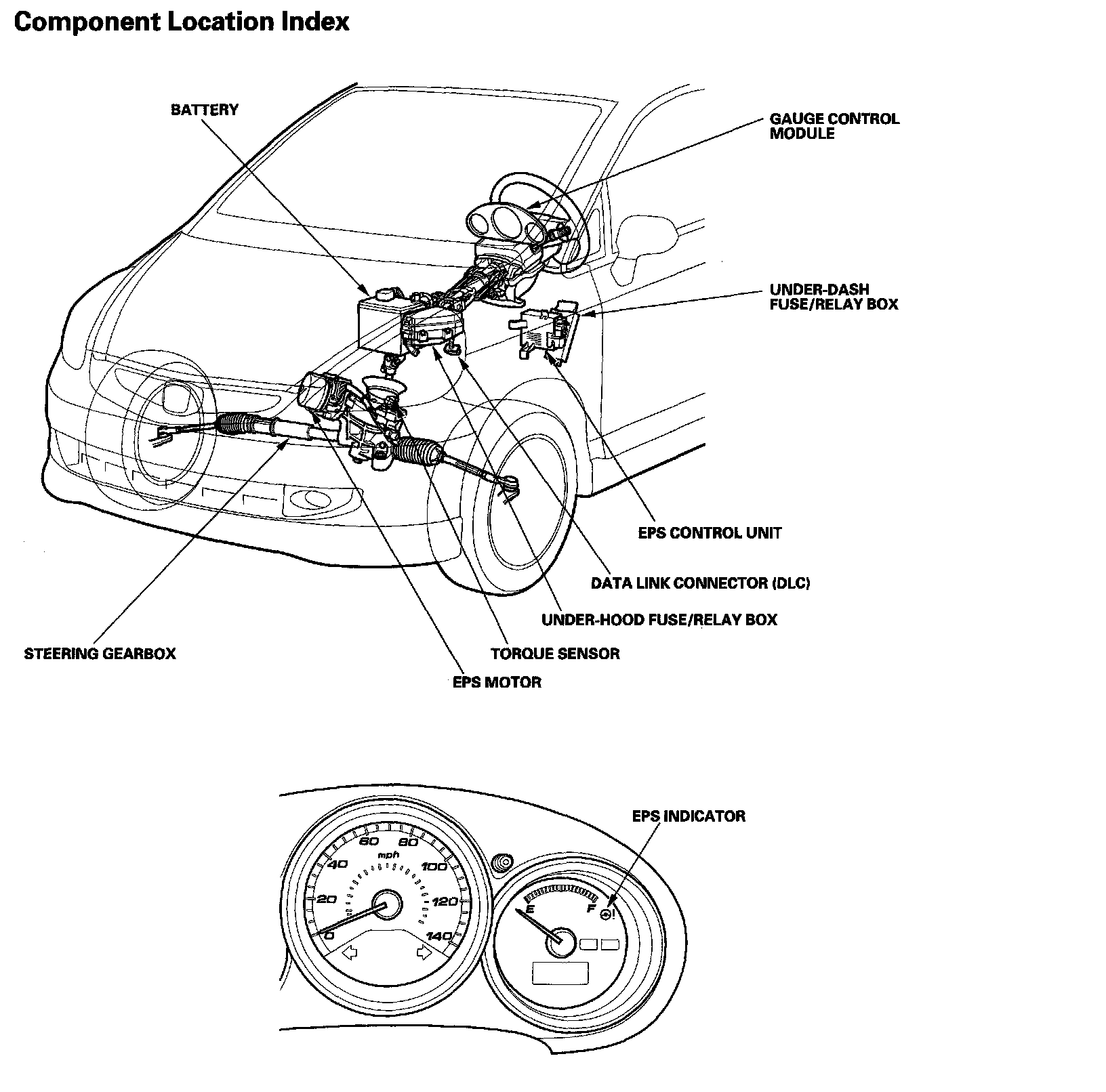

Electrical Power Steering (EPS) Component Location Index:

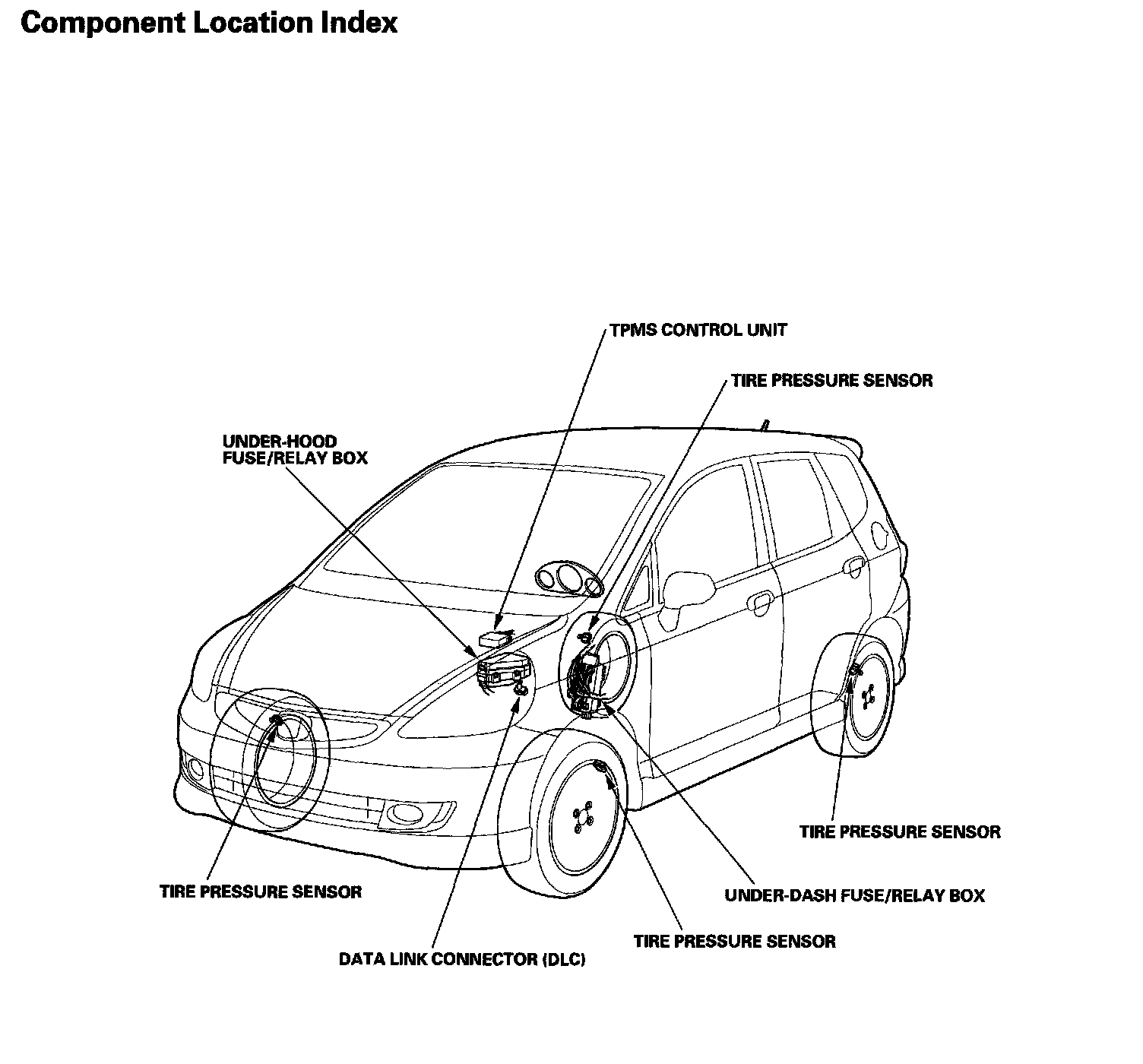

TPMS (Tire Pressure Monitoring System) Component Location Index:

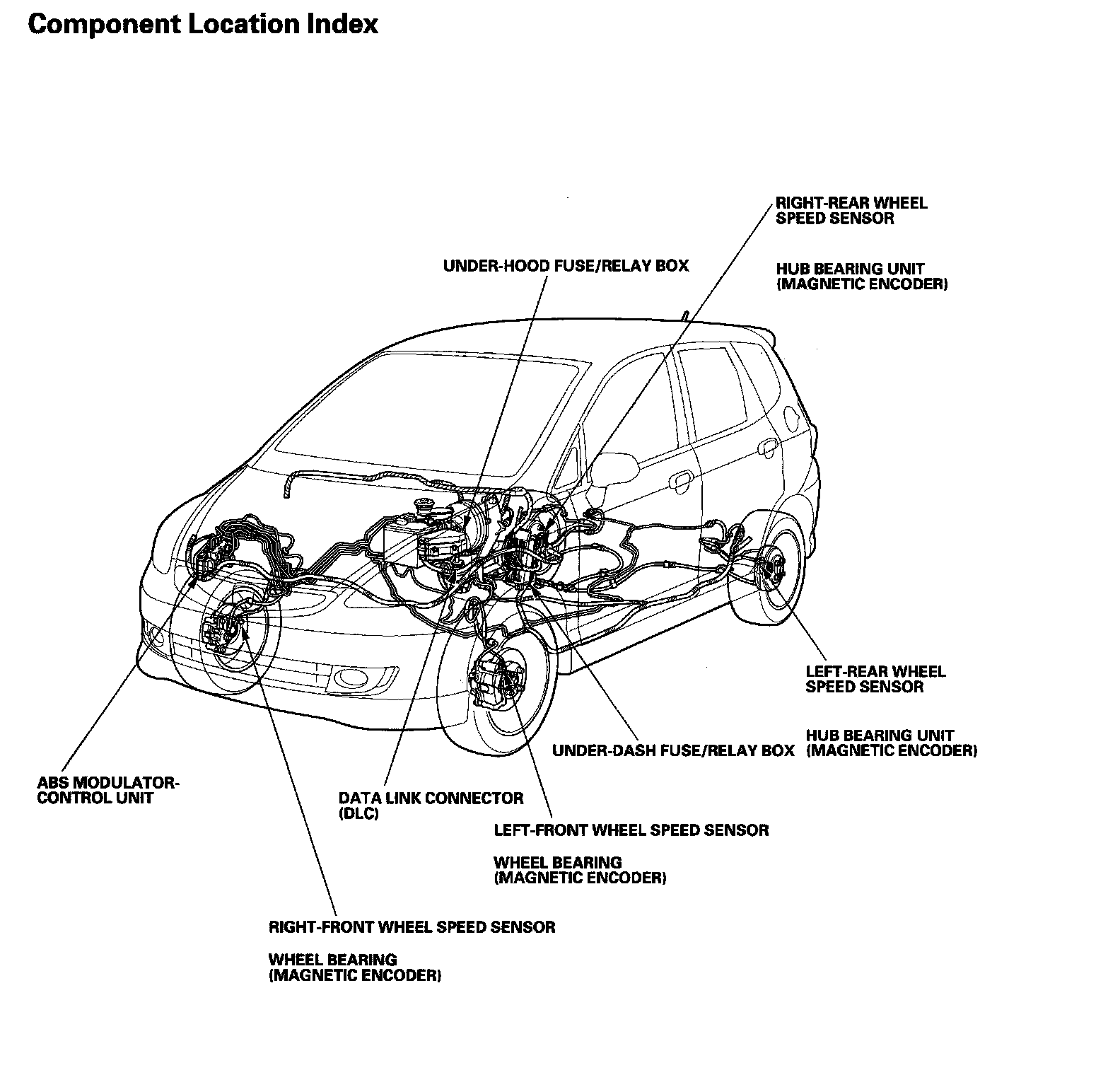

Antilock Brake System Components Component Location Index:

Heating Component Location Index:

Heating/Air Conditioning Component Location Index:

Relay And Control Unit Locations Engine Compartment:

Relay And Control Unit Locations Dashboard:

Keyless/Power Door Locks/Security System Component Location Index:

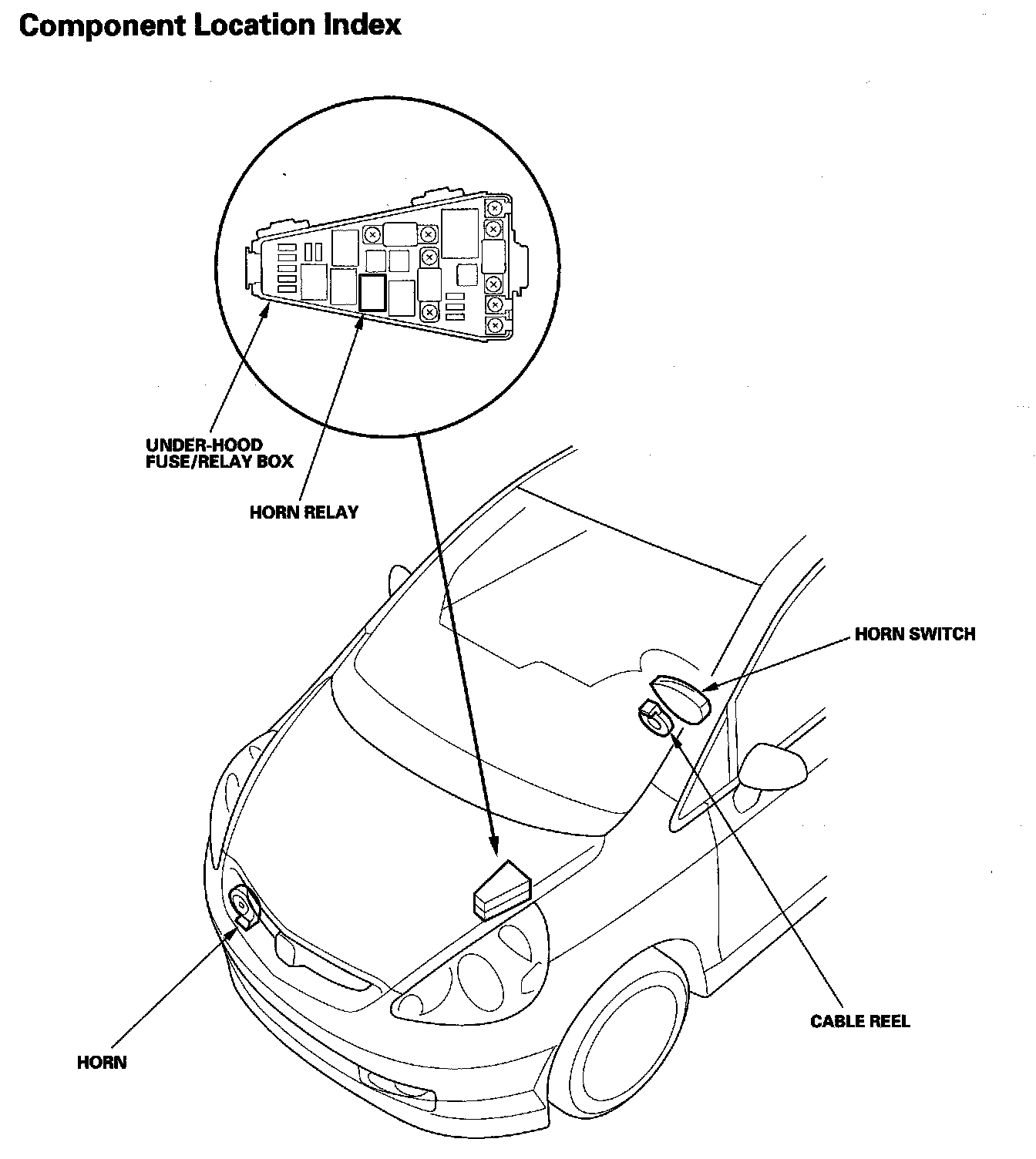

Horns Component Location Index:

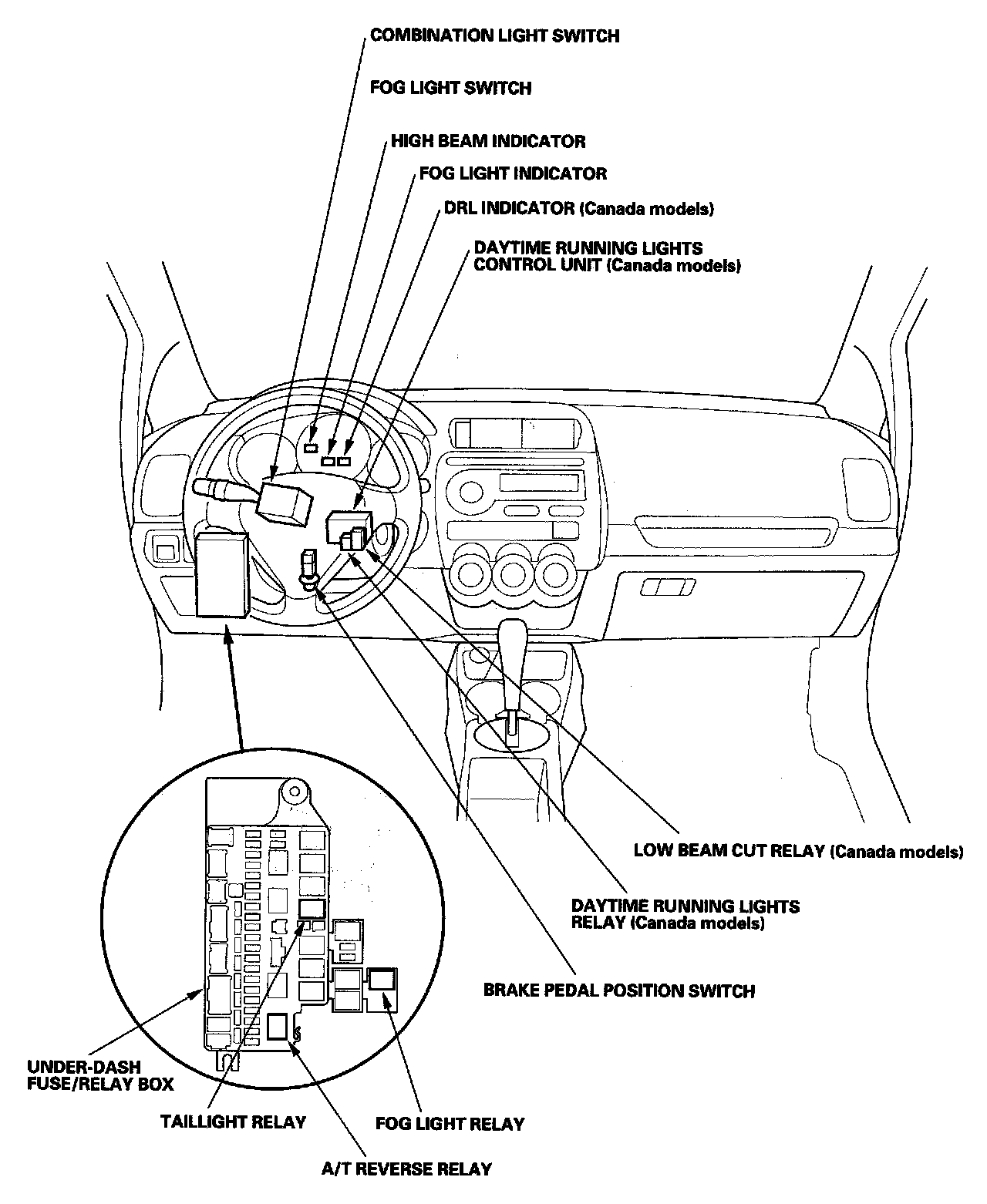

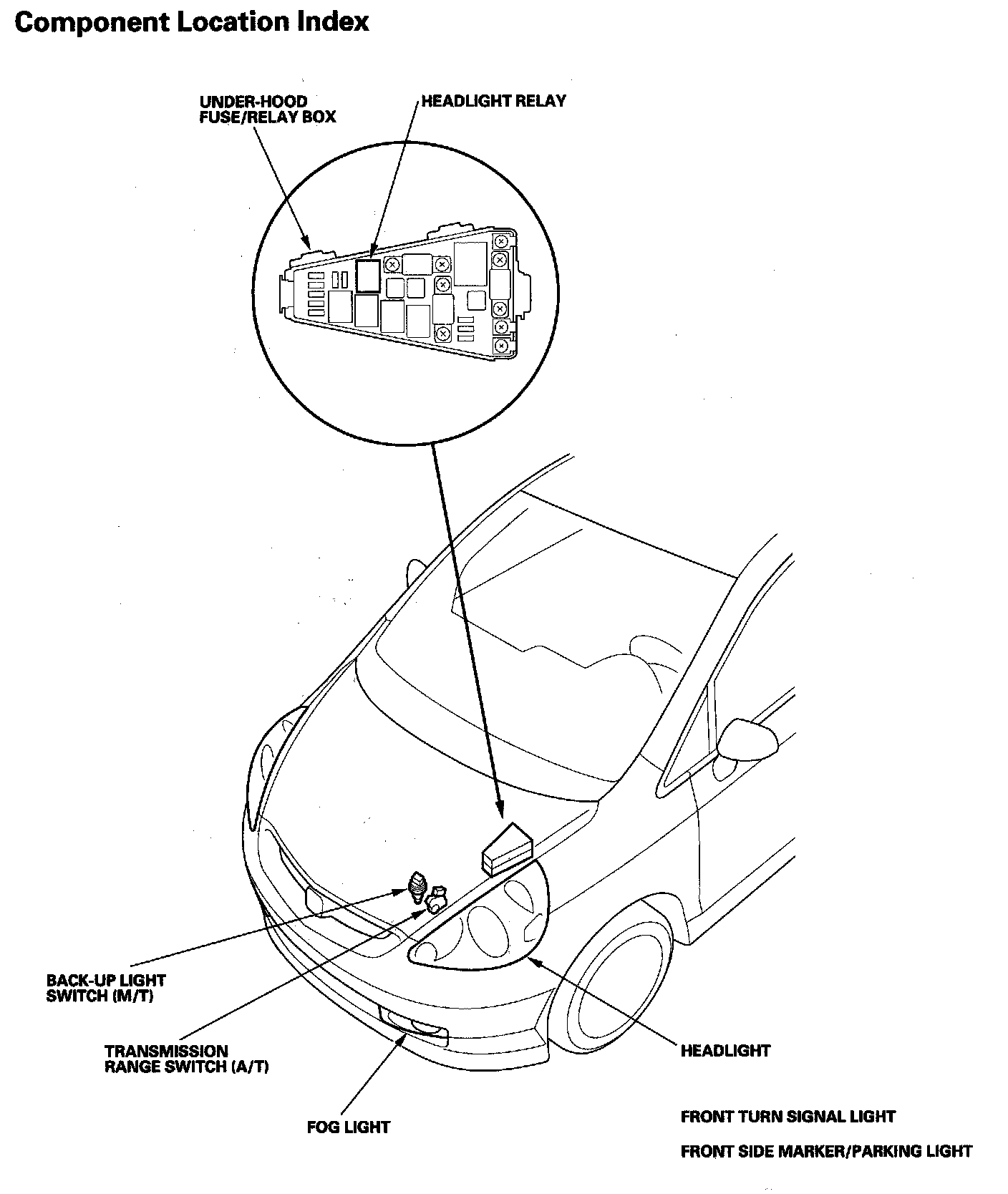

Exterior Lights Component Location Index:

Exterior Lights Component Location Index:

Power Windows Component Location Index:

Starting System Component Location Index:

Charging System Component Location Index:
