General Specifications

Brake disc runout
Service limit 0.04 mm (0.0016 in.)

Brake disc thickness
Standard 20.9-21.1 mm (0.82-0.83 in.)
Max. refinishing limit 19.0 mm (0.75 in.)

Brake disc parallelism
Brake disc parallelism 0.015 mm (0.0006 in.) max.

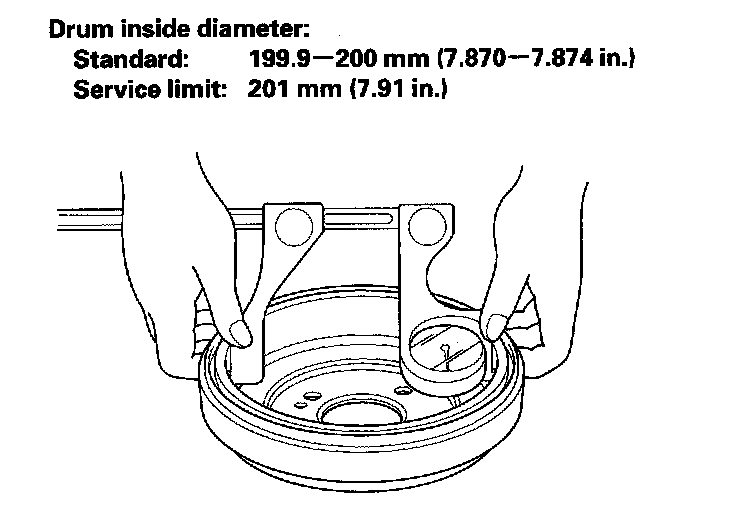

Brake Drum
