Power Tailgate Control Unit Connector View (Touring; '09-'10: EX-L)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

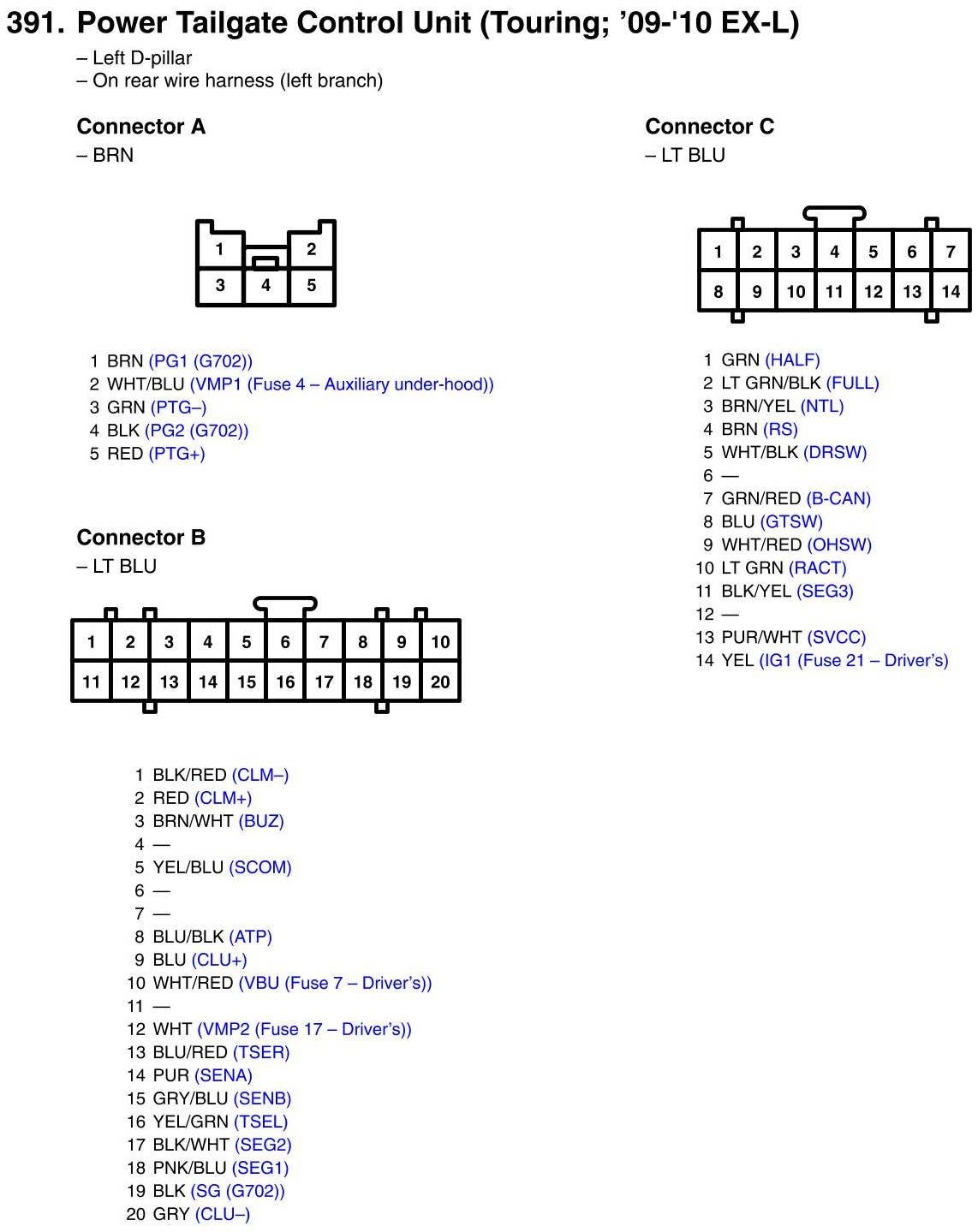

Power Tailgate Control Unit Connector View (Touring; '09-'10: EX-L)
