Alarm Module: Locations

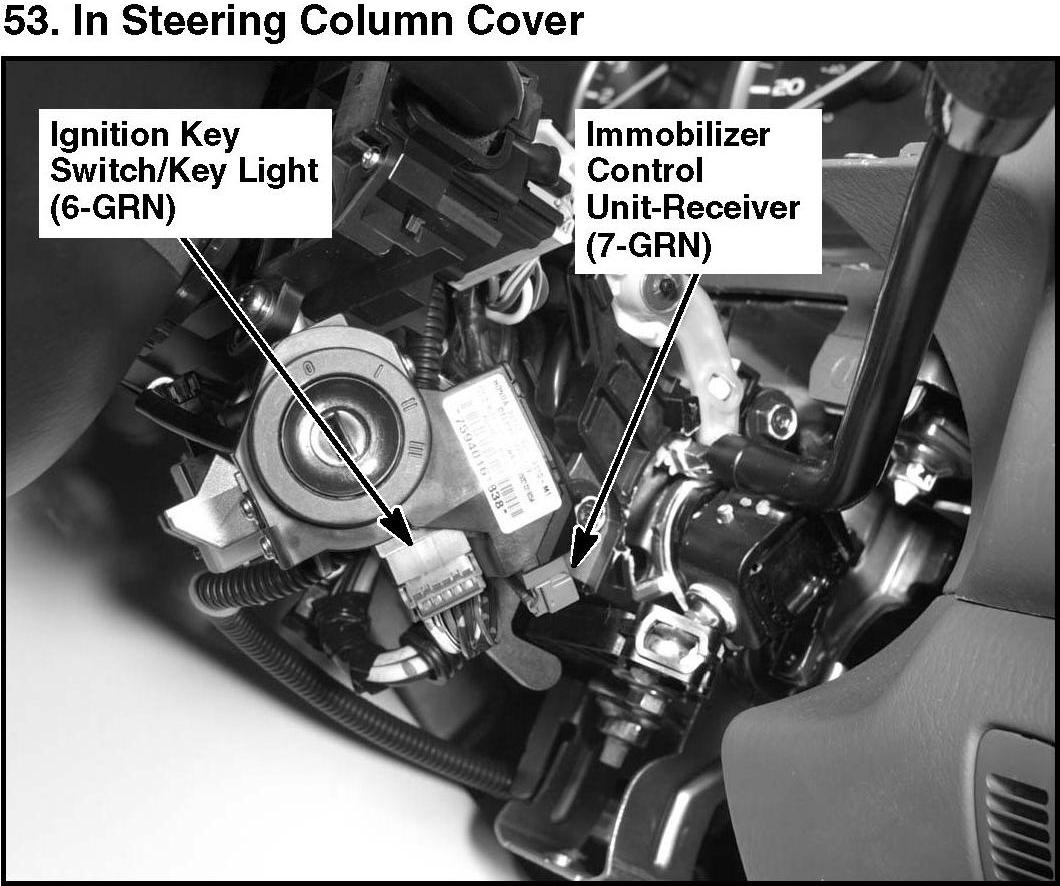

53. In Steering Column Cover:

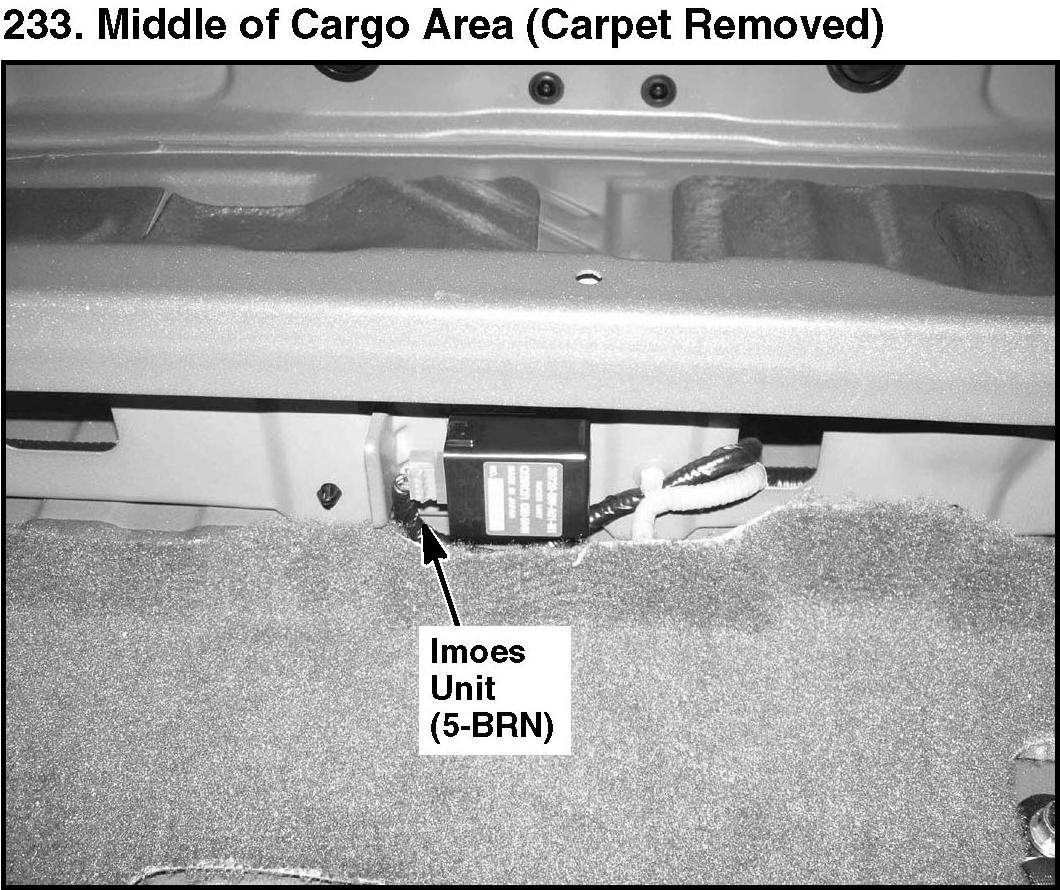

233. Middle Of Cargo Area (Carpet Removed):

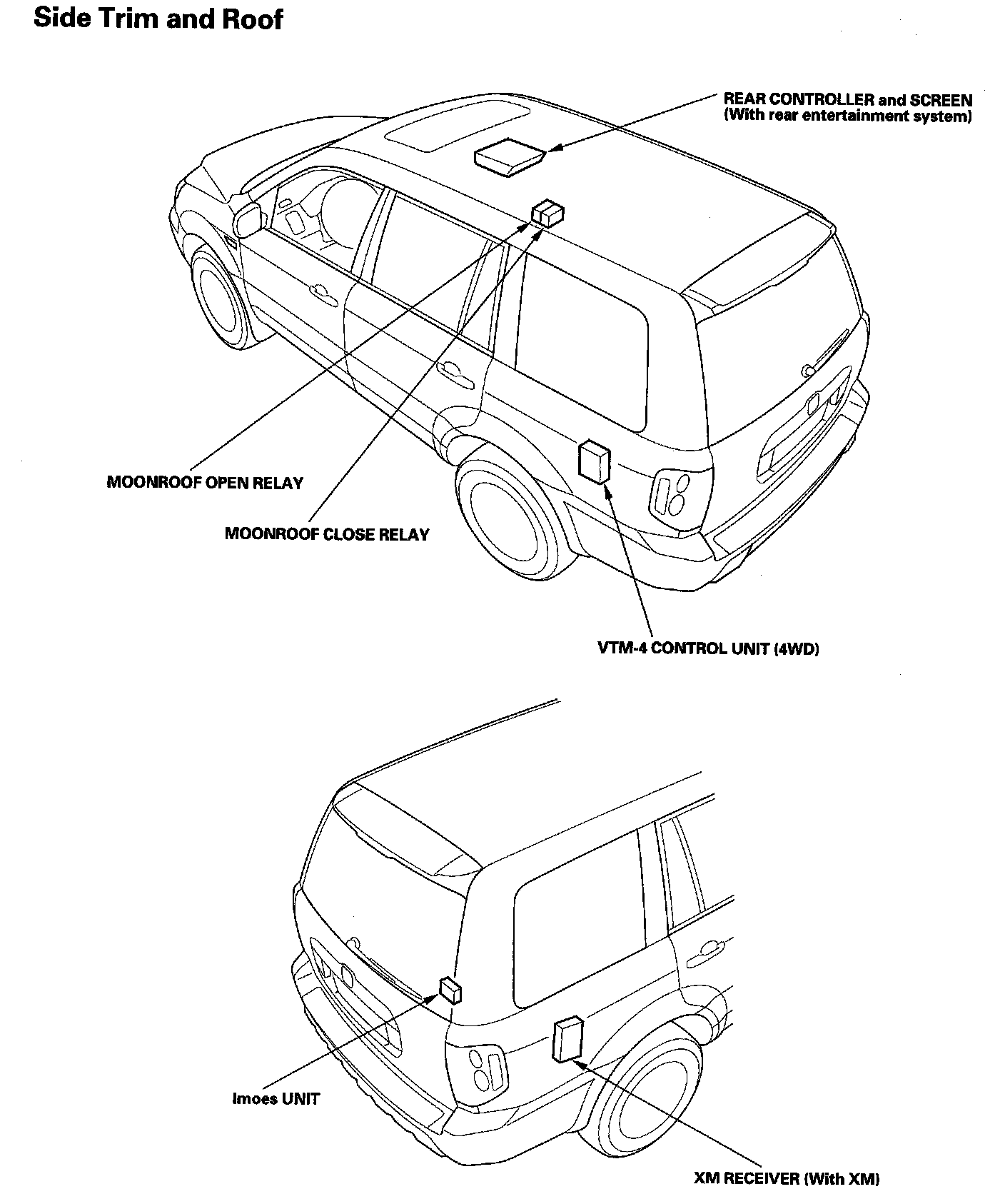

Relay And Control Unit Locations Side Trim And Roof:



Relay And Control Unit Locations Dashboard:

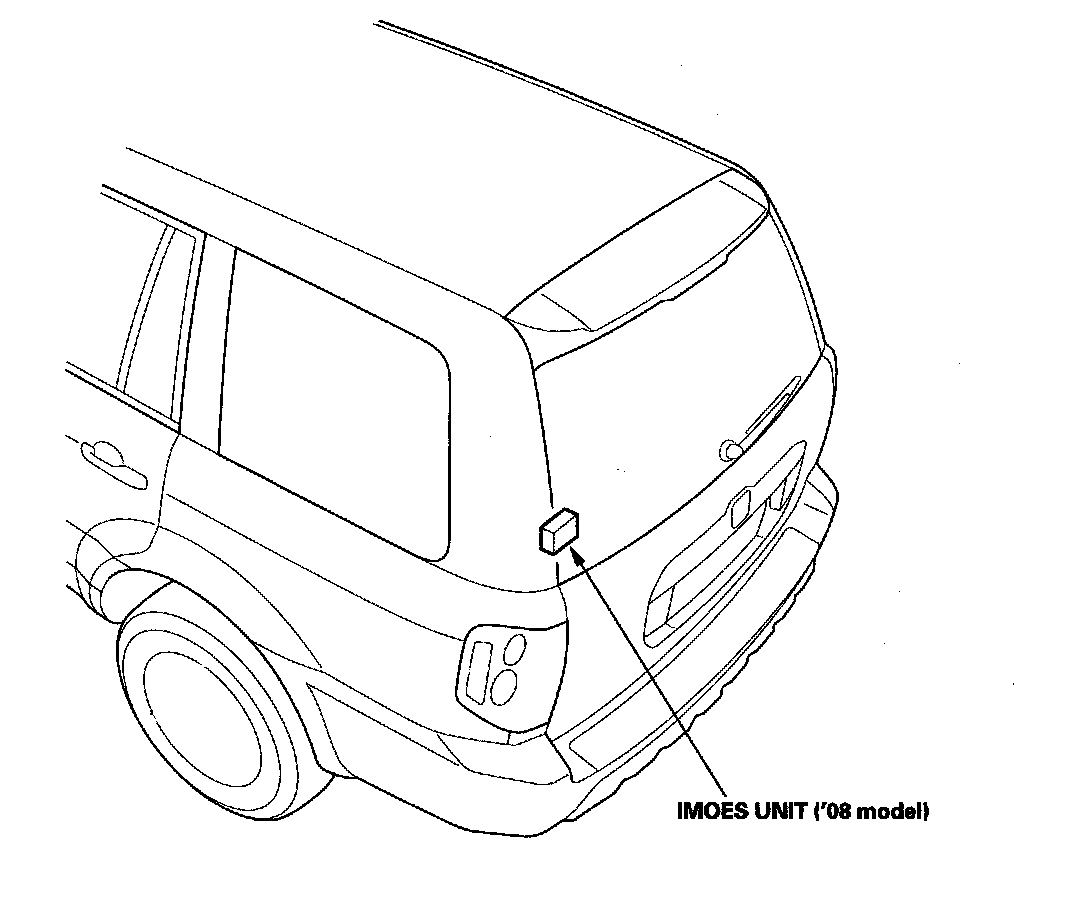

Immobilizer System Component Location Index:



Immobilizer System Component Location Index:
