Cruise Control Set/Decel, Resume/Accel, Cancel Switch Test/Replacement

Cruise Control Set/decel, Resume/accel, Cancel Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures, in the SRS before doing repairs or service.
1. Remove the driver's airbag.

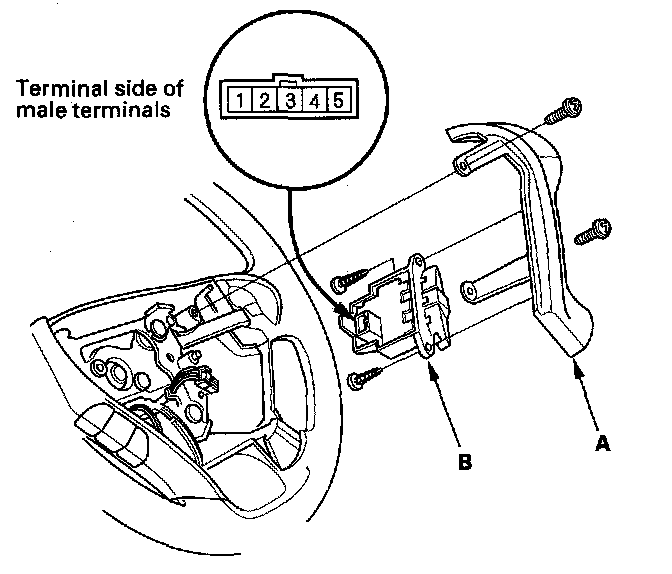

2. Remove the cover (A), then remove the set/decel, resume/accel, cancel switch (B).

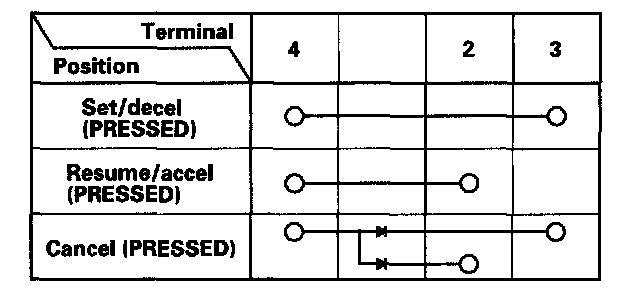

3. Check for continuity between the terminals in each switch position according to the table.
- If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on this switch circuit.
- If there is no continuity in one or both positions, replace the switch.
