Navigation Display

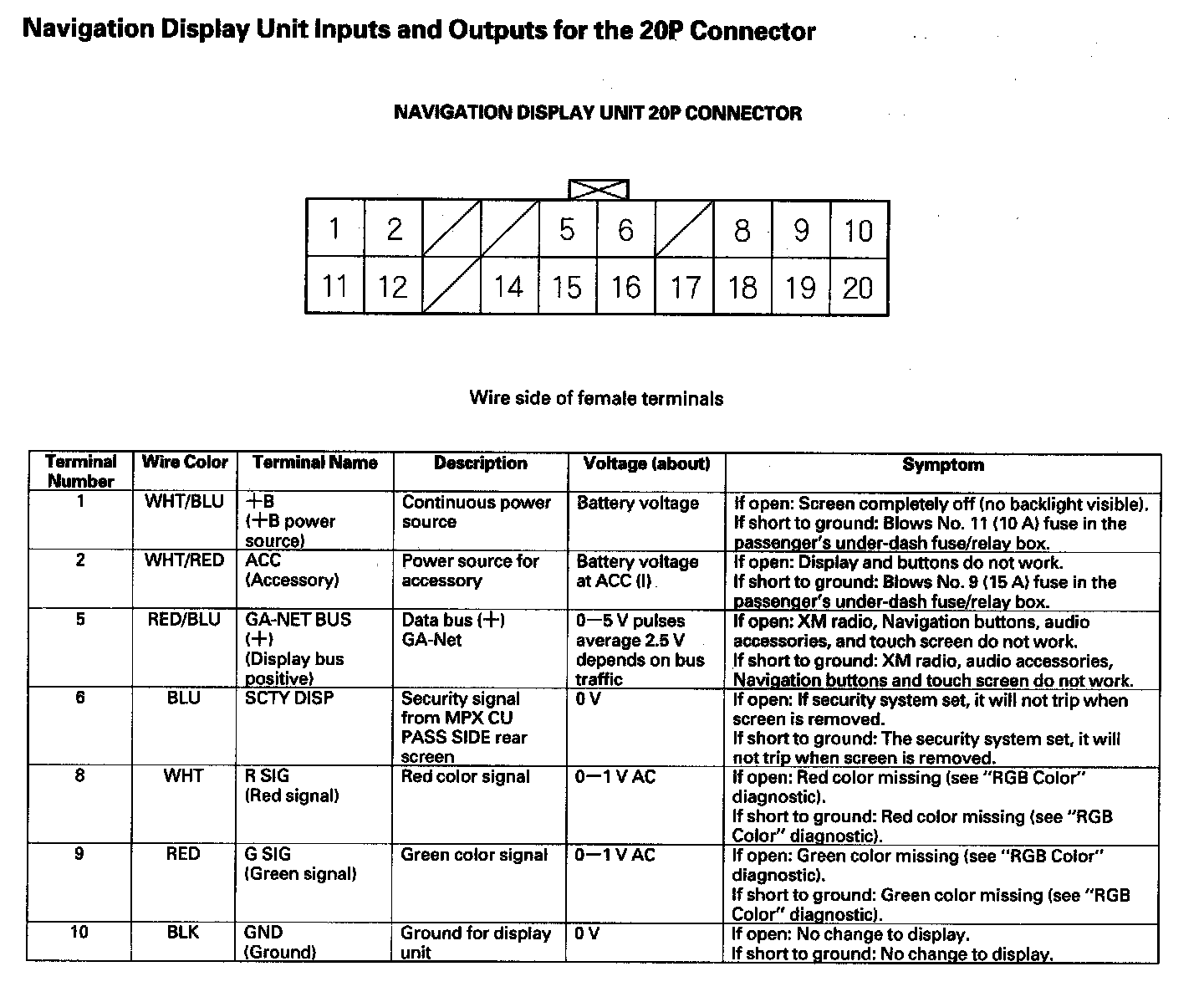

Navigation Display Unit Inputs And Outputs For The 20P Connector (Part 1):

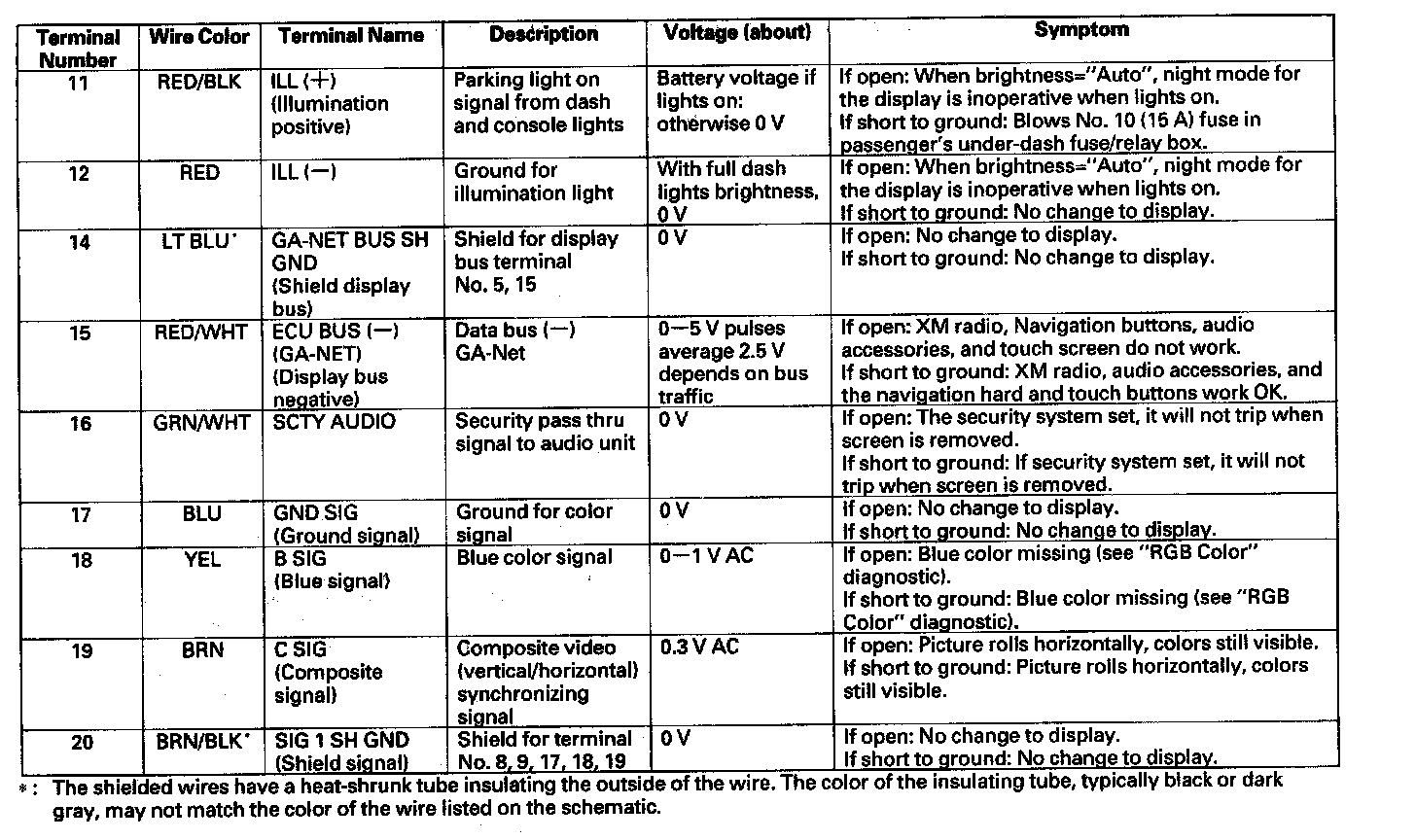

Navigation Display Unit Inputs And Outputs For The 20P Connector (Part 2):
