ECT Sensor 1 Replacement

ECT Sensor 1 Replacement
1. Drain the engine coolant.
2. Remove engine cover.

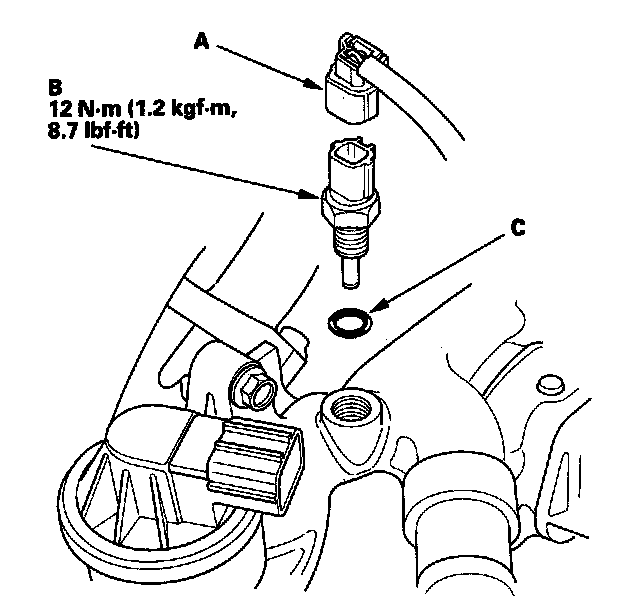

3. Disconnect the ECT sensor 1 2P connector (A).






4. Remove ECT sensor 1 (B).
5. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve open.
