Connector Views

175. Multiplex Control Inspection Connector:



334. Multiplex Control Unit, Door:

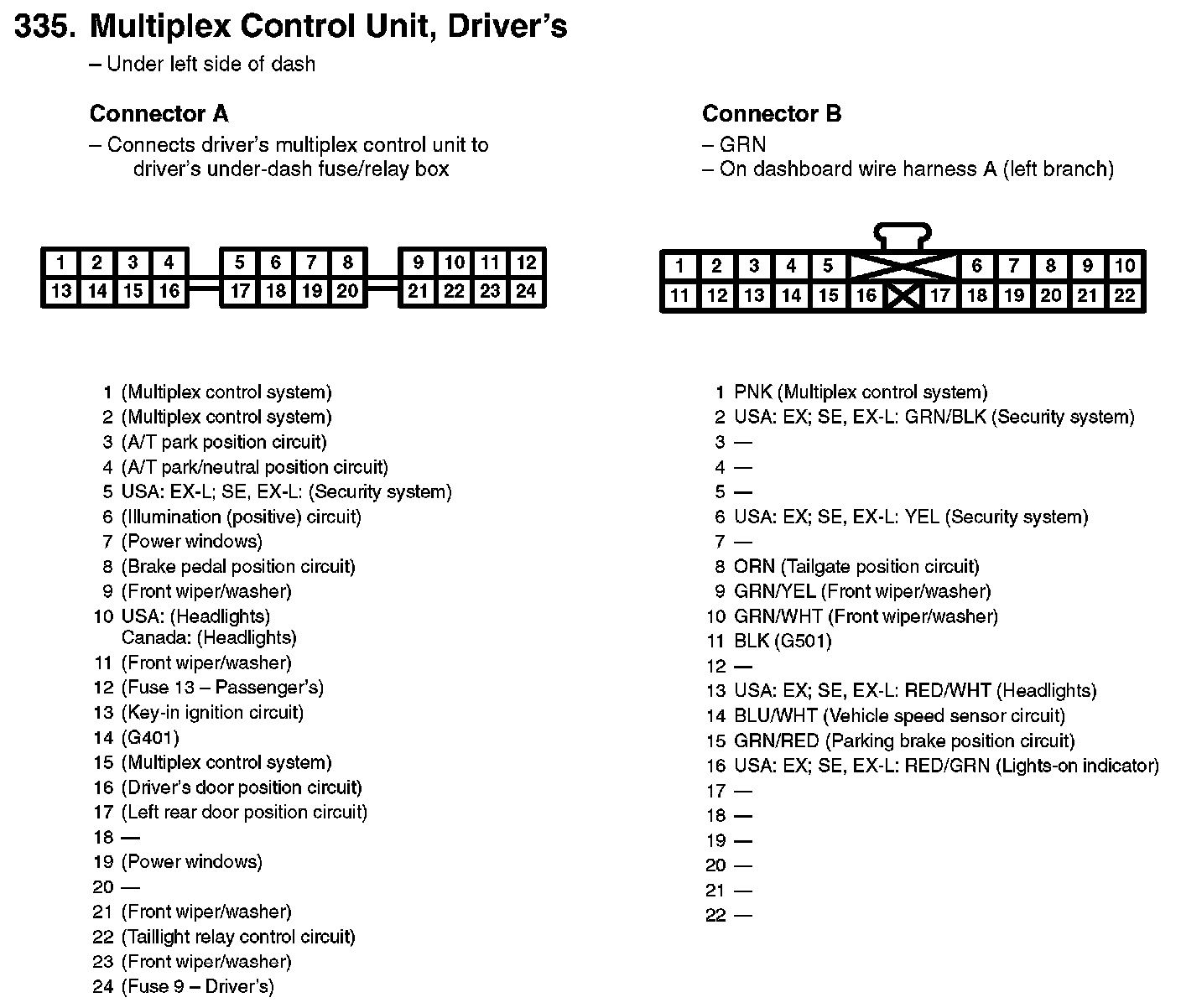

335. Multiplex Control Unit, Driver's:

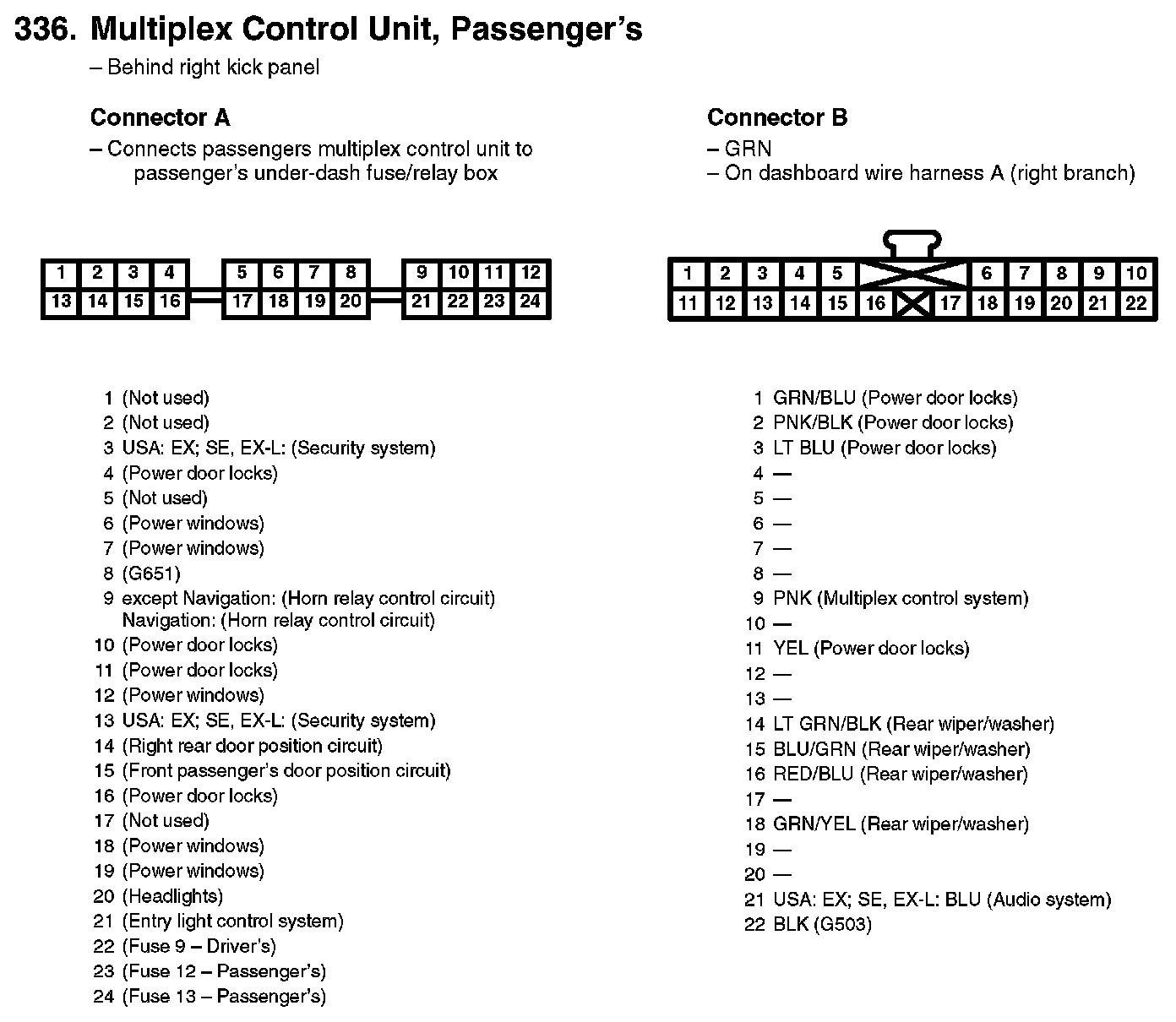

336. Multiplex Control Unit, Passenger's:
