Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

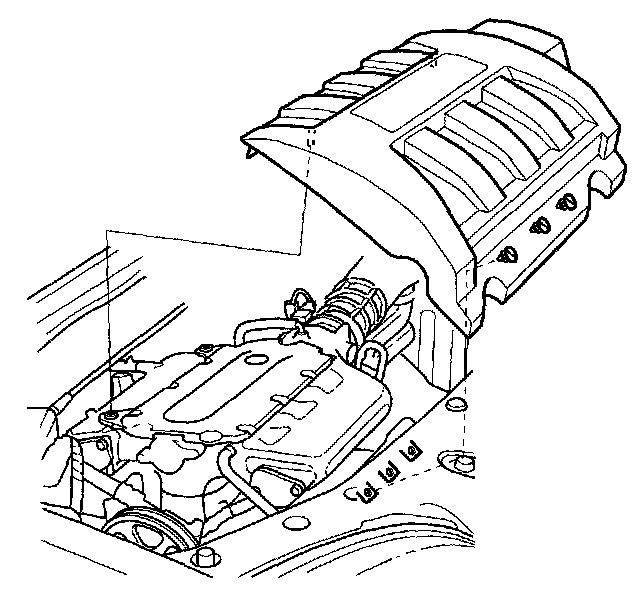

1. Remove the engine cover.






2. Disconnect the ignition coil connectors (A), then remove the front bank ignition coils (B).






3. Disconnect the ignition coil connectors (A), then remove the rear bank ignition coils (B).






4. Install the ignition coils in the reverse order of removal.
