Transmission Control Systems: Locations

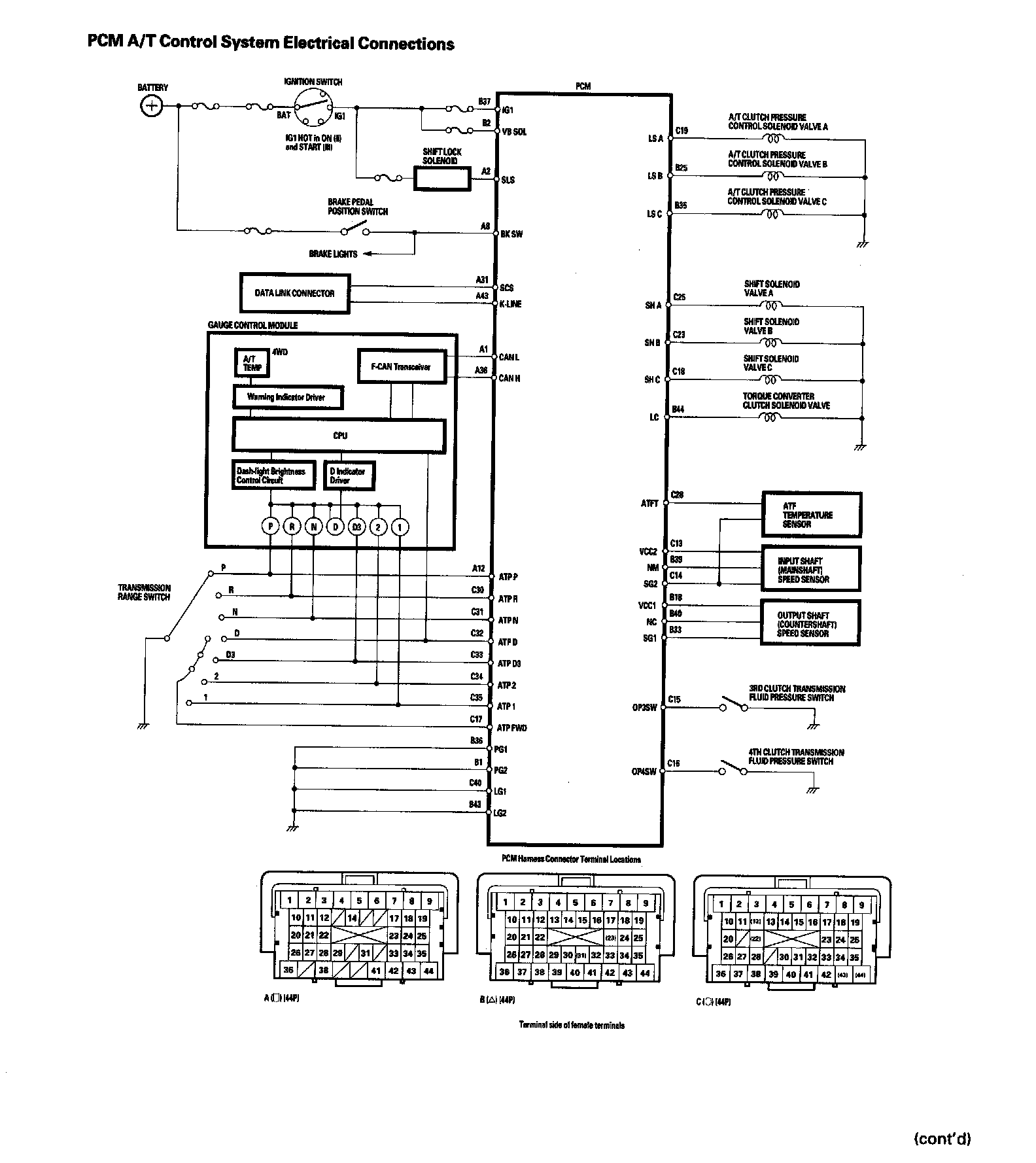

PCM A/T Control System Electrical Connections:

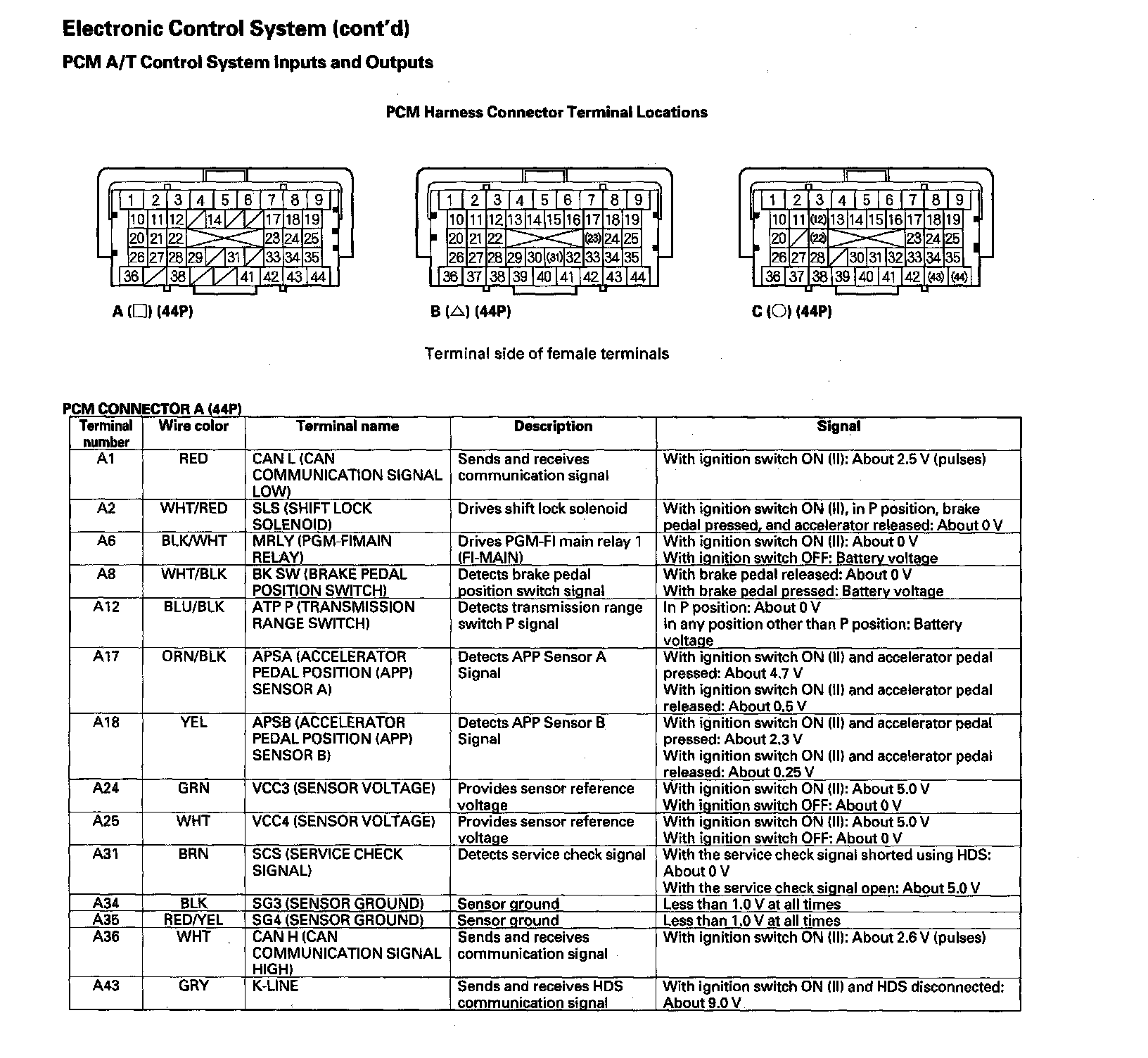

PCM A/T Control System Inputs and Outputs (Part 1):

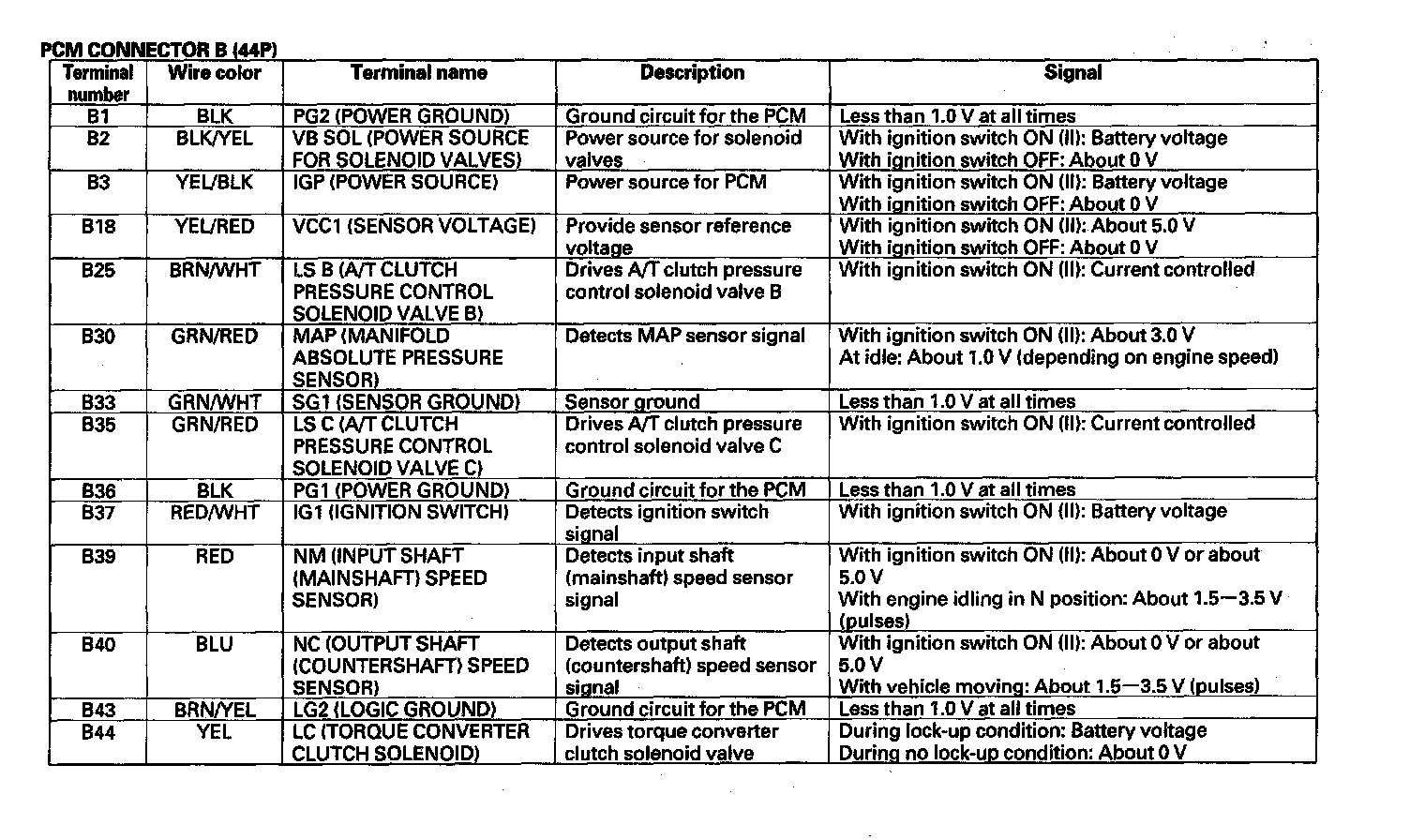

PCM A/T Control System Inputs and Outputs (Part 2):

PCM A/T Control System Inputs and Outputs (Part 3):

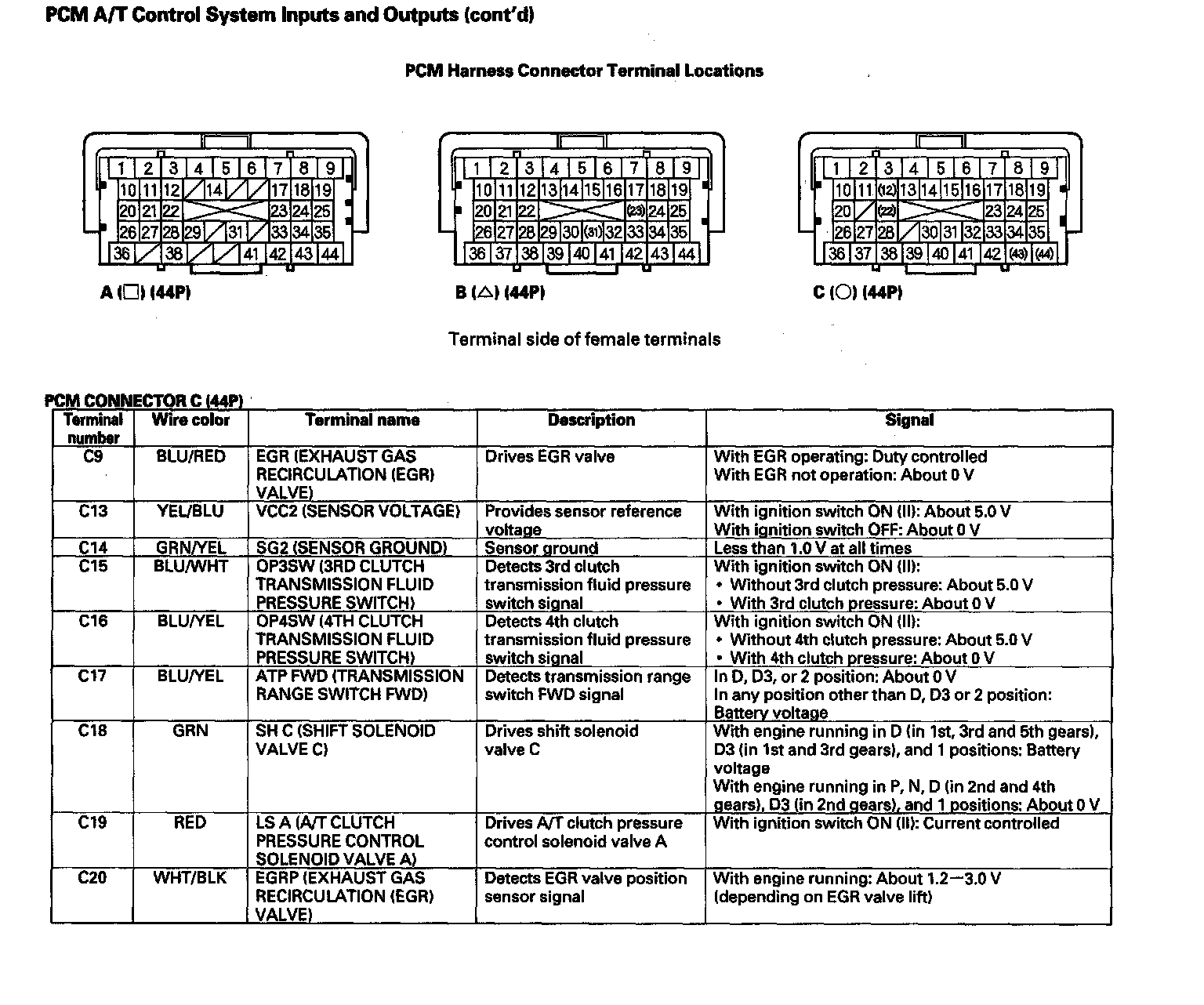

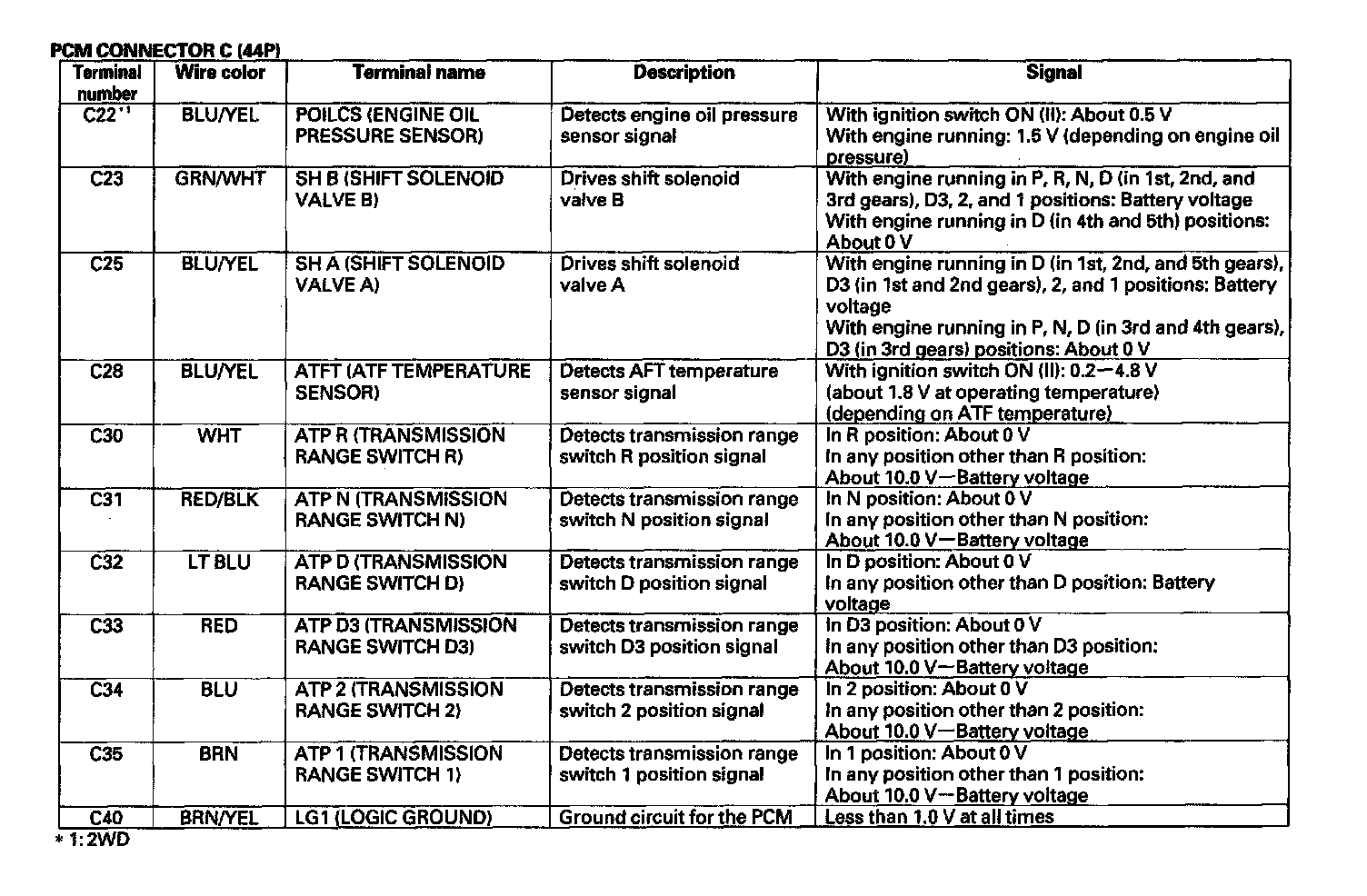

PCM A/T Control System Inputs and Outputs (Part 4):

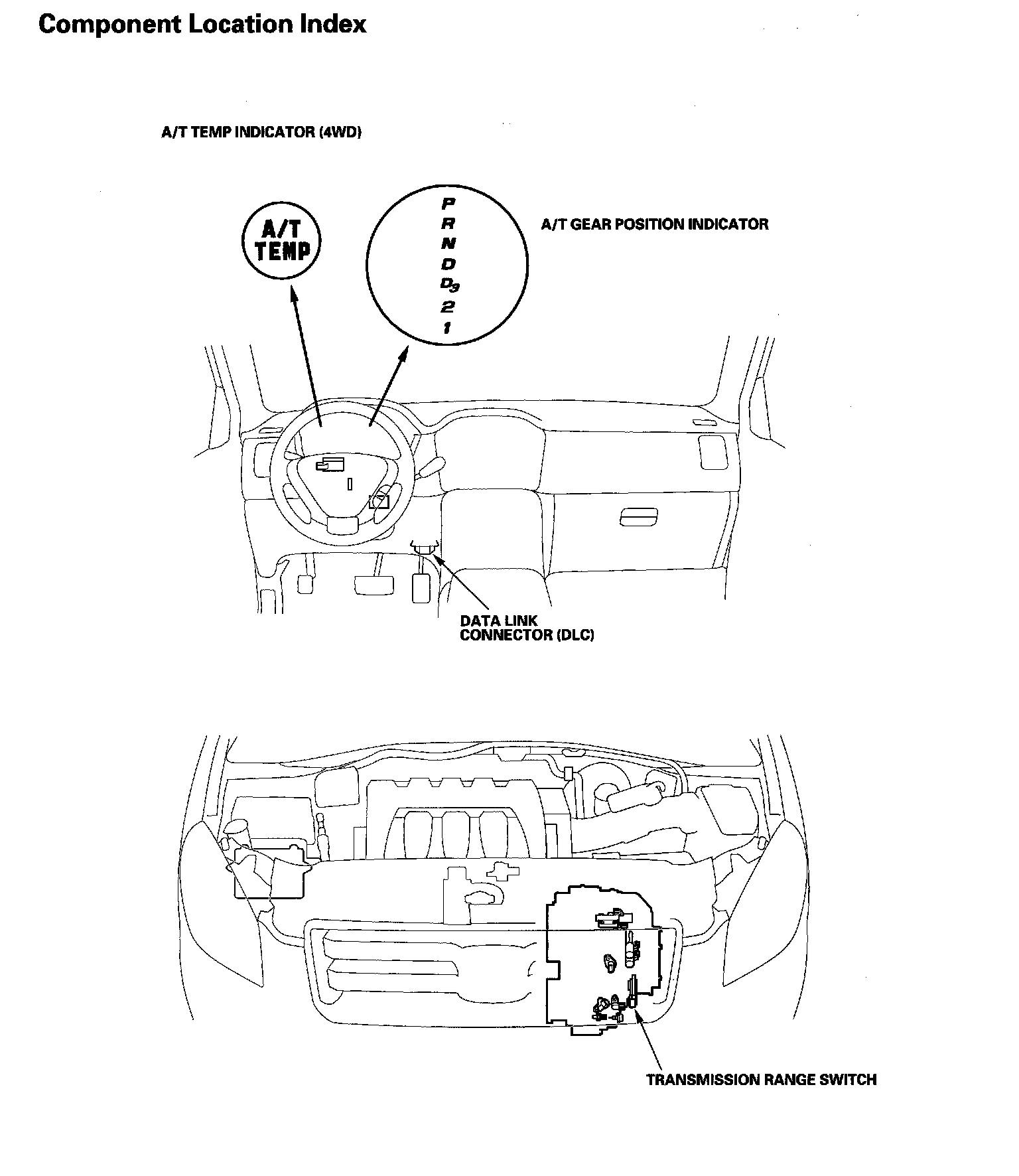

A/T Gear Position Indicator Component Location Index:
