Oil Pump Overhaul: Notes

Exploded View

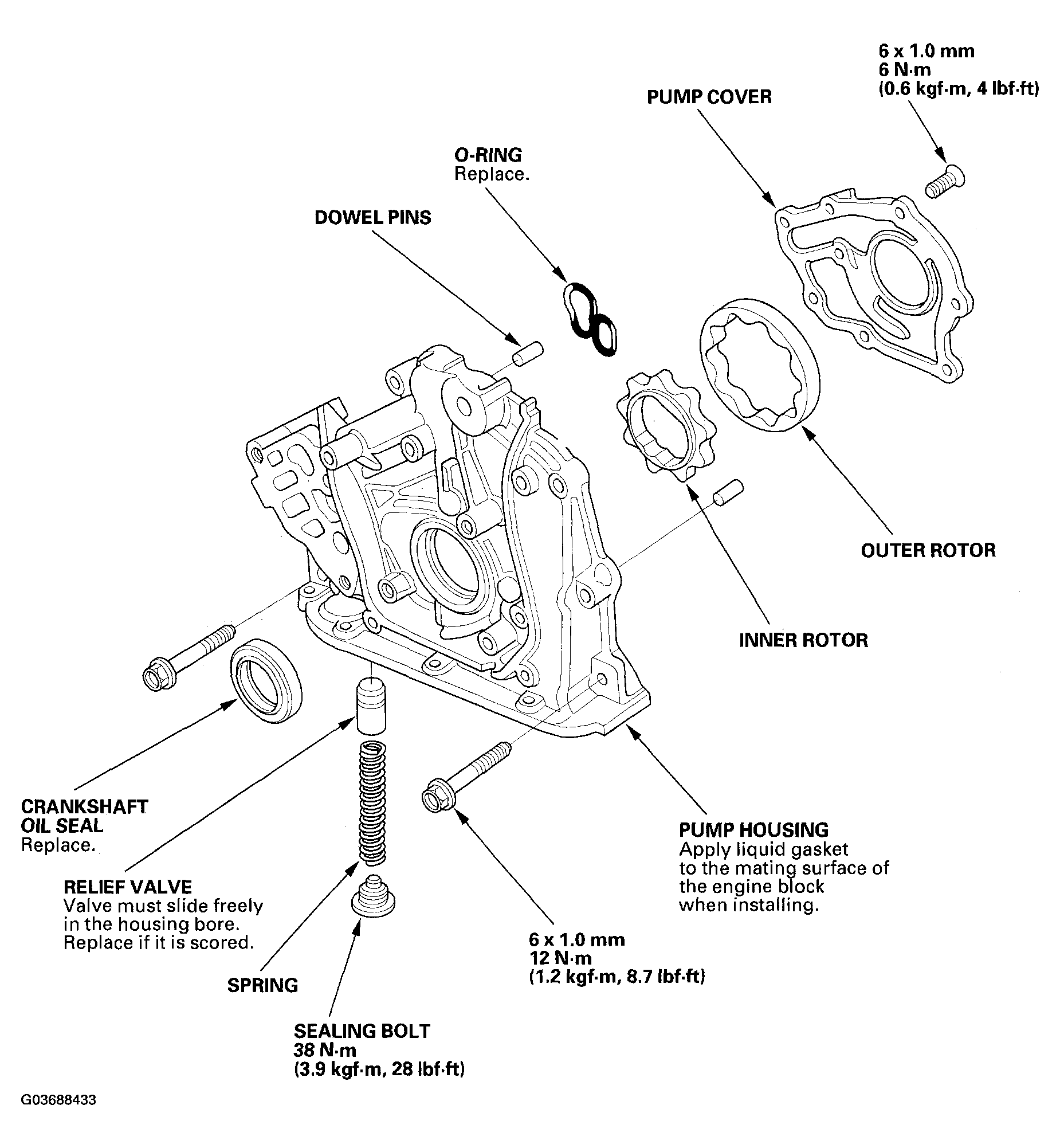

Fig 1: Exploded View Of Oil Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil seal driver, 64 mm 070AD-RCAA100
• Engine support hanger, A and Reds AAR-T-12566
• Engine hanger adapter set VSB02C000024

These special tools are available through Honda Tool and Equipment program, 888-424-6857.
