Engine Compartment

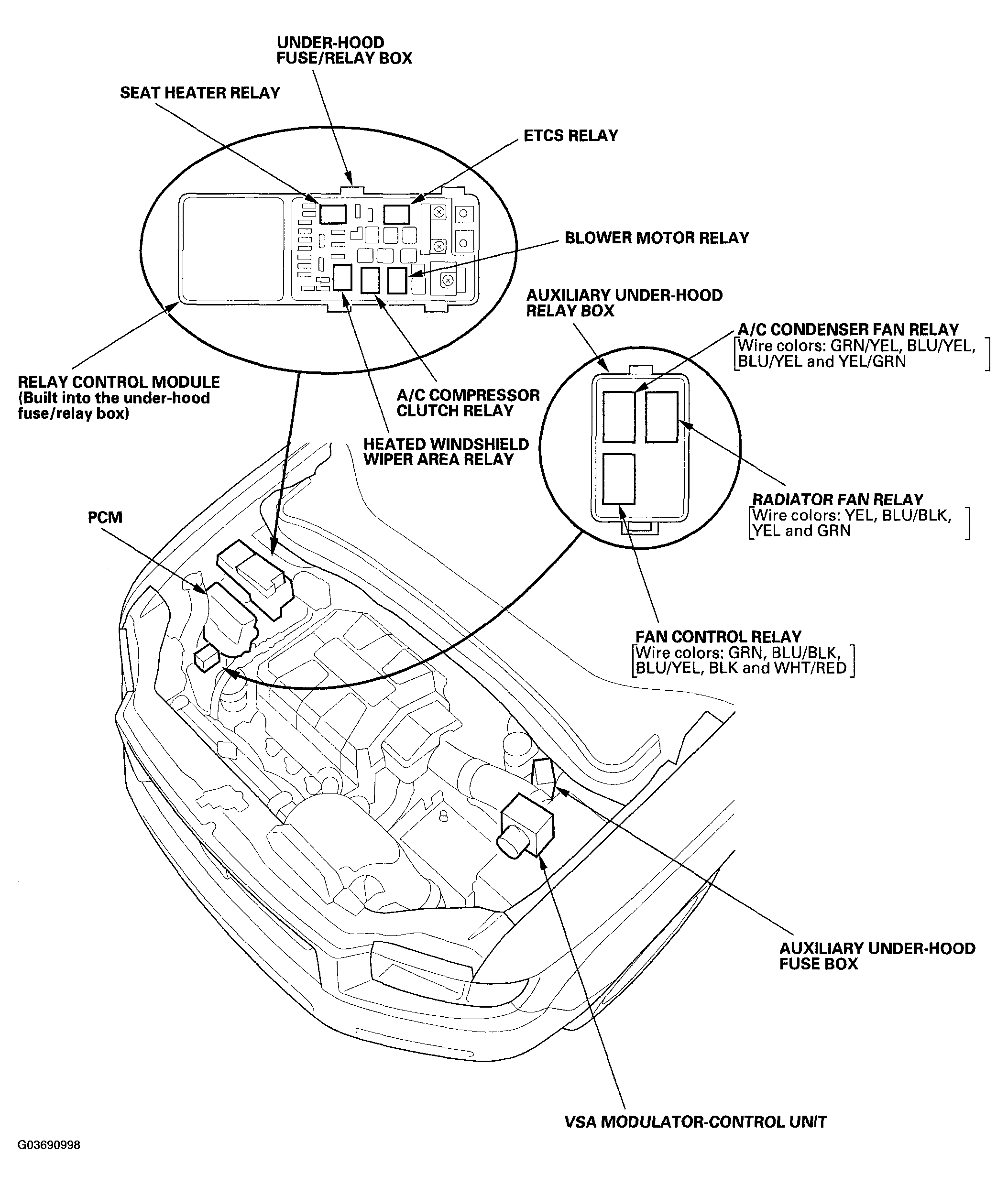

Fig 1: Identifying Relay And Control Unit Locations (Engine Compartment)
G03690998Courtesy of AMERICAN HONDA MOTOR CO., INC.
