Navigation Module

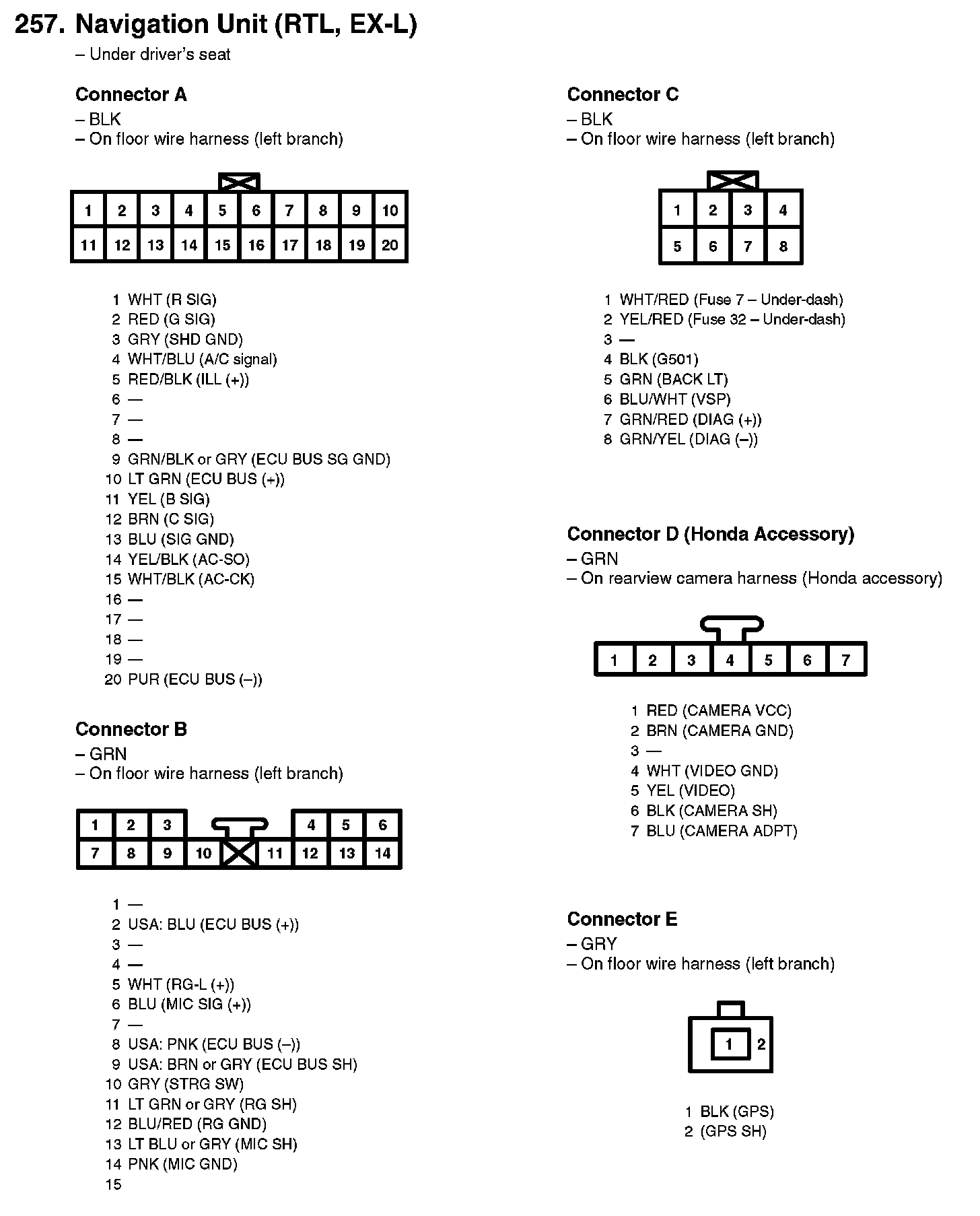

257. Navigation Unit (RTL, EX-L):

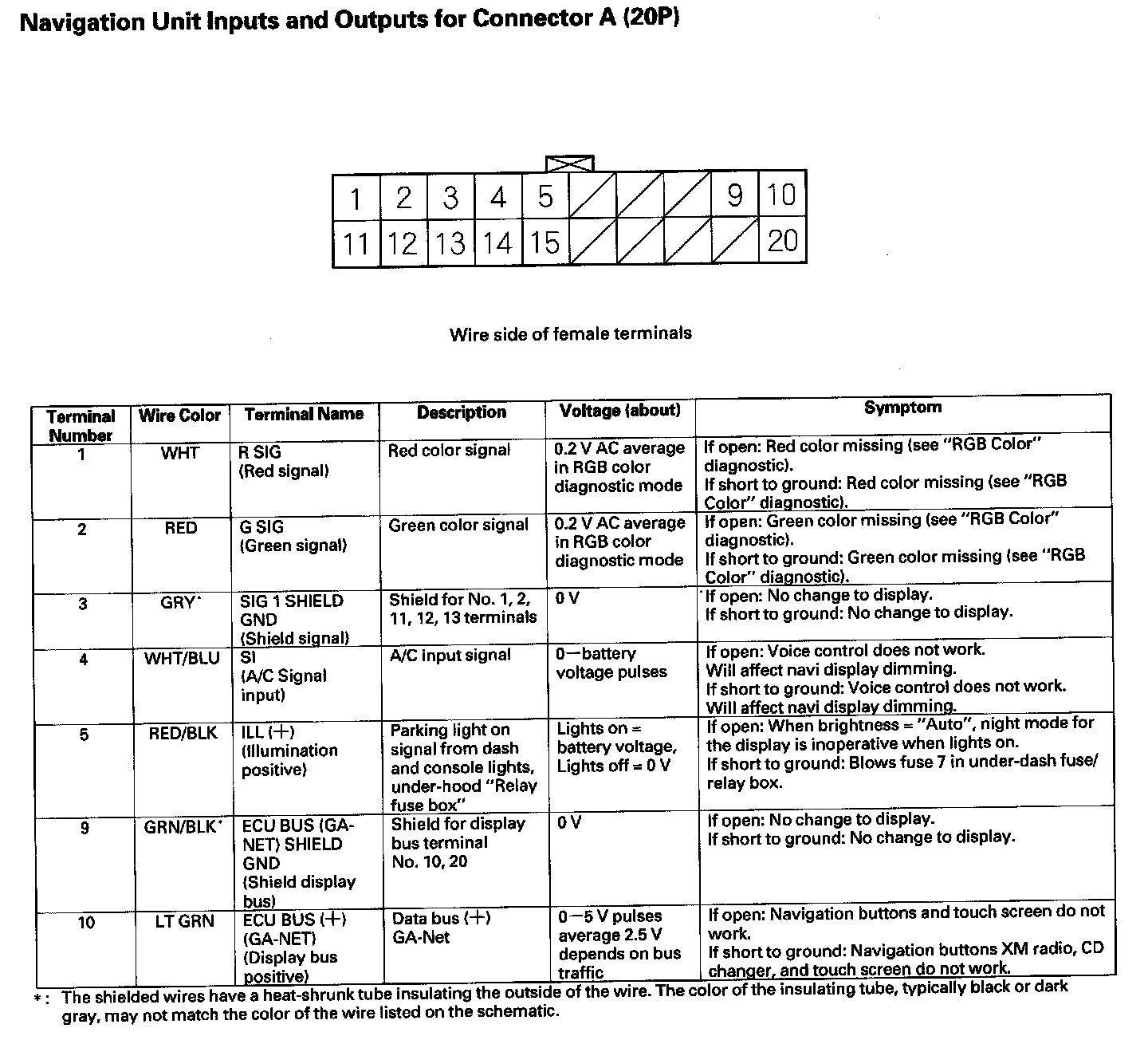

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:

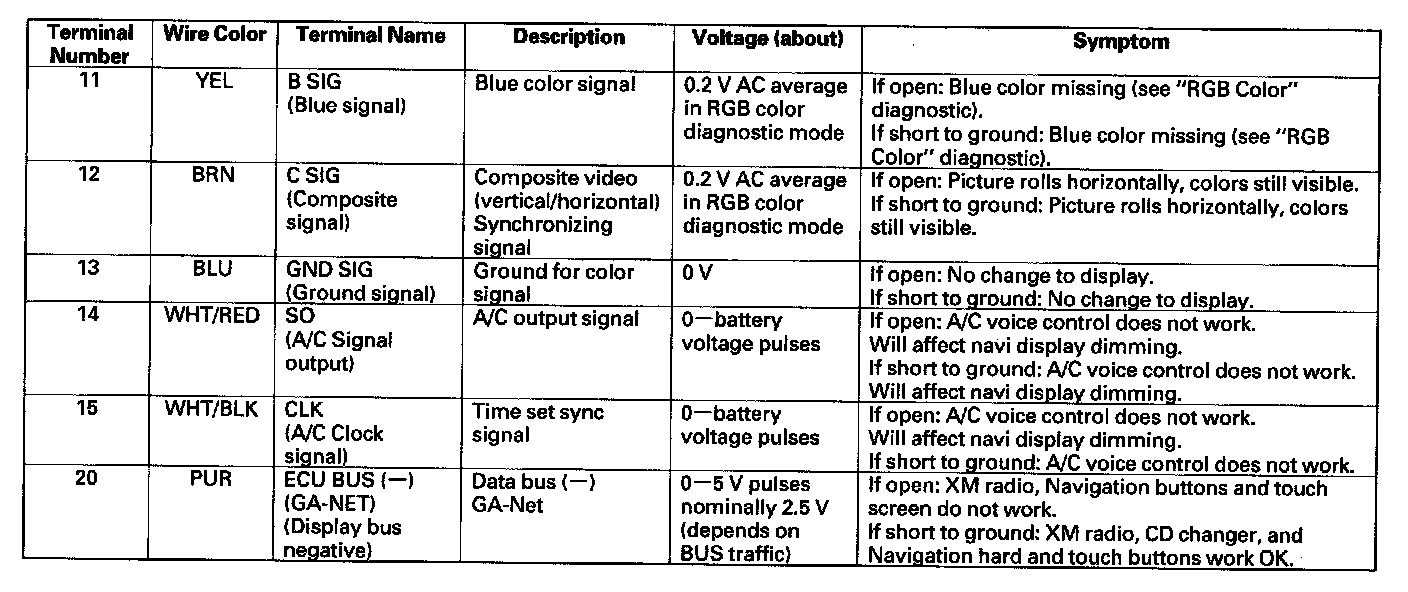

Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

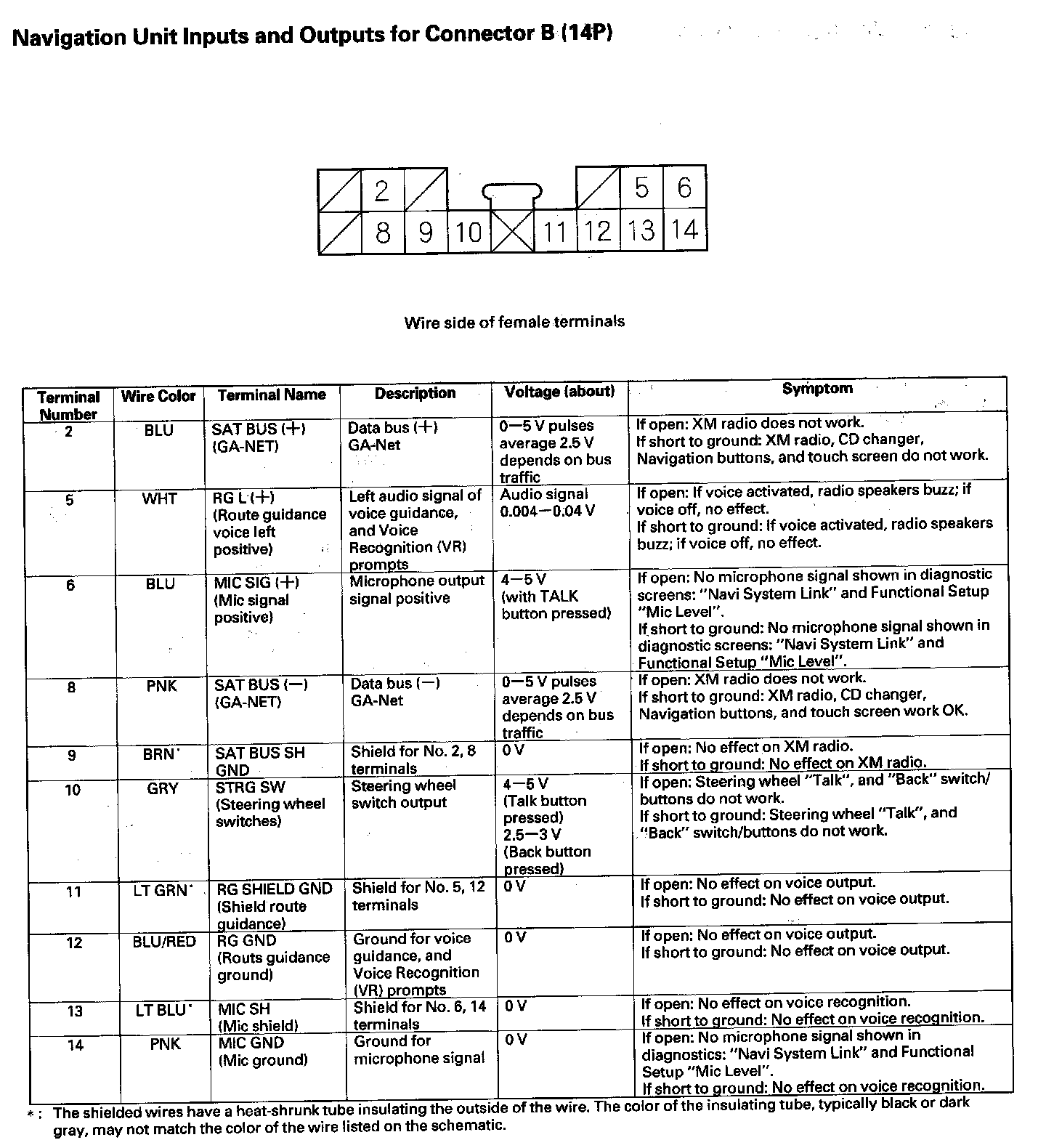

Navigation Unit Inputs And Outputs For Connector B (14P):

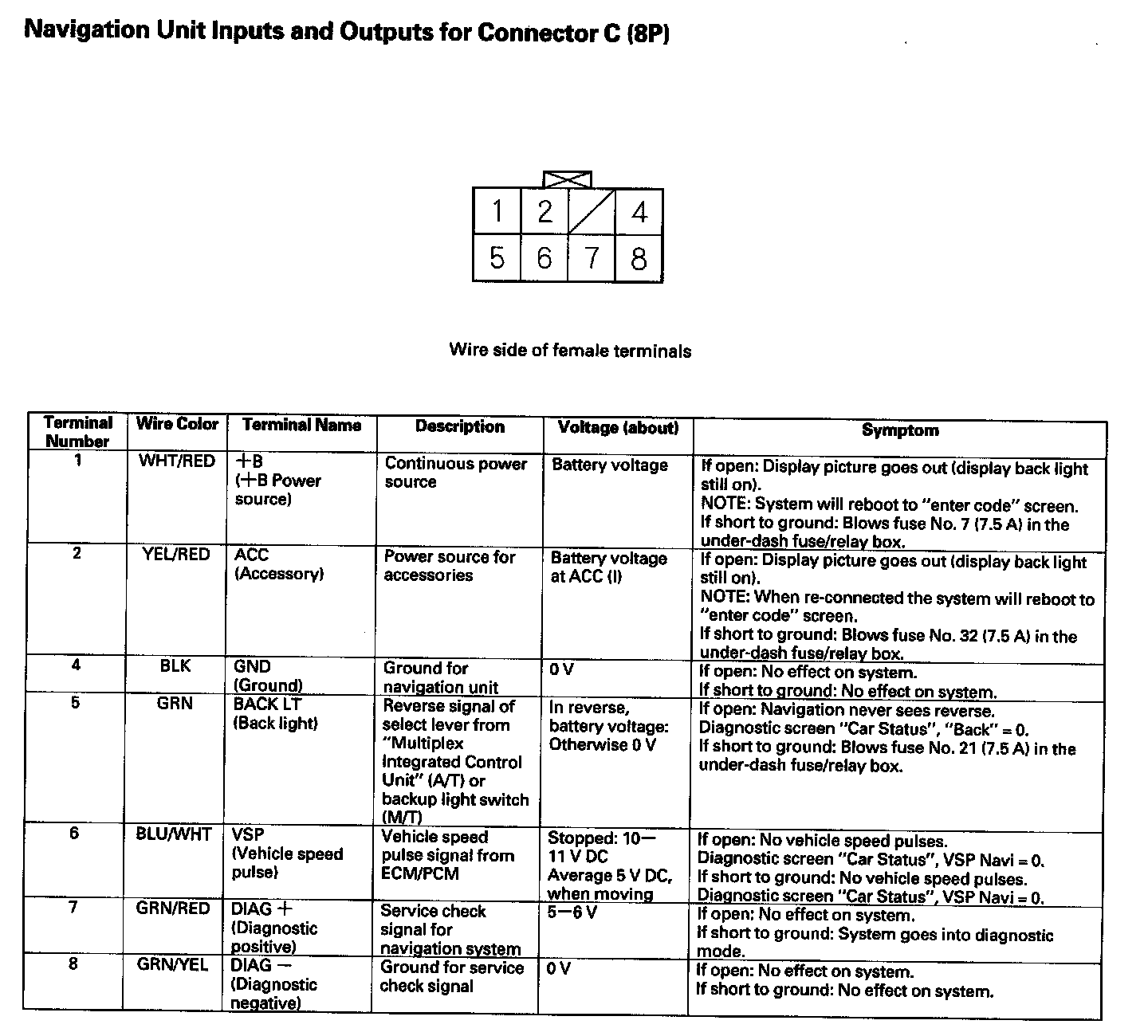

Navigation Unit Inputs And Outputs For Connector C (8P):

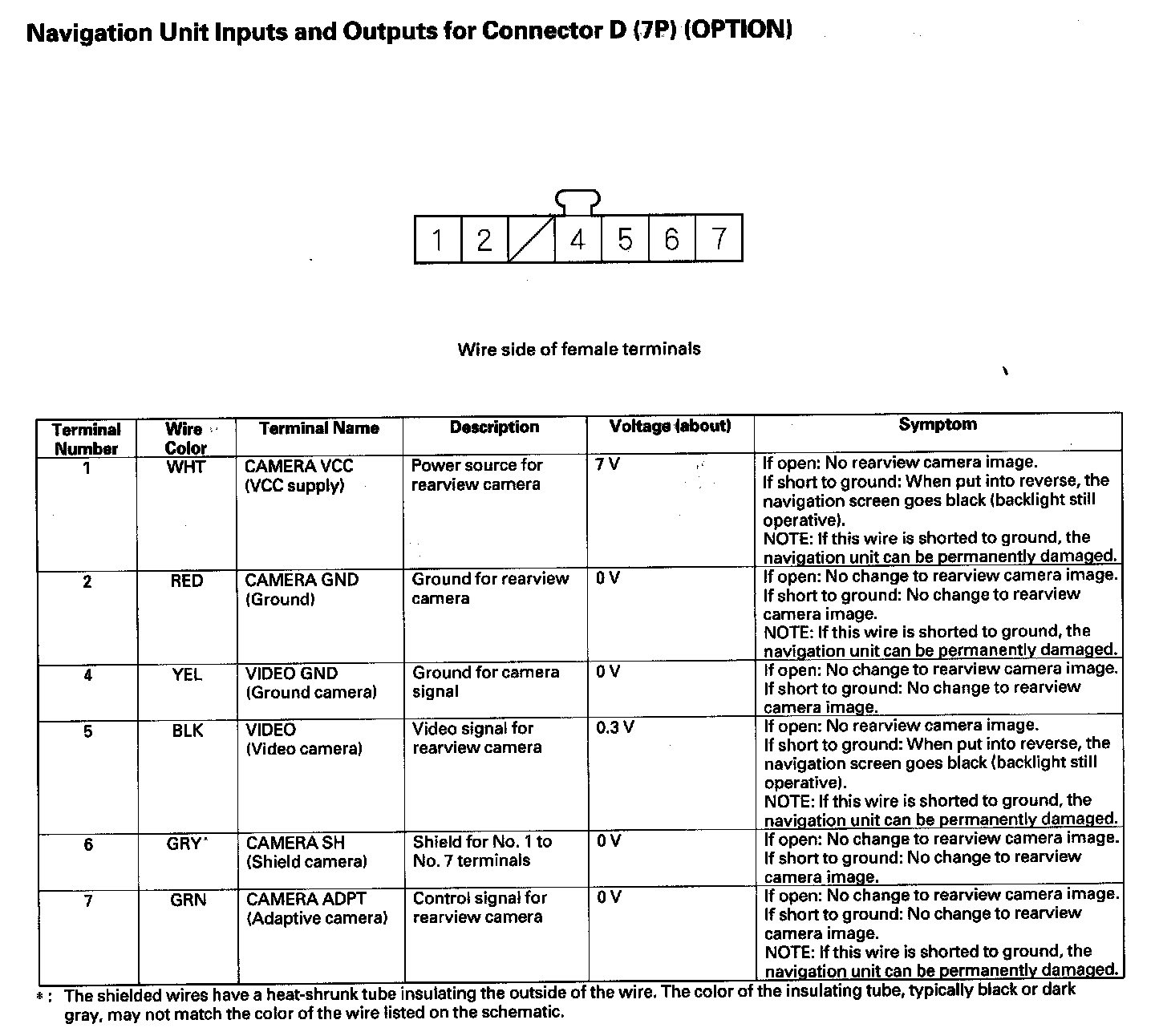

Navigation Unit Inputs And Outputs For Connector D (7P) (OPTION):

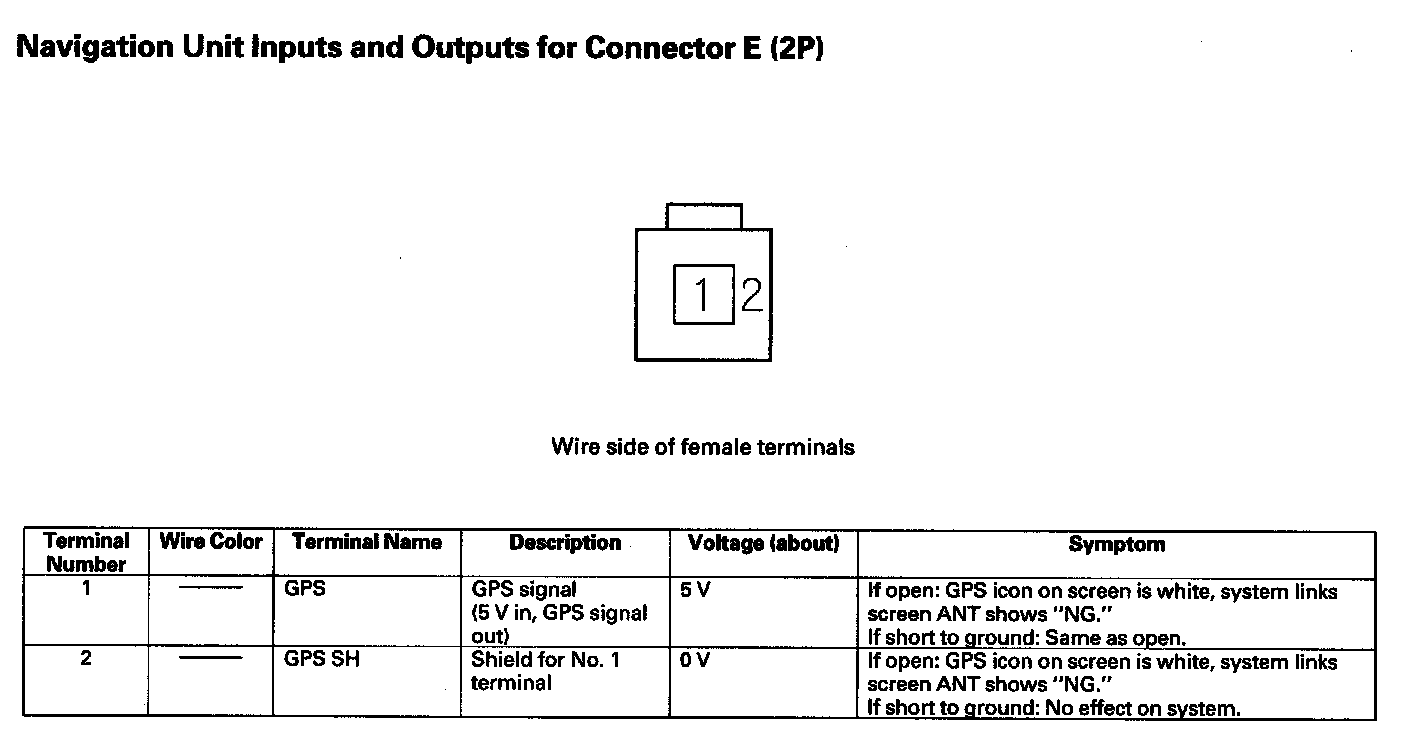

Navigation Unit Inputs And Outputs For Connector E (2P):
