TPMS Control Unit Inputs and Outputs

TPMS Control Unit

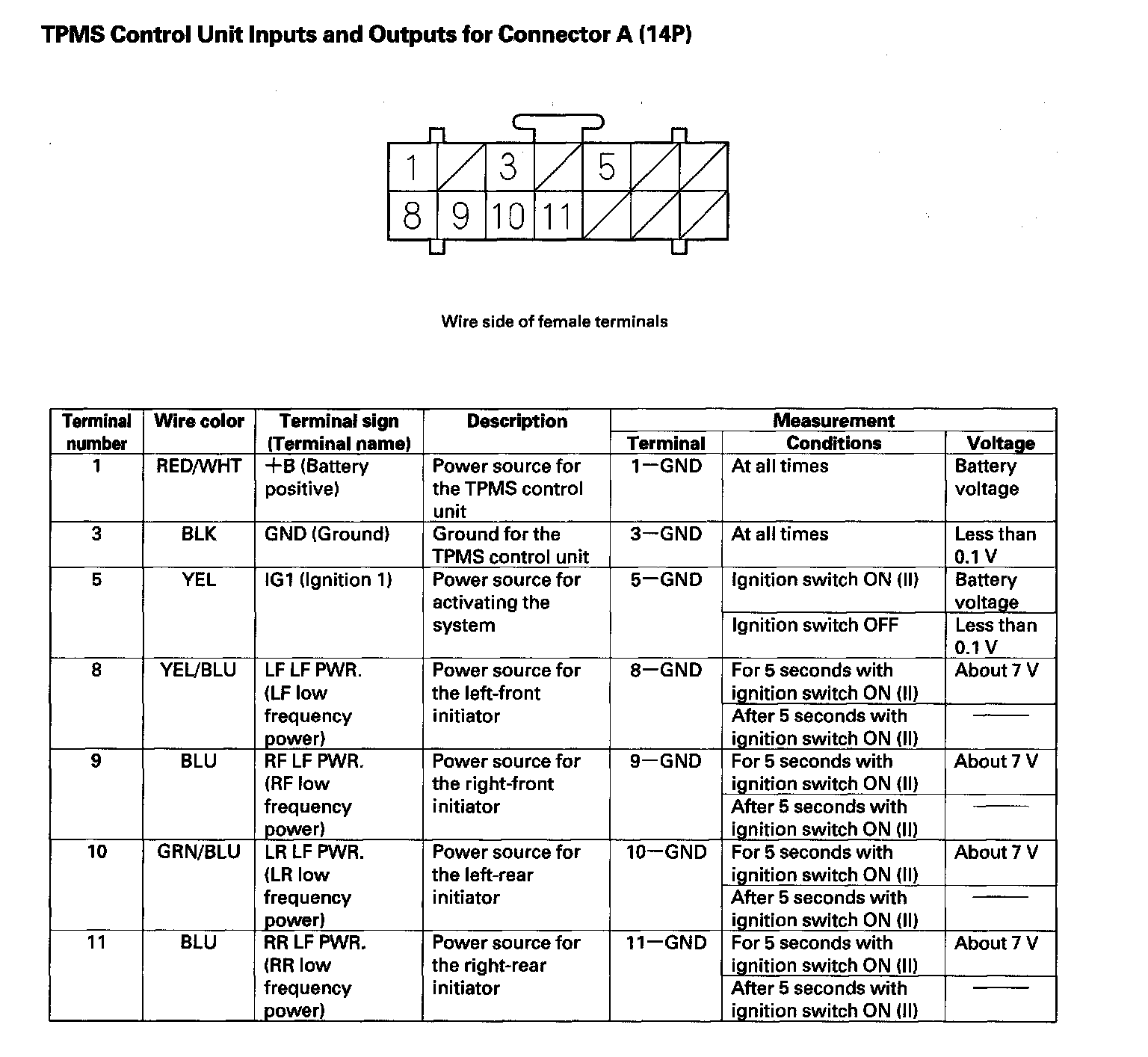

TPMS Control Unit Inputs and Outputs for Connector A (14P)

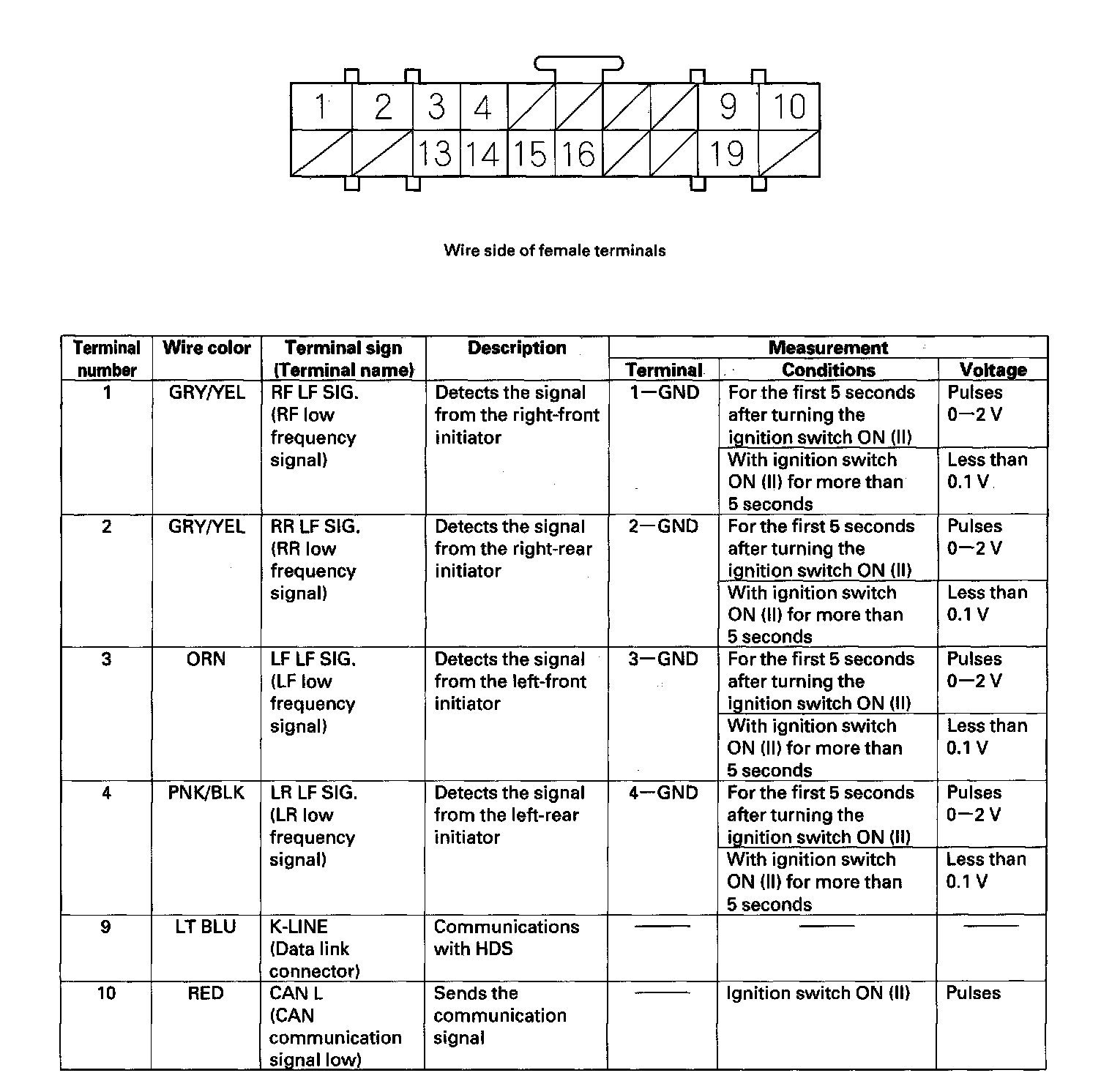

TPMS Control Unit Inputs and Outputs for Connector B (20P)

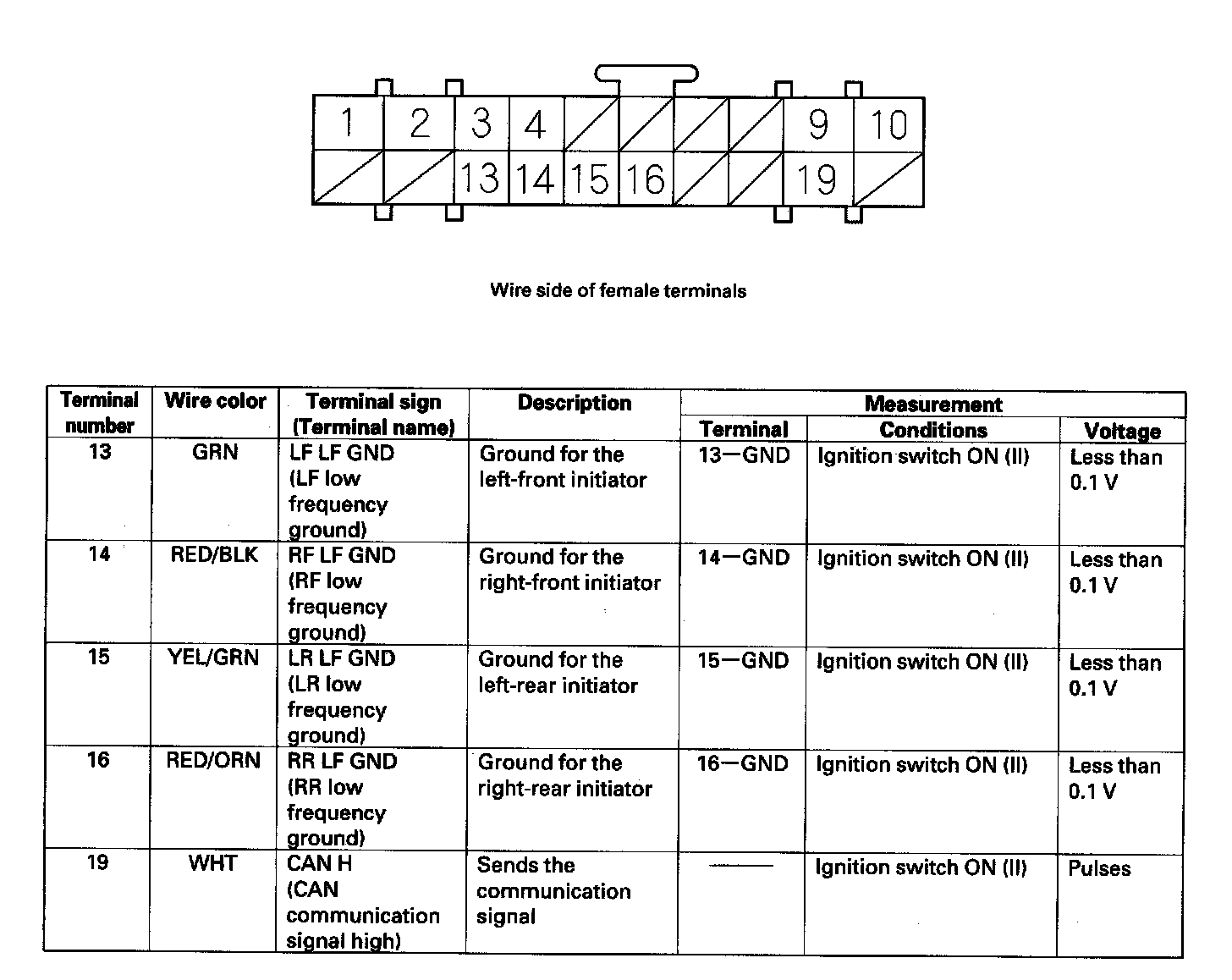

TPMS Control Unit Inputs and Outputs for Connector B (20P)
