Under-dash Fuse/Relay Box

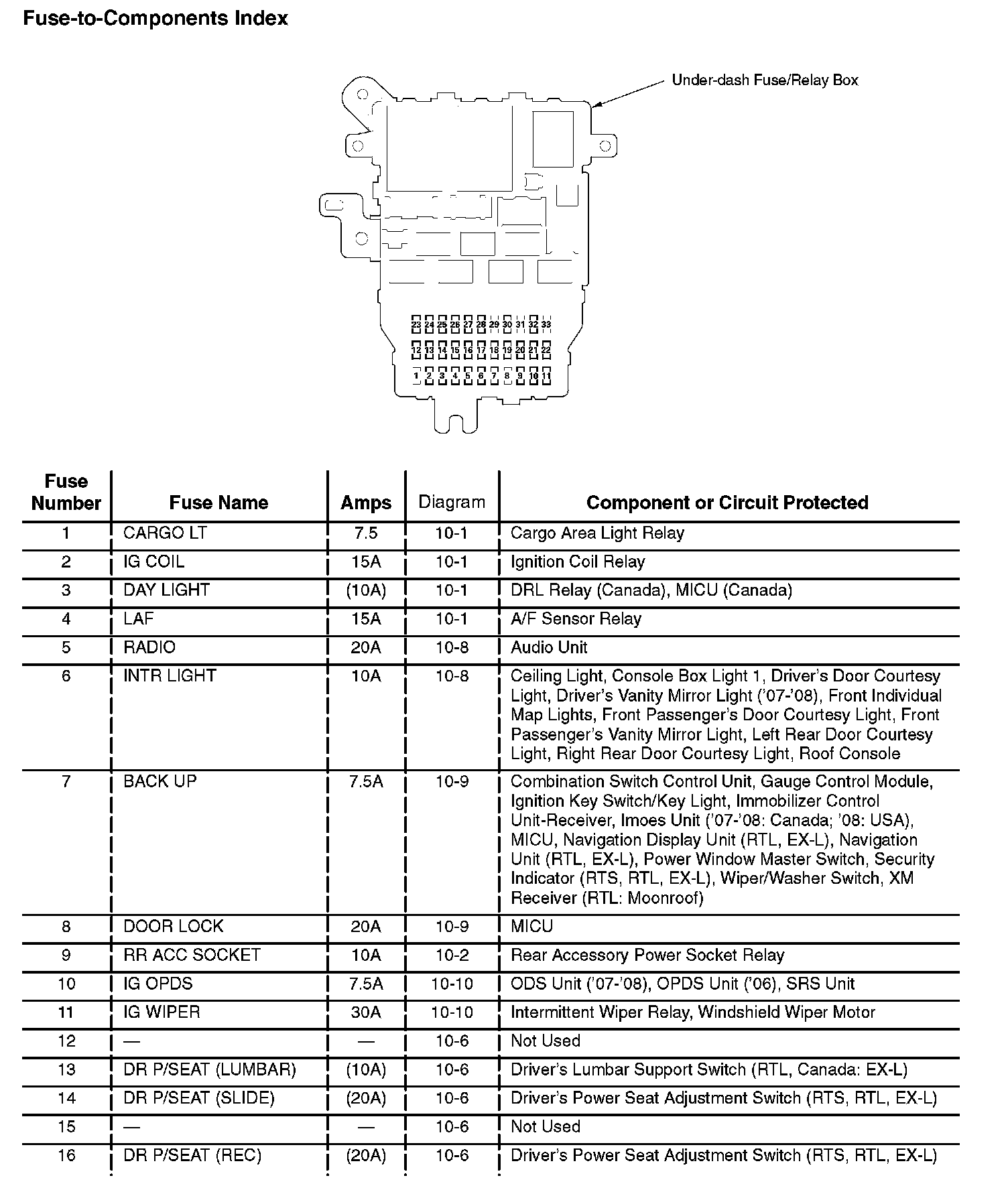

Under-dash Fuse/Relay Box, Part 1 Of 3:

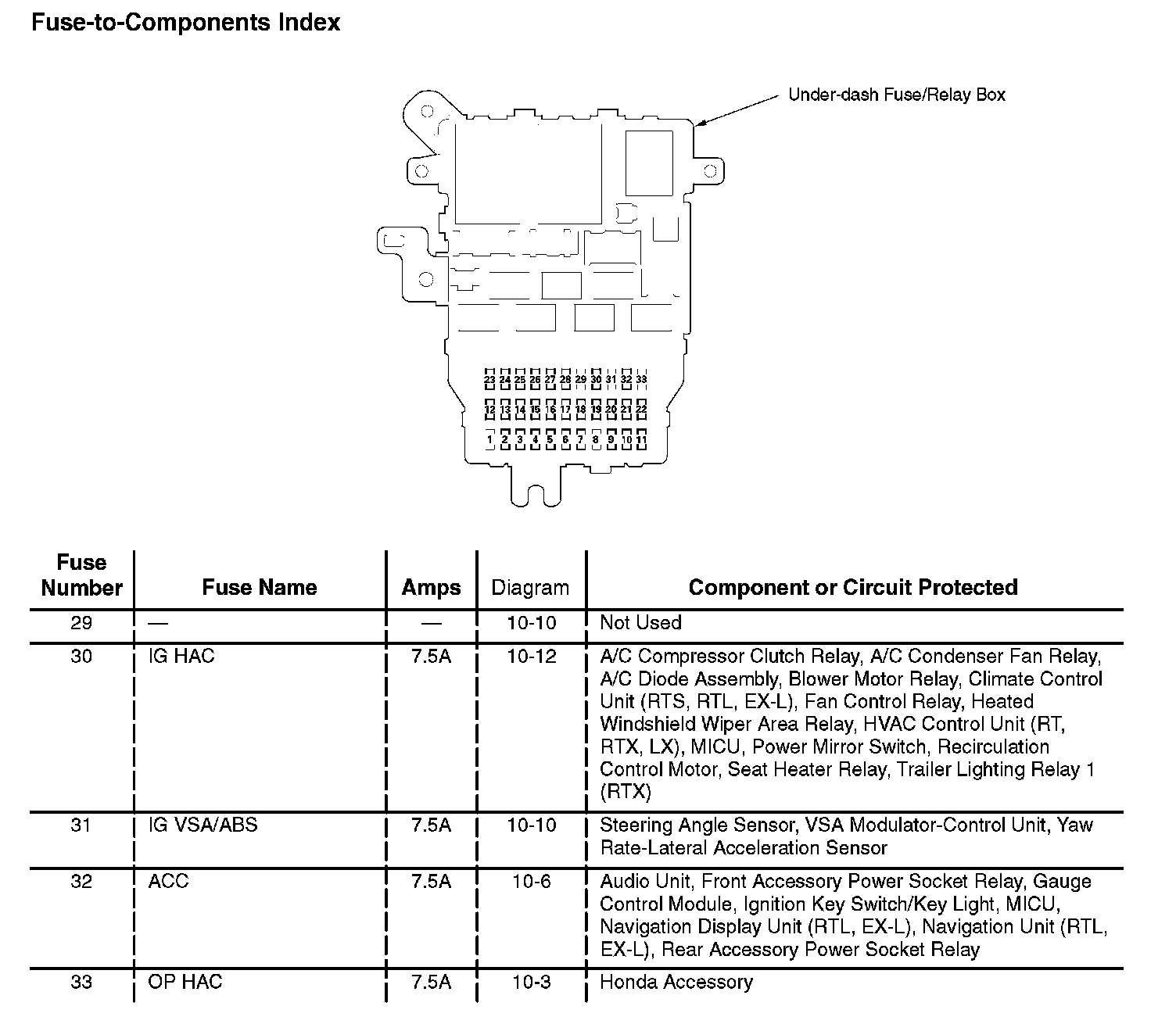

Under-dash Fuse/Relay Box, Part 2 Of 3:

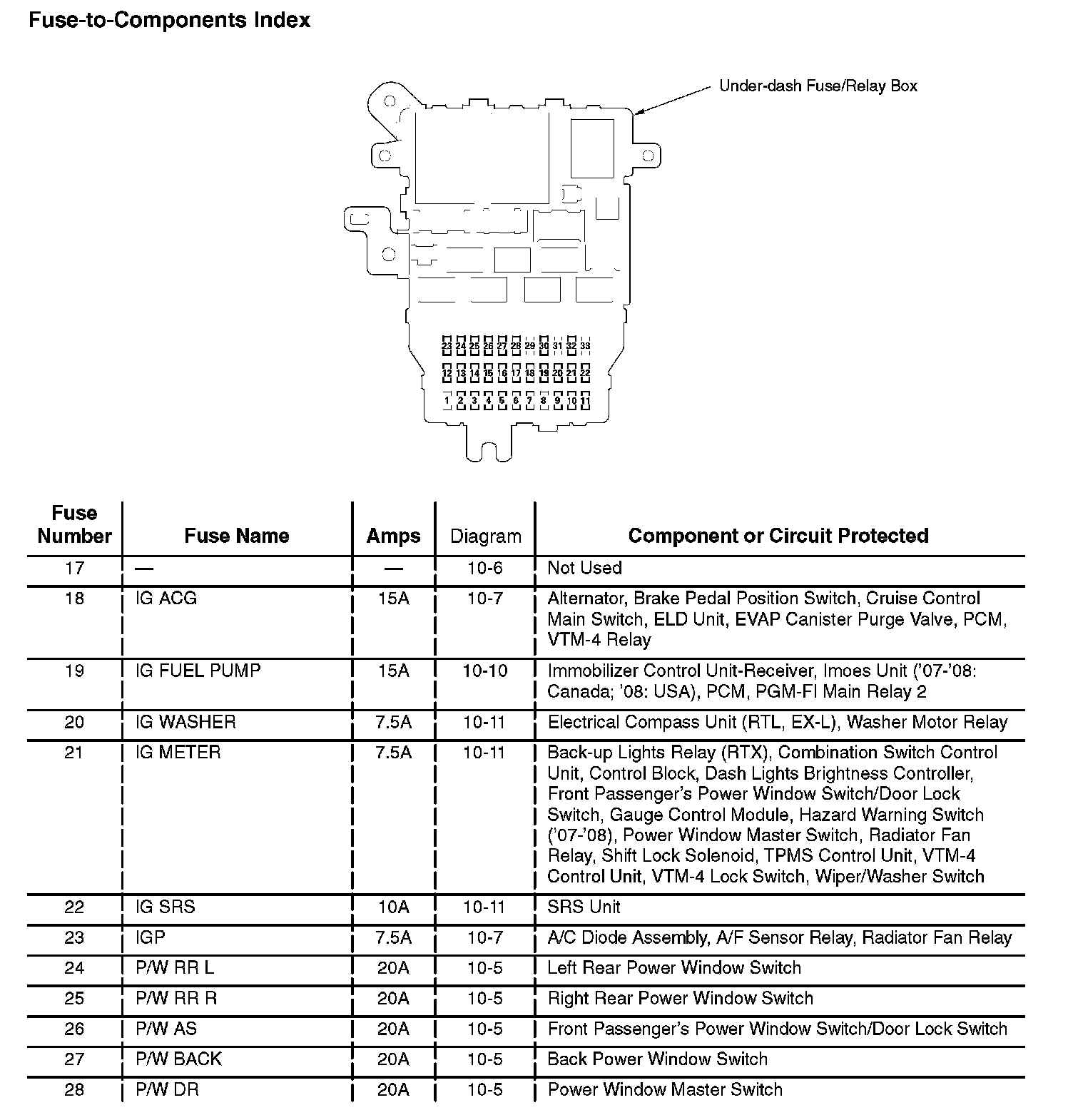

Under-dash Fuse/Relay Box, Part 3 Of 3:
