Engine Control Module: Locations

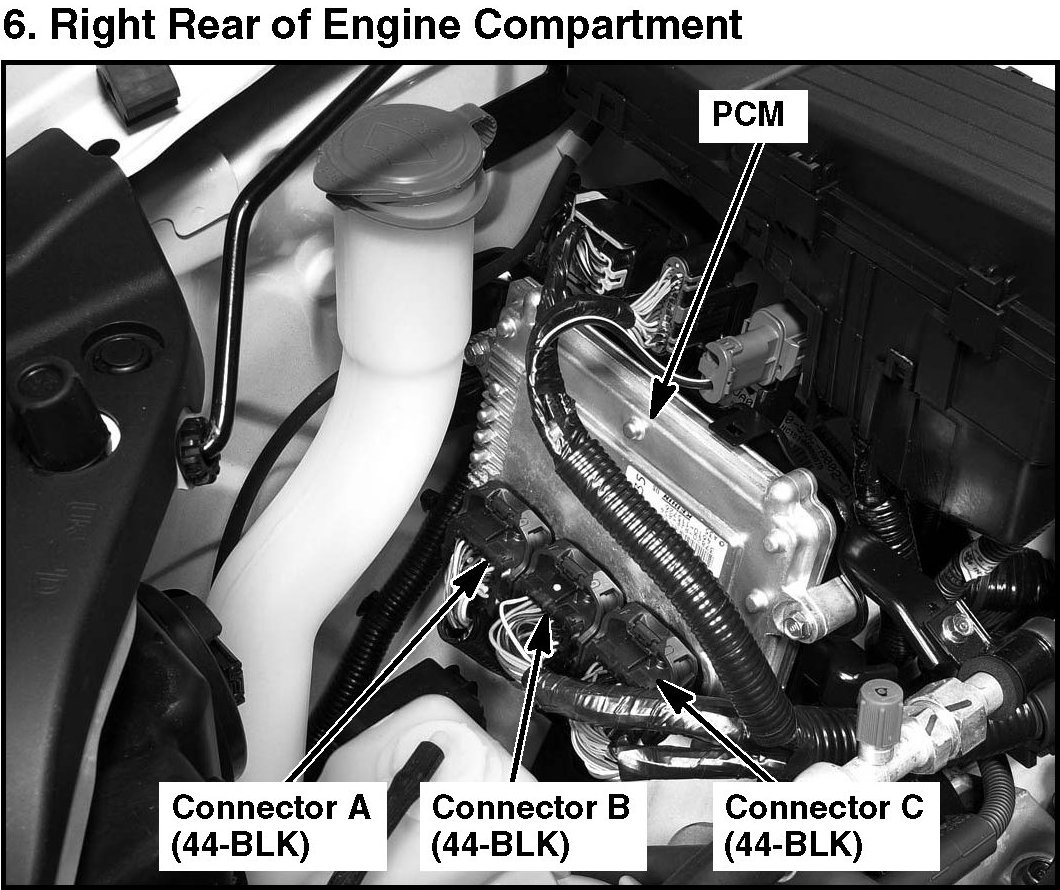

6. Right Rear Of Engine Compartment:

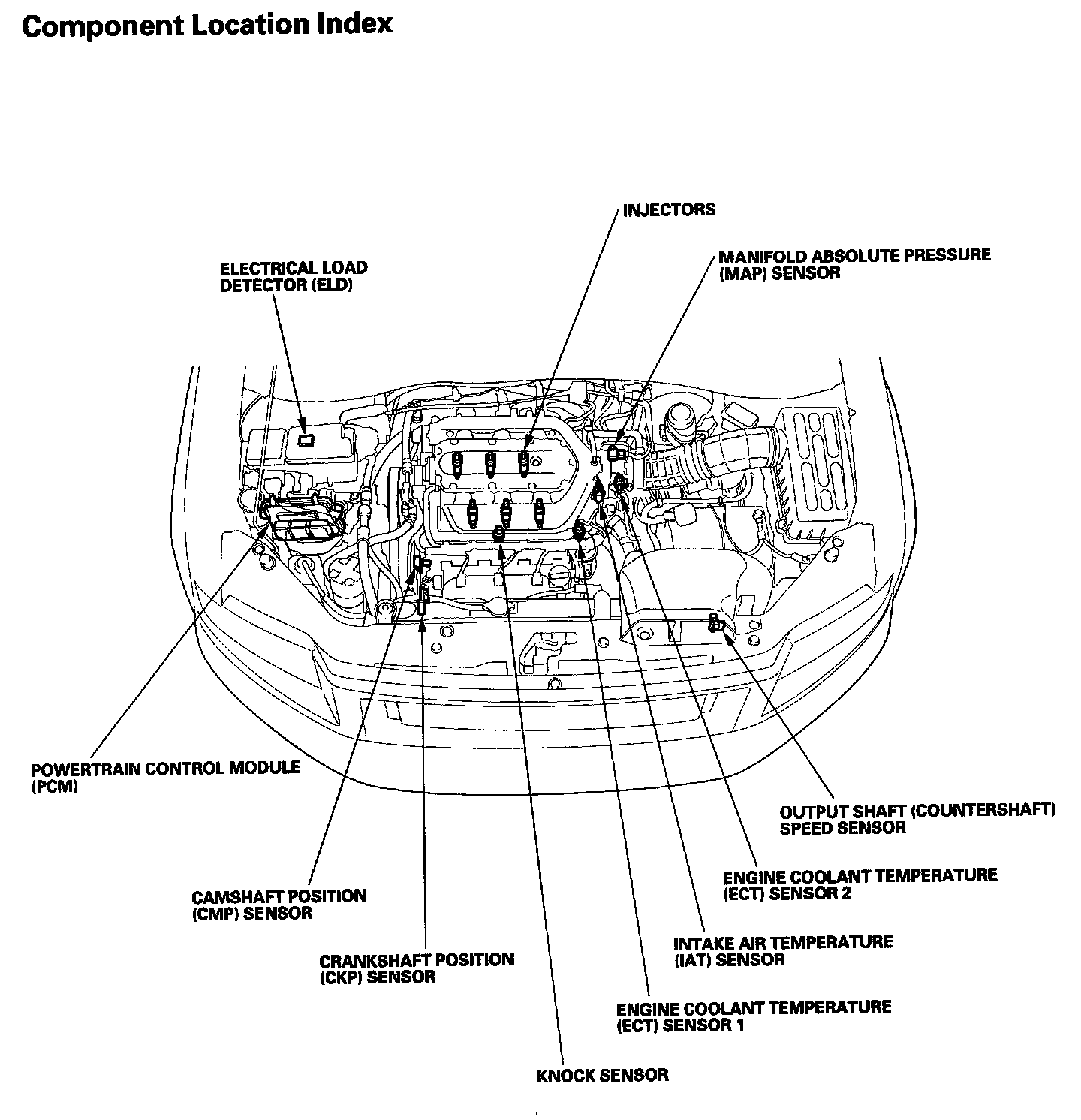

PGM-FI System Component Location Index:

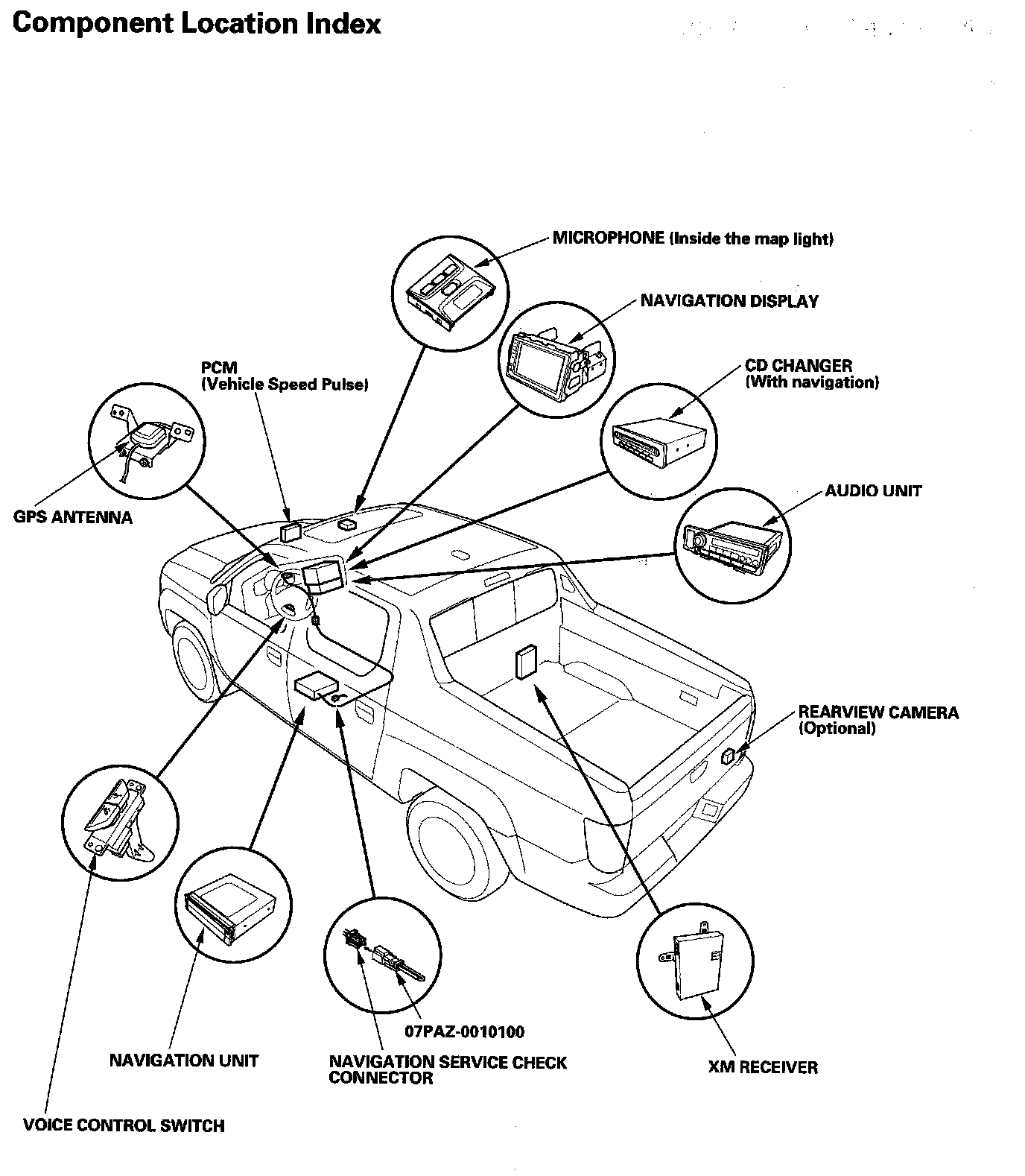

Navigation System Component Location Index:

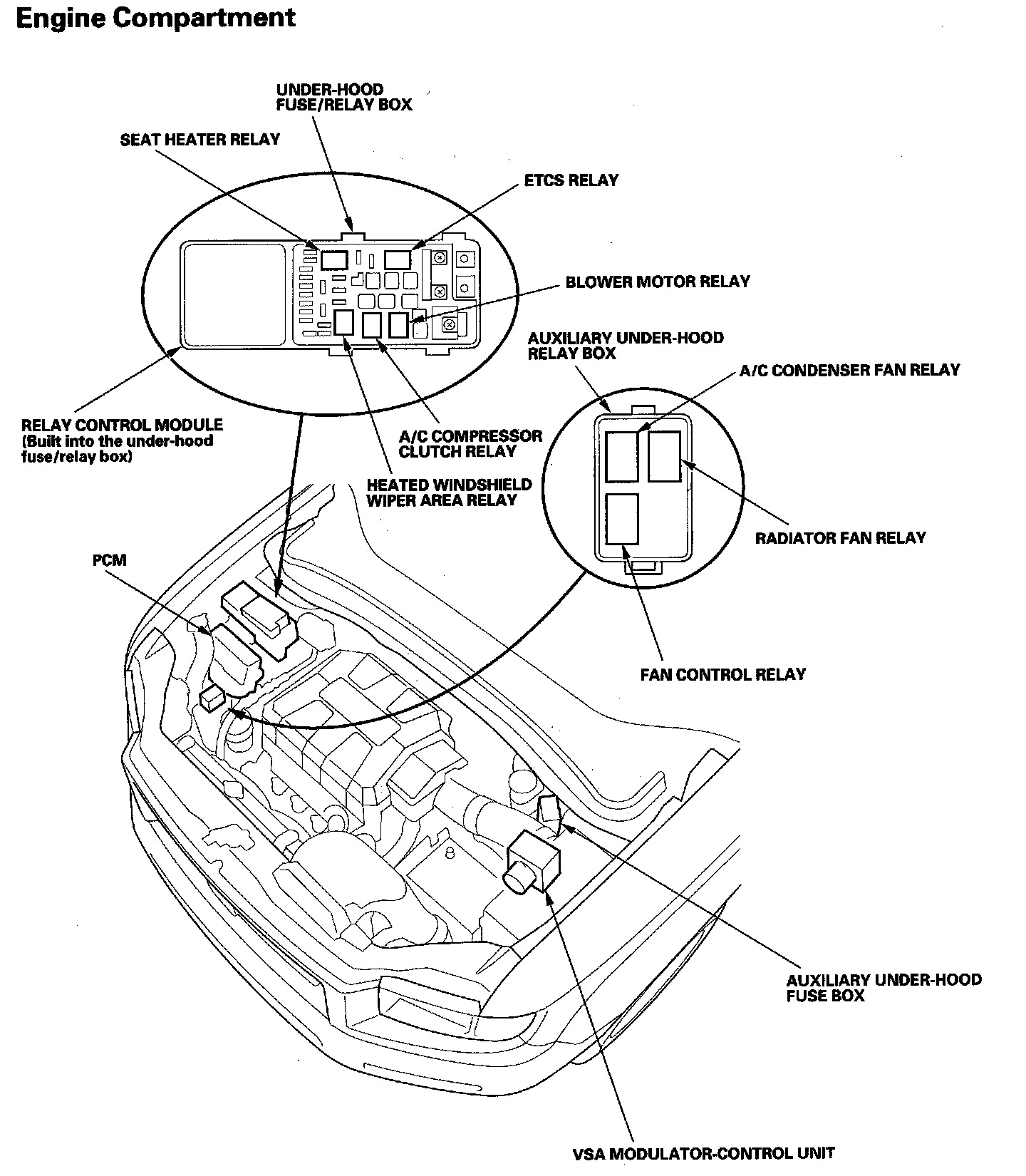

Relay And Control Unit Locations Engine Compartment:

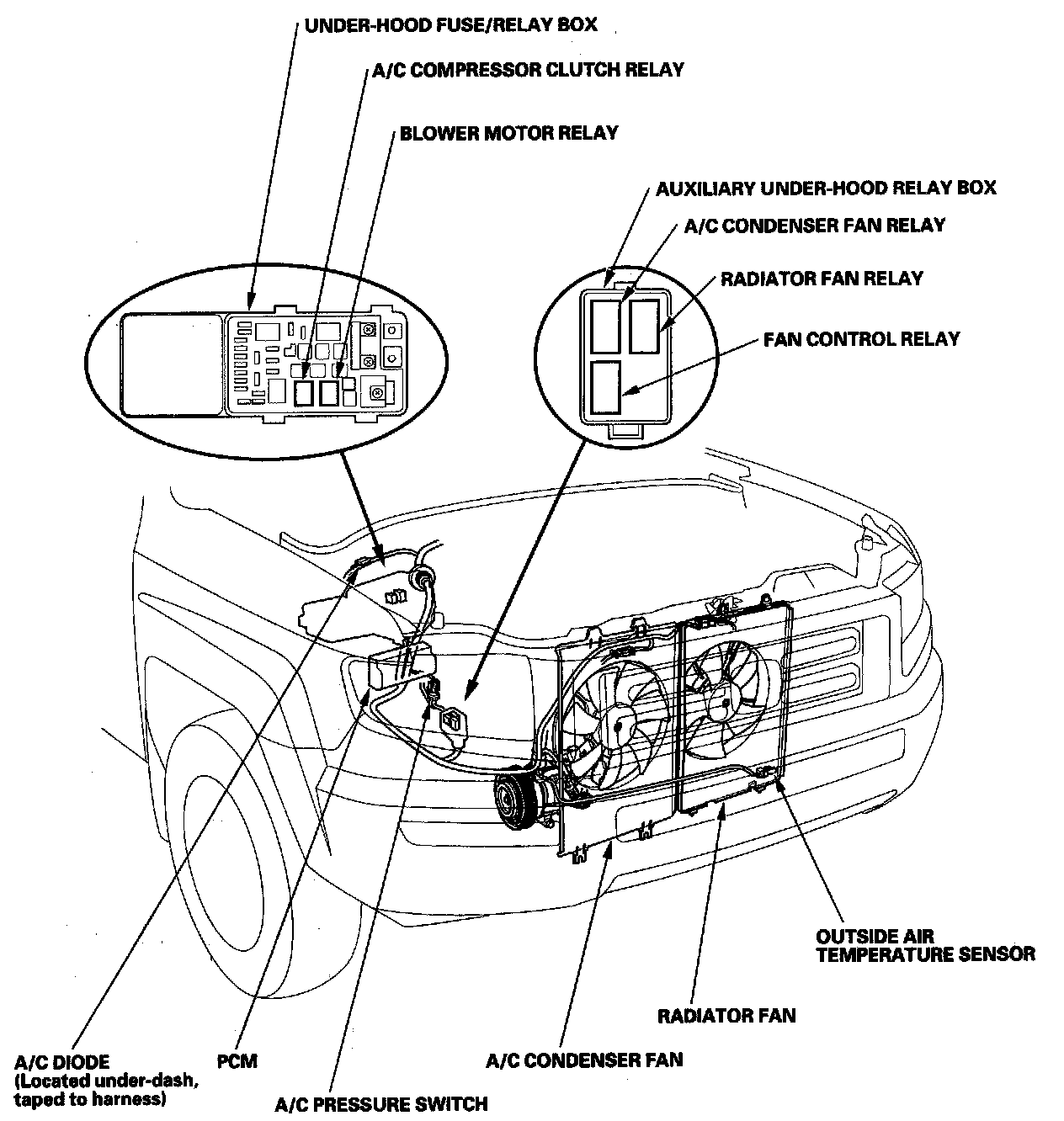

Climate Control Component Location Index:
