Pinout Values and Diagnostic Parameters

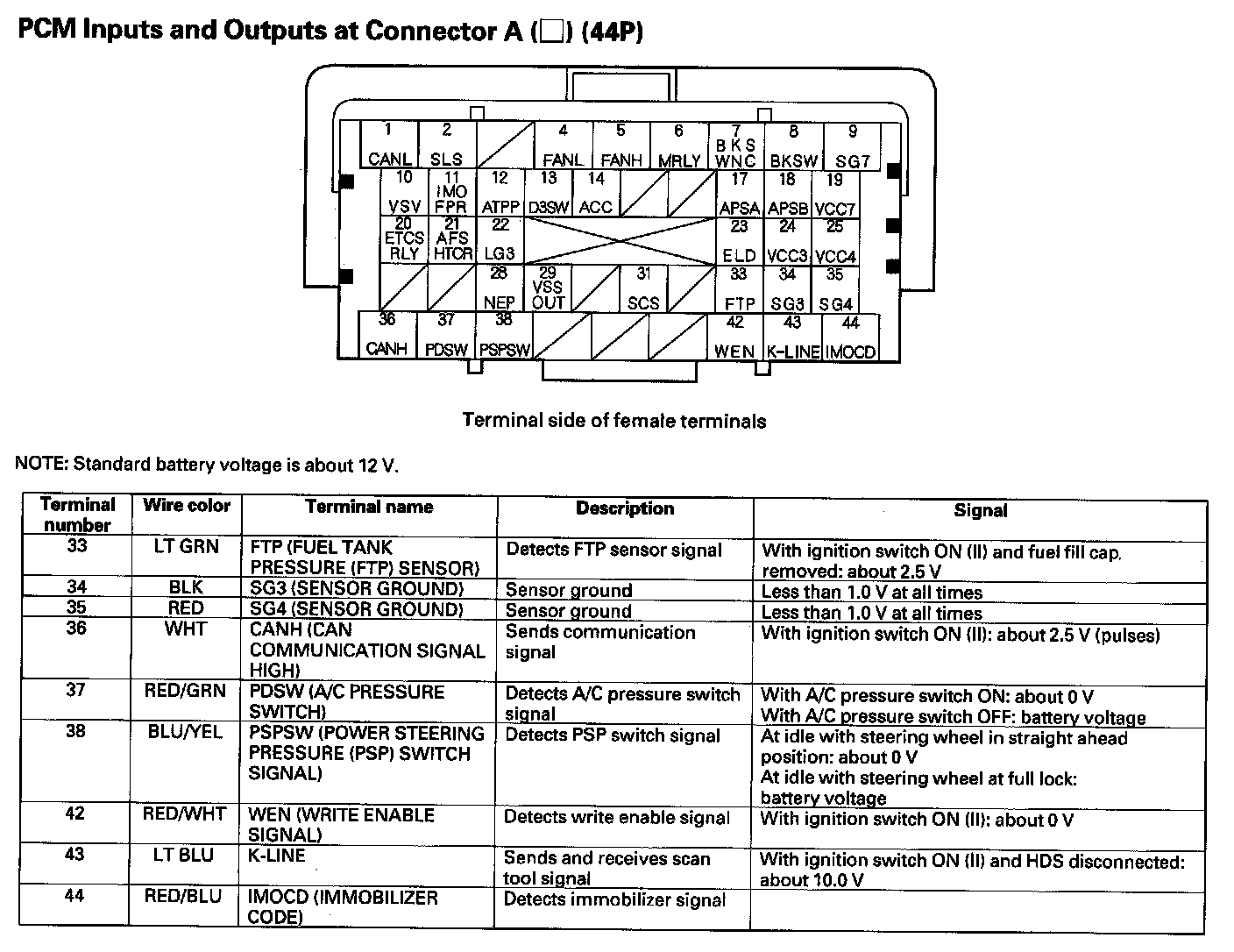

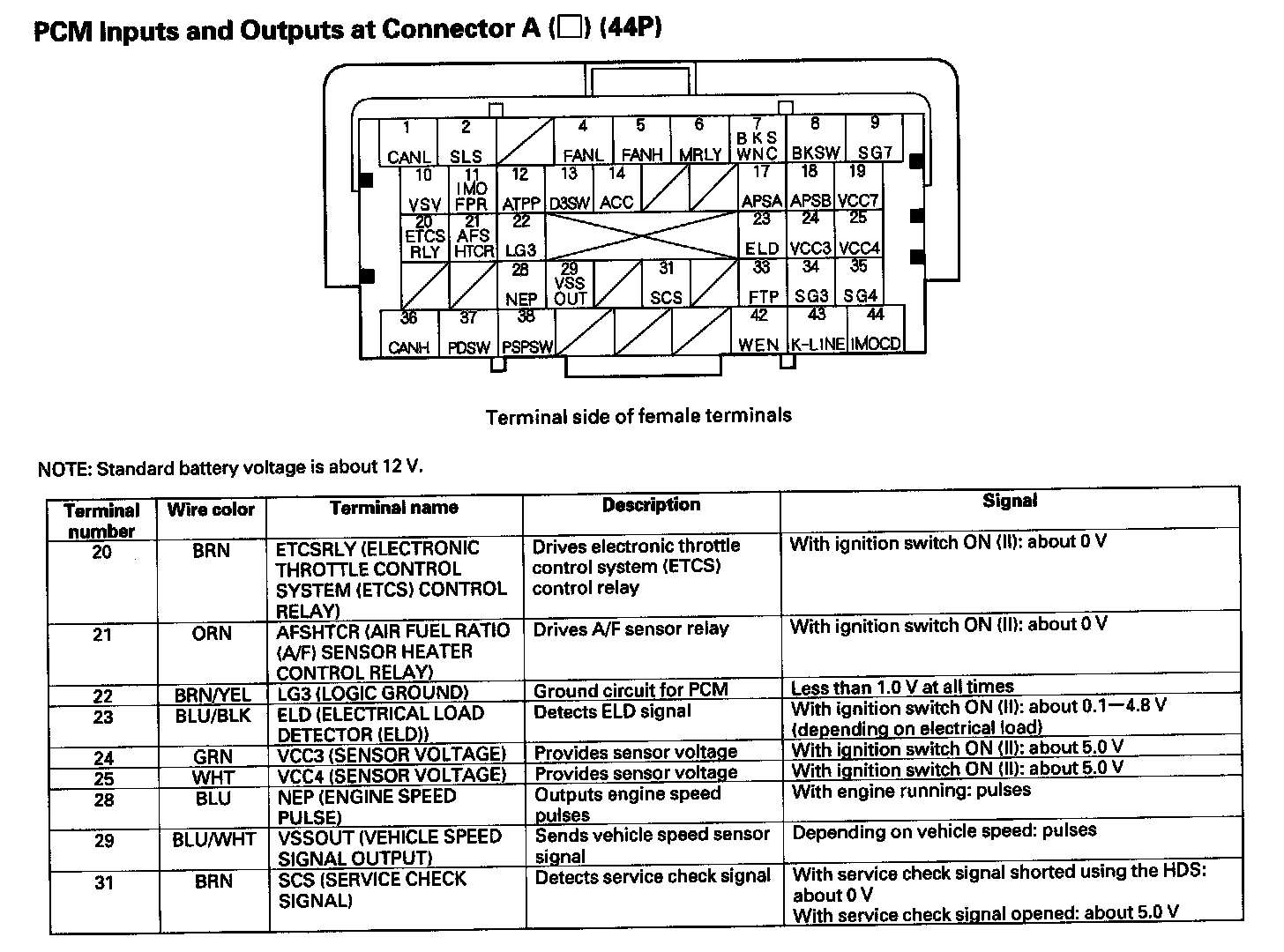

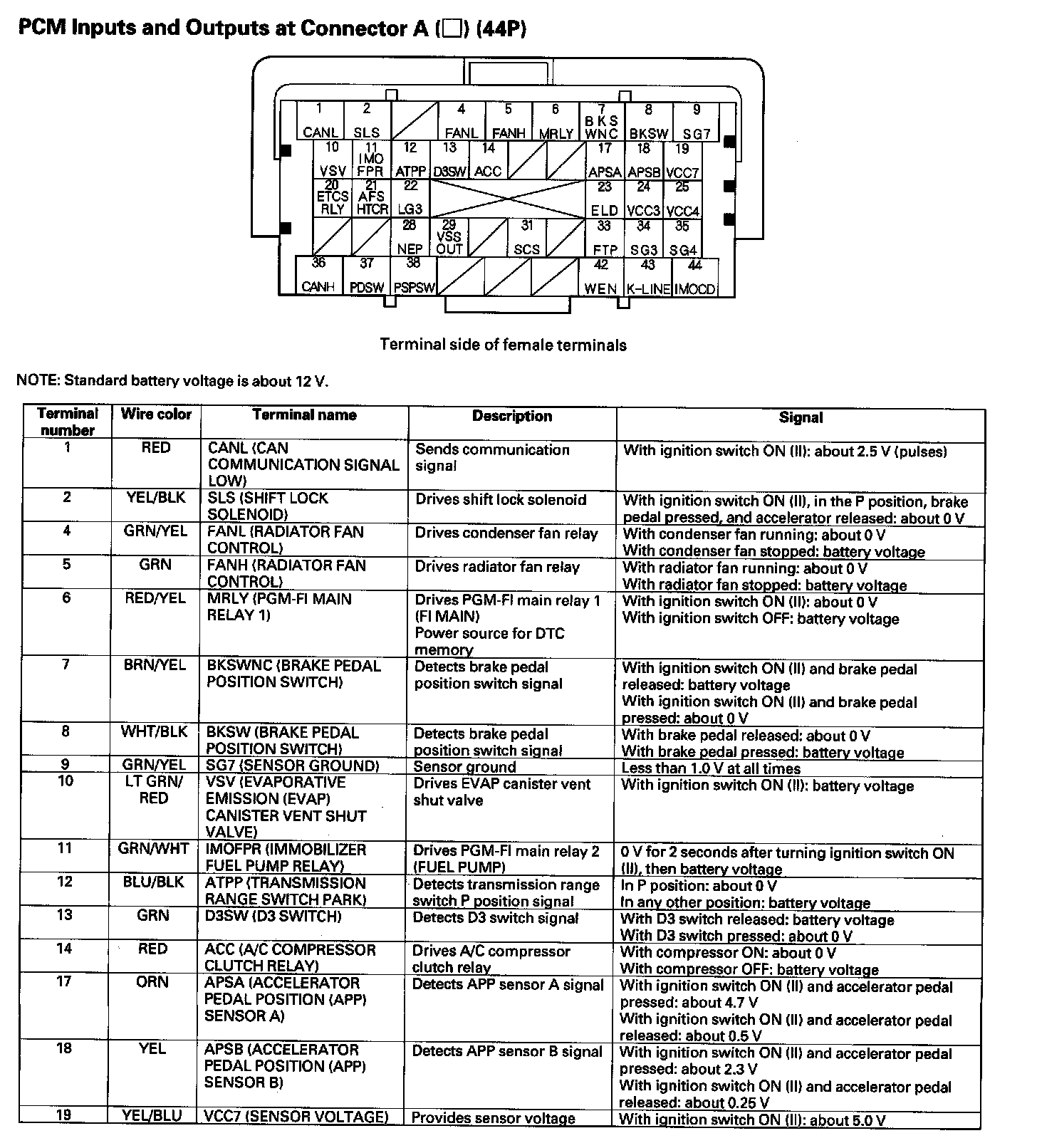

PCM Inputs And Outputs At Connector A (44P):



PCM Inputs And Outputs At Connector A (44P):



PCM Inputs And Outputs At Connector A (44P):

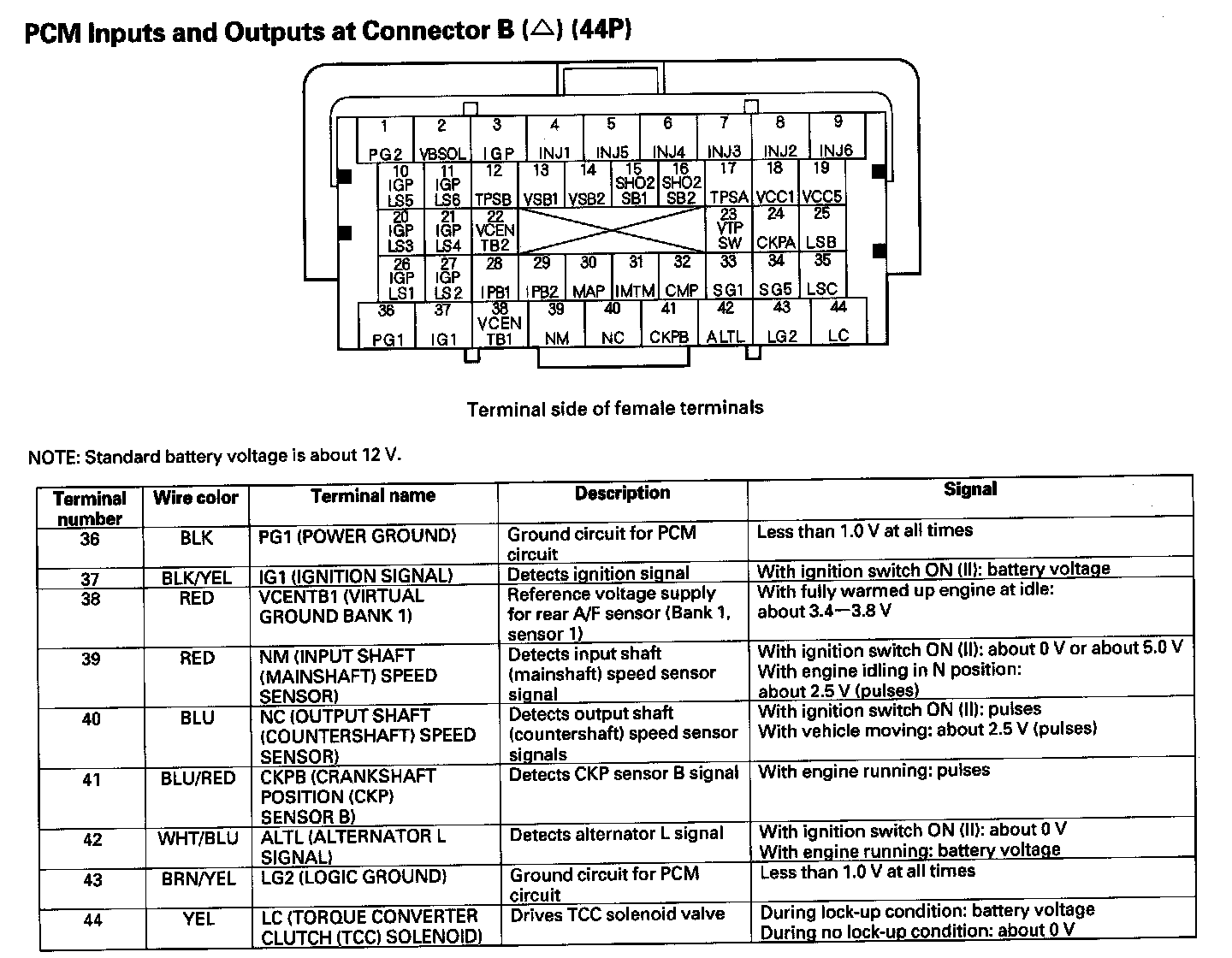

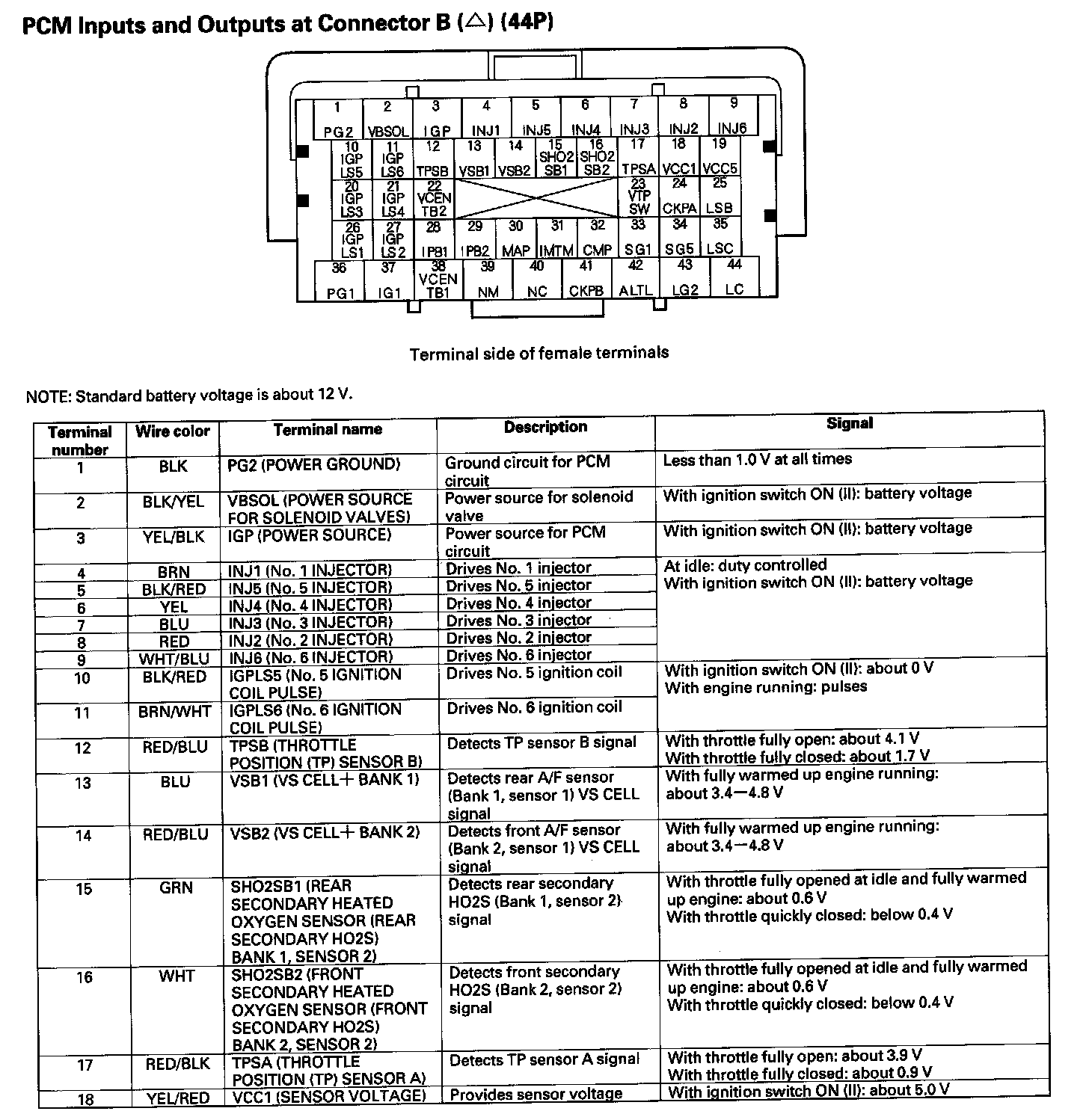

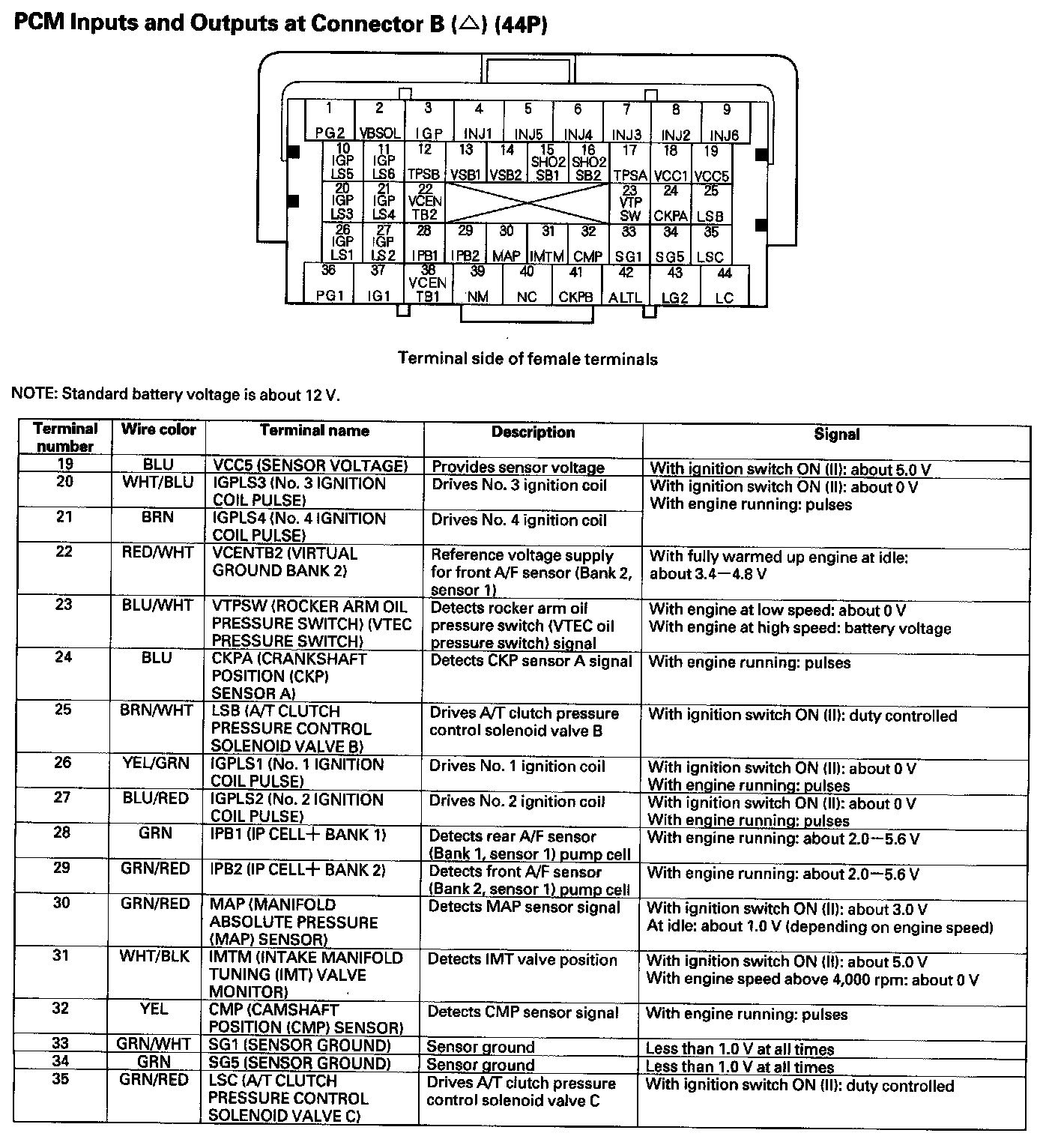

PCM Inputs And Outputs At Connector B (44P):



PCM Inputs And Outputs At Connector B (44P):



PCM Inputs And Outputs At Connector B (44P):

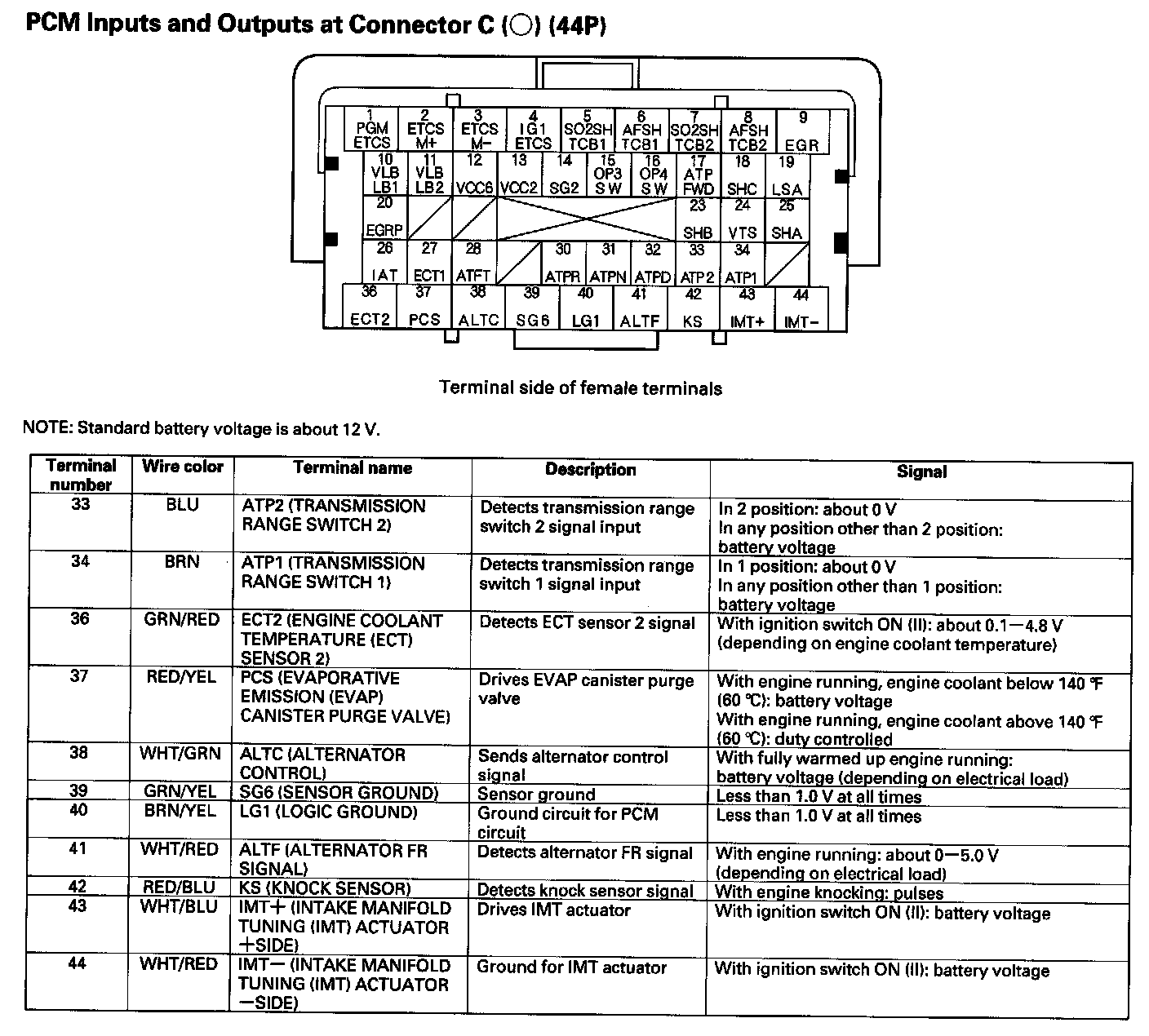

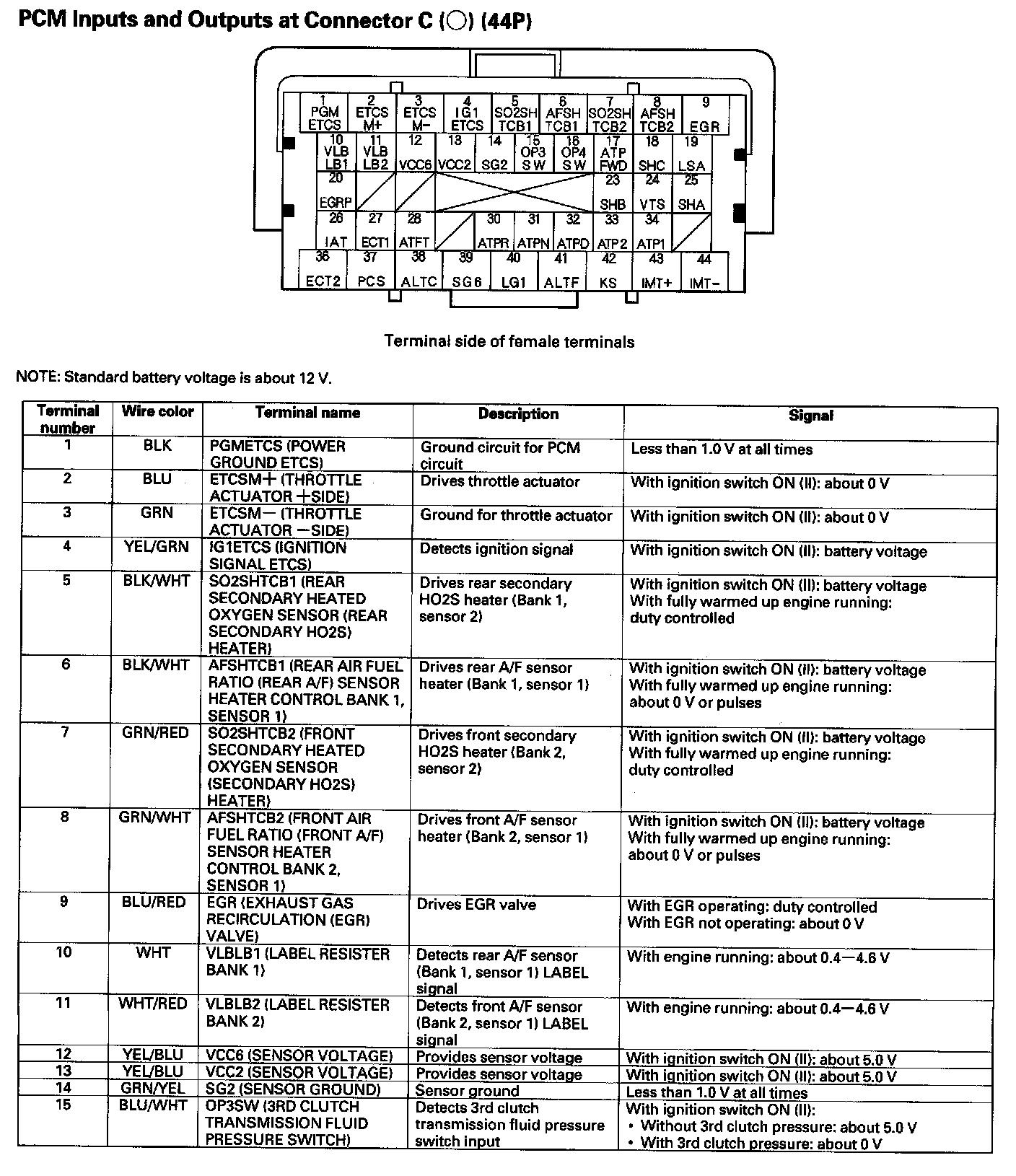

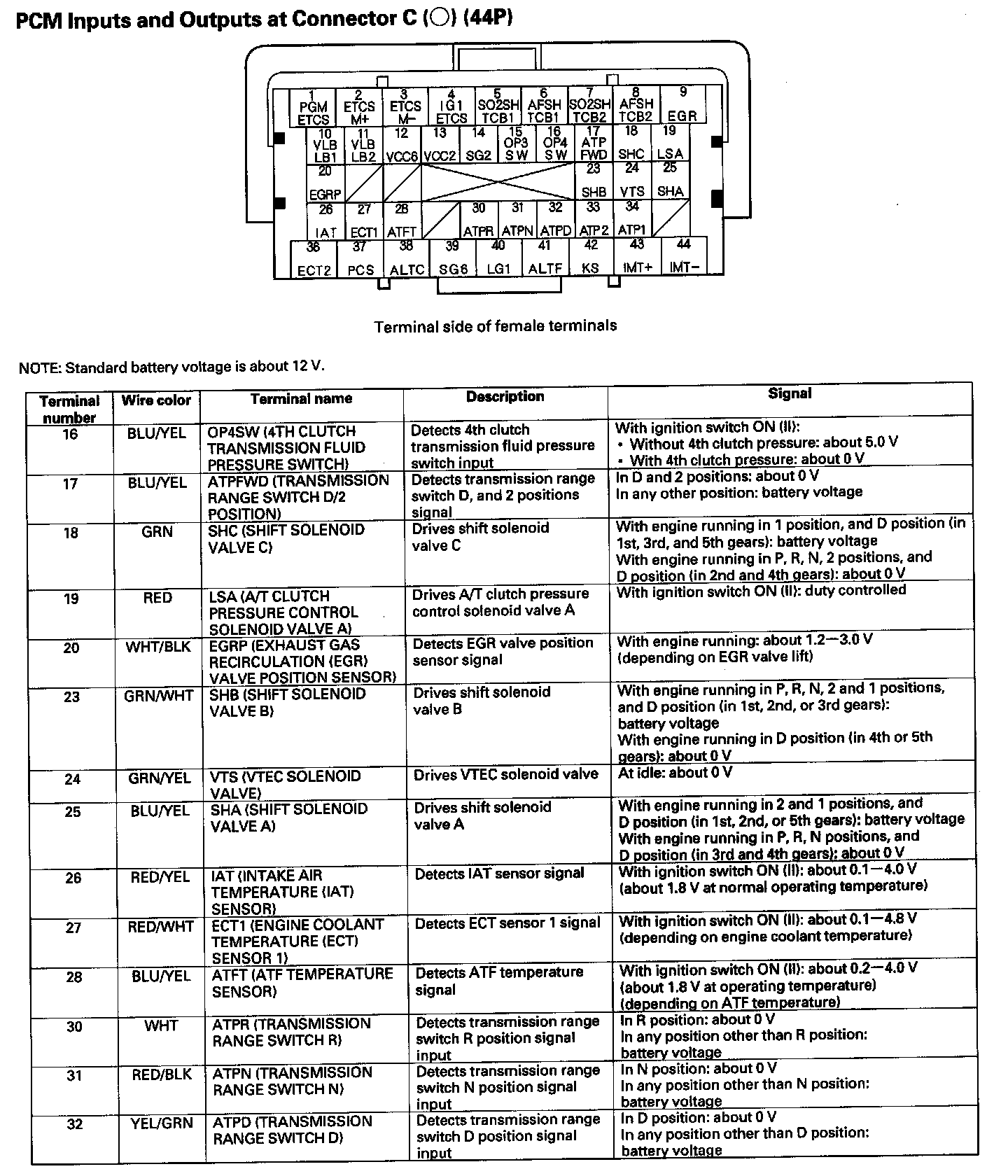

PCM Inputs And Outputs At Connector C (44P):



PCM Inputs And Outputs At Connector C (44P):



PCM Inputs And Outputs At Connector C (44P):
