Frame: Specifications

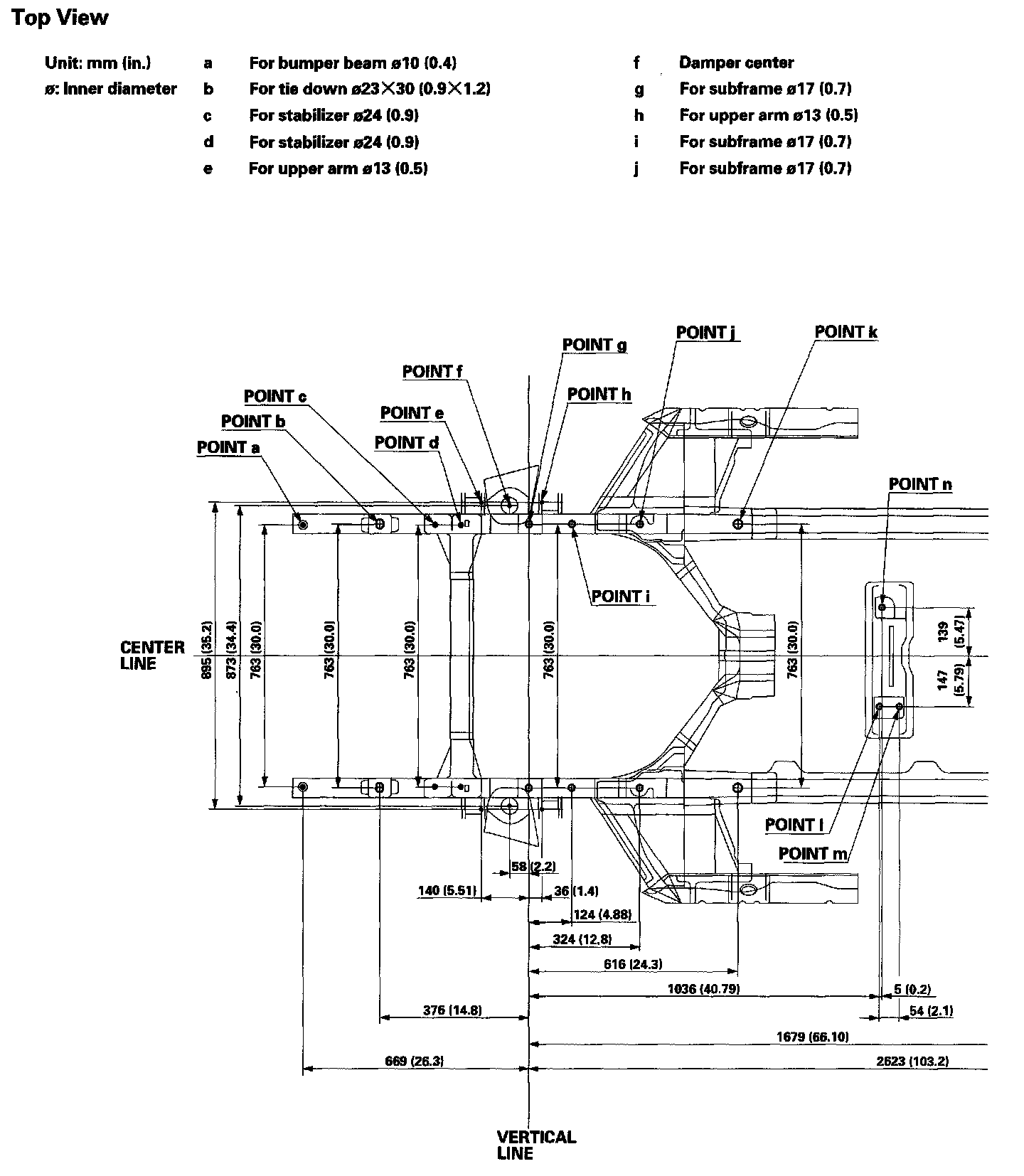

Frame Repair Chart (part 1):

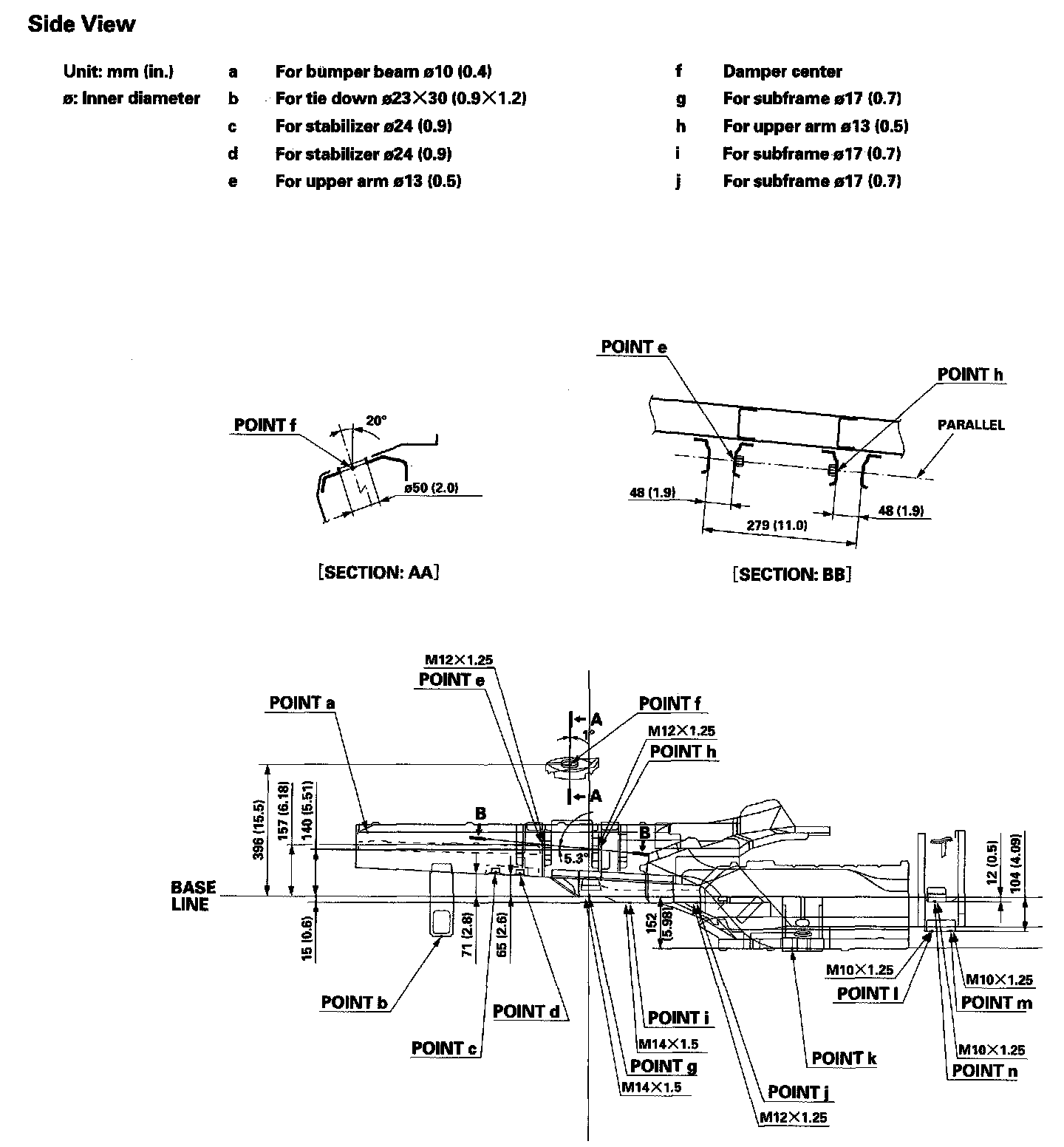

Frame Repair Chart (part 2):

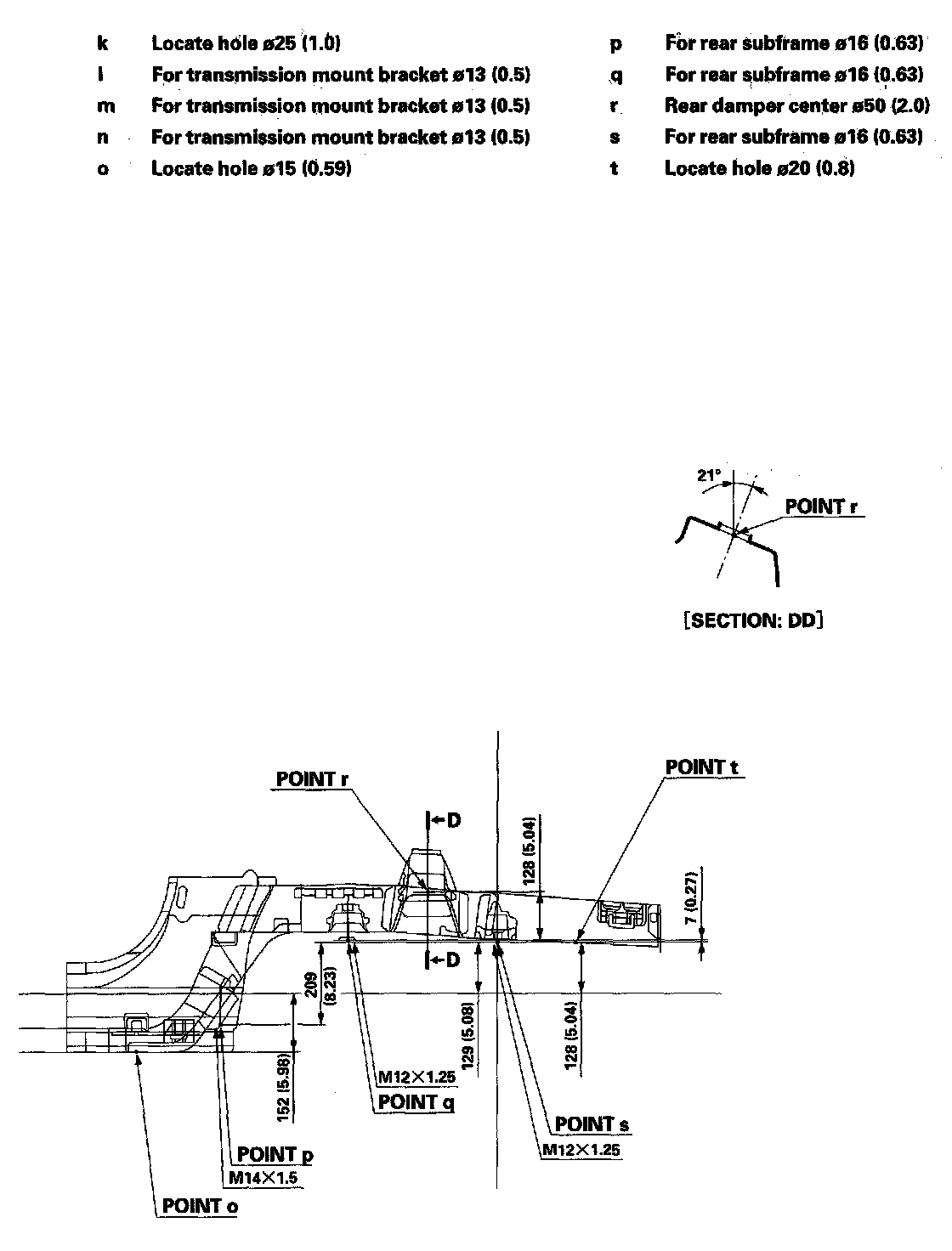

Frame Repair Chart (part 3):

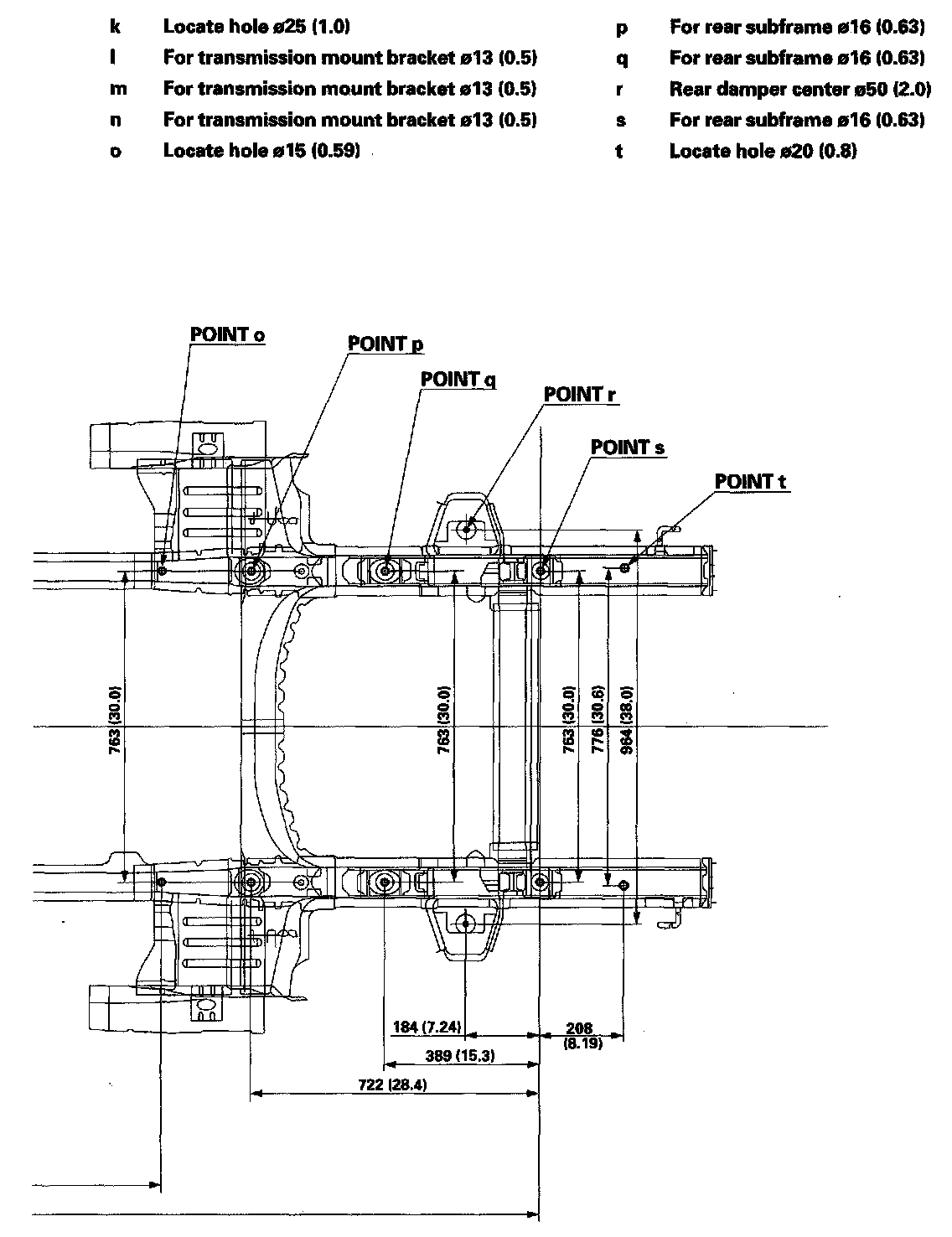

Frame Repair Chart (part 4):
