Wind Screen: Service and Repair

Wind Deflector Replacement

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

'01-08 Models

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the rear console upper lid and related parts.

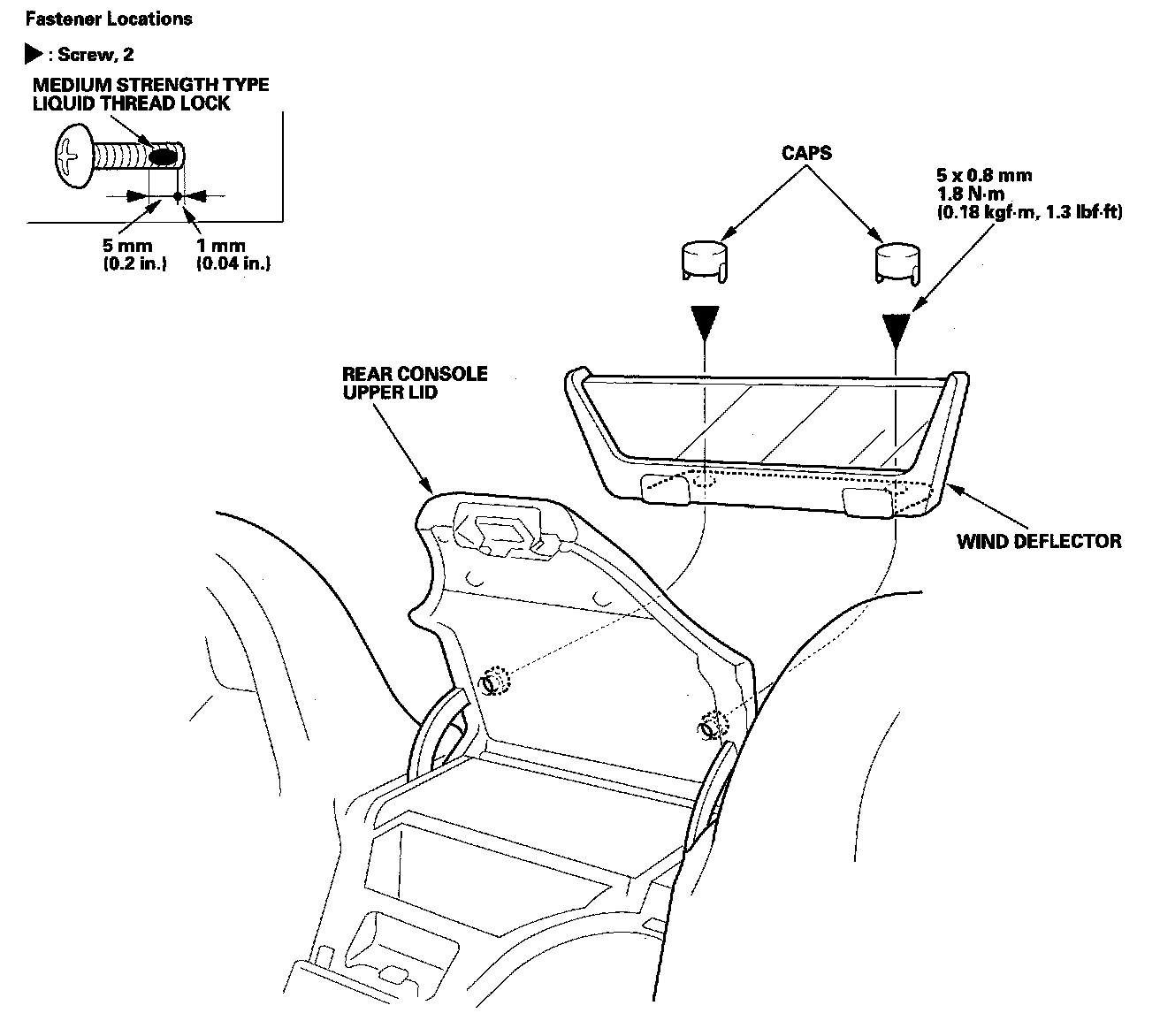

1. Remove the wind deflector as shown.
2. Install the wind deflector in the reverse order of removal.
- Apply medium strength type liquid thread lock to the thread of the screws before reinstallation.
- Make sure the caps are installed securely onto the screws.
