Climate Control Unit Connector View (Climate Control)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

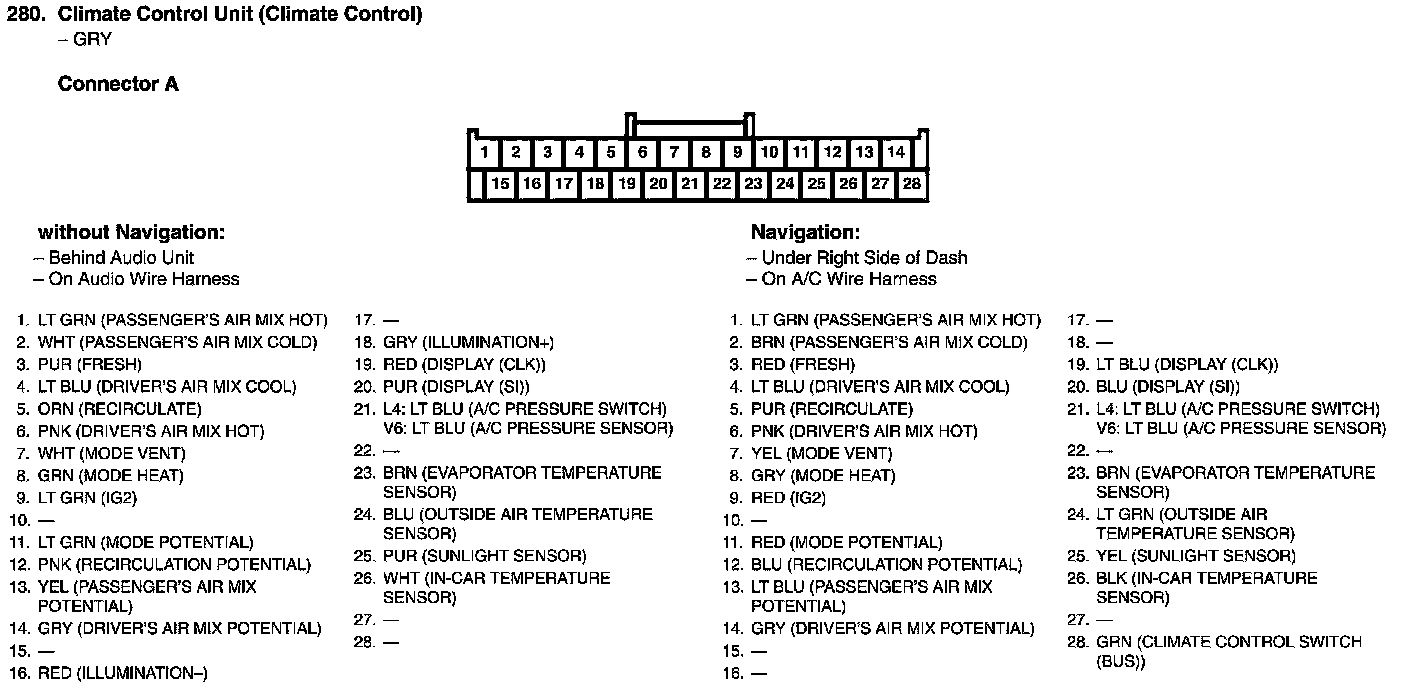

Climate Control Unit Connector View (Climate Control)
