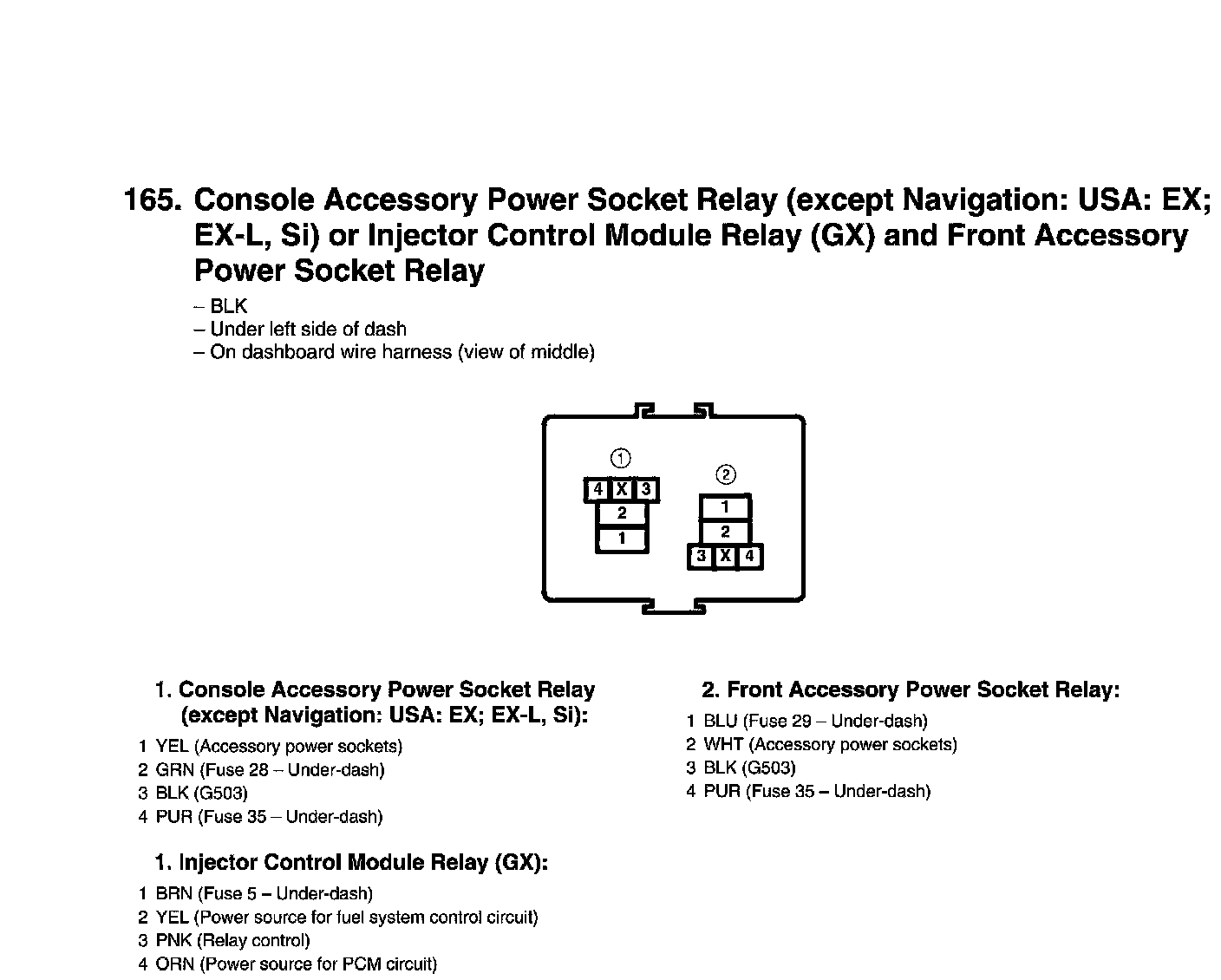

View 165 Console Accessory Power Socket Relay Or Injector Control Module Relay and Front Accessory Power Socket Relay Connector
