Passengers Power Window Switch Test/Replacement

Passenger's Power Window Switch Test/Replacement

1. Remove the passenger's door panel. Service and Repair

2. Remove the switch panel. Service and Repair

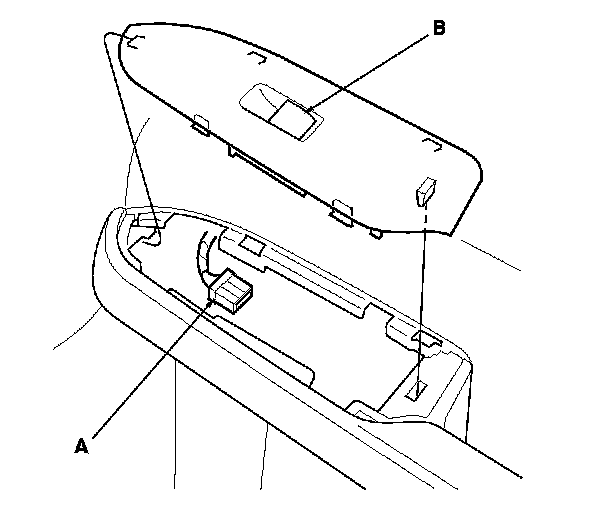

3. Disconnect the 5P connector (A) from the front passenger's power window switch (B).

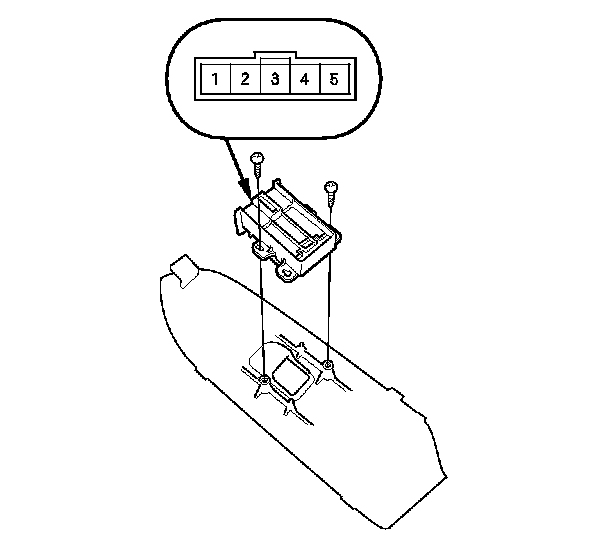

4. Remove the two screws and the passenger's power window switch.

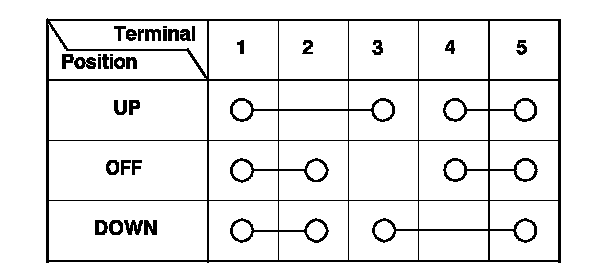

5. Check for continuity between the terminals in each switch position according to the table.

6. If the continuity is not as specified, replace the switch.

7. Install the switch in the reverse order of removal.
