Unit Check (Quick Check): Display

This diagnosis does additional checks on the communication bus between the navigation CPU and the navigation display. In addition, this test checks the internal electronic functions and touch screen operation.

If the connection is NG, replace the AUDIO-NAVIGATION UNIT  .

• Connection verifies internal communications.
• Version represents the software version for the display.

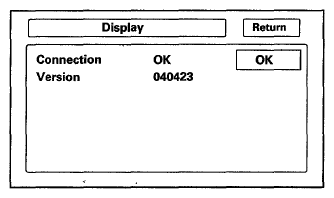

Fig 1: Navigation Screen Display - Display
