DTC P2A00: Air/Fuel Ratio (A/F) Sensor (Sensor 1) Circuit Range/Performance Problem: Notes

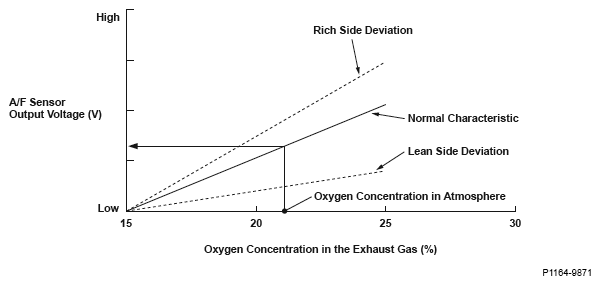

Fig 1: Relationship Between A/F Sensor Output And Oxygen Concentration

Courtesy of AMERICAN HONDA MOTOR CO., INC.
