Home >> Honda >> 2009 >> Element SC, Automatic >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> Gauge Control Module (View 239)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

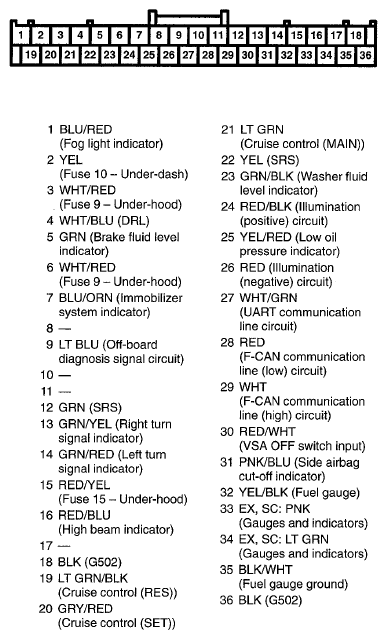

Gauge Control Module (View 239)
