Ignition Key Switch/Key Light (View 175)
GRN
In steering column cover
On dashboard wire harness B

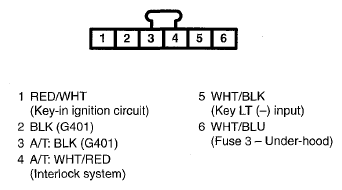

Fig 1: Ignition Key Switch/Key Light Connector Terminal (View 175)
