Block Diagram

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

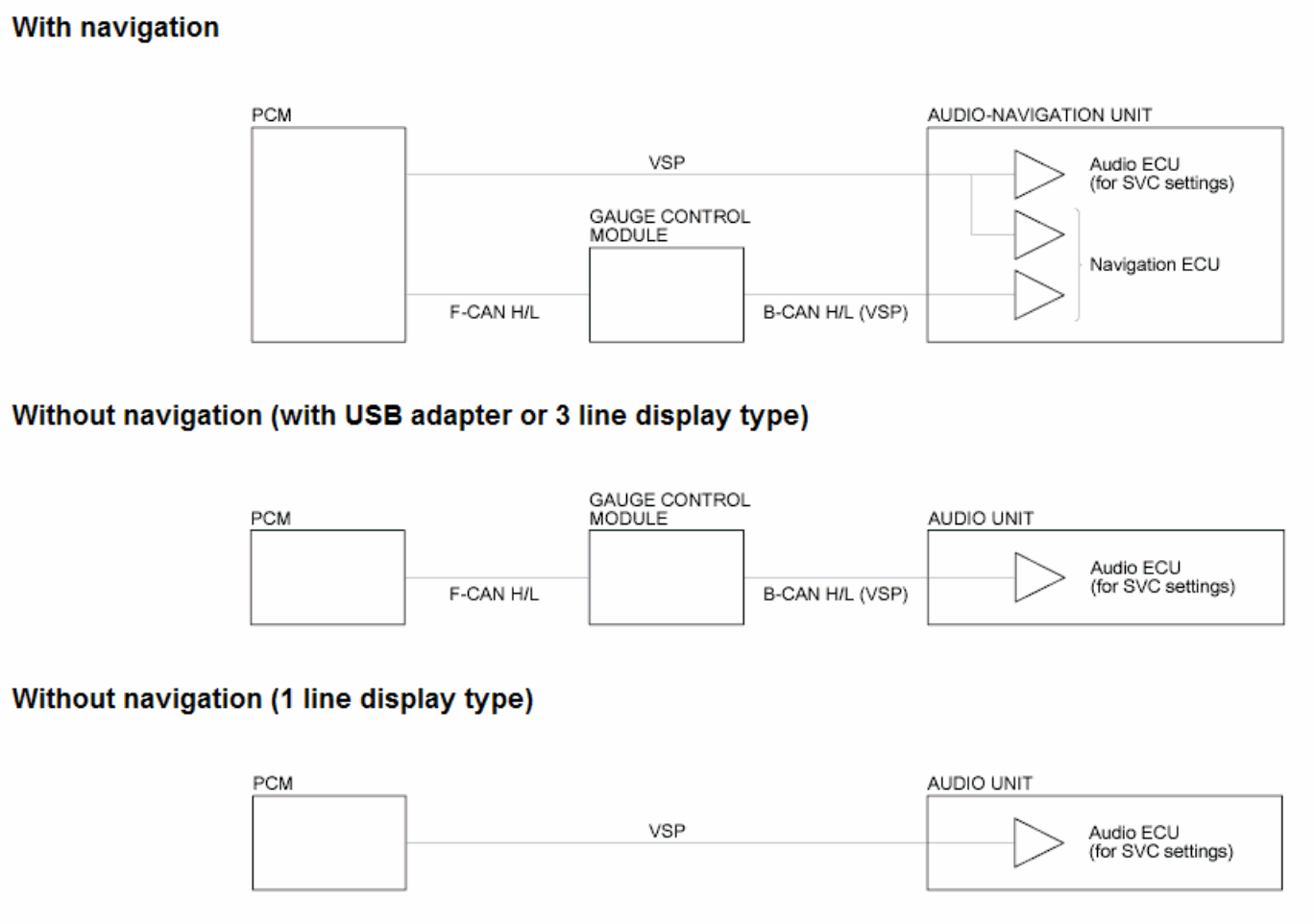

Fig 1: Speed-Sensitive Volume Compensation Block Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

To change the audio-navigation unit SVC setting, press the AUDIO button, and then select the Sound Setup from the AUDIO MENU on the navigation display. Rotate the interface dial to select the desired setting (SVC OFF, SVC LOW, SVC MID, or SVC HIGH).

To change the audio unit SVC setting, press the tune folder sound knob repeatedly until the SVC is displayed, then rotate the knob to adjust the SVC to the desired setting (SVC OFF, SVC LOW, SVC MID, or SVC HIGH).
