DTC U128D: Lost Communication with Gauge Control Module (Climate Control Unit)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).

Clear the DTCs with the HDS.
Turn the ignition switch to LOCK (0), and then back to ON (II).
Do the Self-Diagnostic Function with the HDS (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITH THE HDS ).
Check for DTCs.
Is DTC U128D indicated?

YES -Go to step 5.

NO -The system is OK at this time. Check for loose wires or poor connections on the gauge control module and climate control unit circuit.
Select B-CAN Control Units Information in the BODY ELECTRICAL menu.
Select Check Connected Control Units in the B-CAN Control Units Information menu.
Is the gauge control module detected?

YES -Substitute a known-good climate control unit, and recheck. If the symptom/indication goes away, replace the original climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION ).

NO -Go to step 7.
Turn the ignition switch to LOCK (0).
Disconnect the gauge control module 32P connector.
Disconnect climate control unit connector A (28P).

Check for continuity between the following terminals of the gauge control module 32P connector and climate control unit connector A (28P).

CONTINUITY REFERENCE

32P:	28P:
No. 29	No. 26
No. 30	No. 28

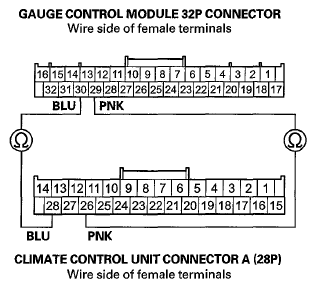

Fig 1: Checking Continuity Between Terminals Of Gauge Control Module Connector And Climate Control Unit Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to the gauge control module input test (see GAUGE CONTROL MODULE INPUT TEST ).

NO -Repair an open in the wire between the climate control unit and the gauge control module.
