Cool Box: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

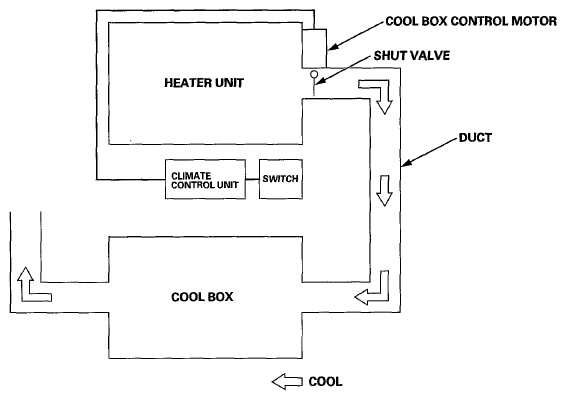

The cool box is located in the center console, and is connected to the evaporator side of the heater unit with a duct. The evaporator side of the heater unit has a cool box control motor and a shut valve. The shut valve allows cool air to flow from the evaporator into the cool box. The shut valve is driven by the cool box control motor which is controlled by the climate control unit.
