Humidity/In-Car Temperature Sensor Quality

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The capacitance of the humidity sensor changes by the adsorption and the evaporation of moisture. The resistance change of the humidity sensor changes the output voltage.

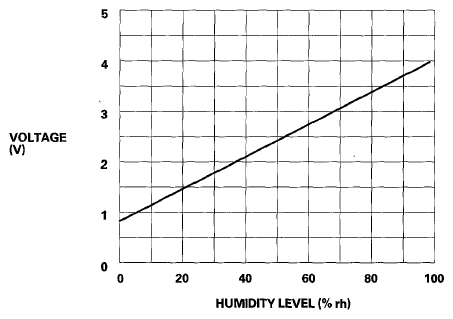

Fig 1: Identifying Voltage And Humidity Level Graph
G06968260Courtesy of AMERICAN HONDA MOTOR CO., INC.
