Humidity/In-Car Temperature Sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

The humidity sensor consists of two sensors. One sensor is for humidity detection, and the other is for in-car temperature detection. When the climate control unit receives signals about the in-car condition from the humidity sensor, and judges that the humidity in the vehicle is very low, the climate control unit reduces the A/C compressor runtime. Engine power loss is kept to a minimum, and fuel economy is increased.

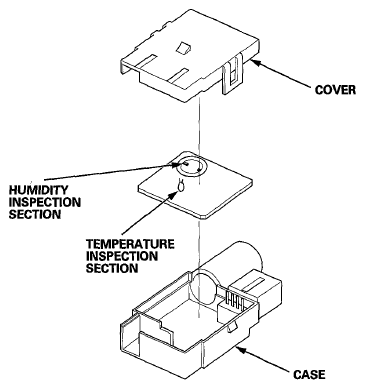

Fig 1: Identifying Humidity/In-Car Temperature Sensor Cover, Case, Humidity And Temperature Inspection
G06968259Courtesy of AMERICAN HONDA MOTOR CO., INC.
