Component Location Index: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

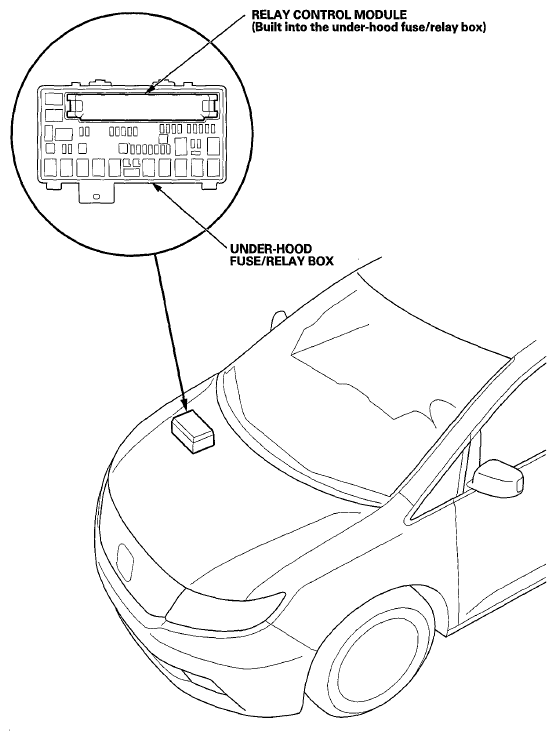

Fig 1: Identifying Multiplex Integrated Control System Replacement Components Locations (1 Of 7)
G06968591Courtesy of AMERICAN HONDA MOTOR CO., INC.

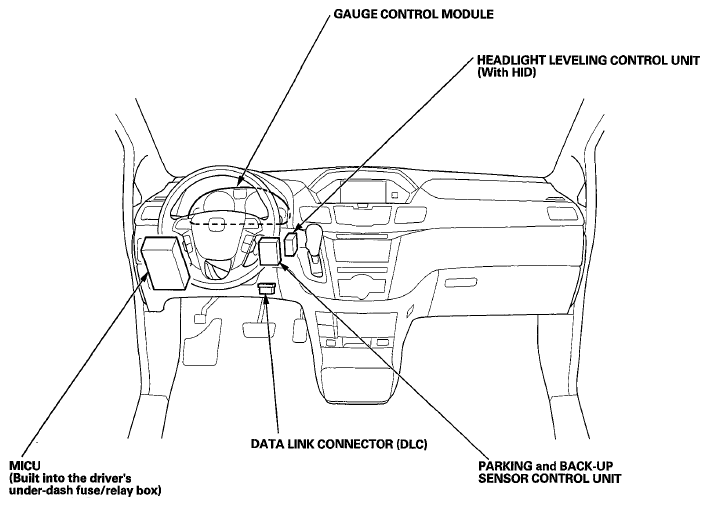

Fig 2: Identifying Multiplex Integrated Control System Replacement Components Locations (2 Of 7)
G06968592Courtesy of AMERICAN HONDA MOTOR CO., INC.
