Network "Loss of Communication" Error Checking Function
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
The ECUs on the CAN circuit send messages to each other. If there are any communication malfunctions on the network, the LCD display or multi-information display (MID) on the gauge control module can indicate the error messages by entering the gauge control module self-diagnostic function (see SELF-DIAGNOSTIC FUNCTION ).

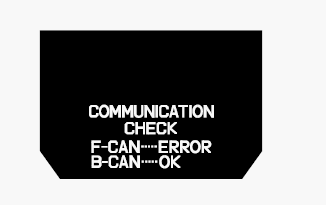

With multi-information display
