With HDS

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the transmitter lock or unlock button at least 10 times to reset the transmitter.
    • If the locks work, the transmitter is OK.
    • If any of the transmitter buttons do not work, replace the transmitter, then register the new transmitter (see IMMOBILIZER KEY REGISTRATION ).
    • If the locks do not work, go to step 2.
  2. Connect the HDS to the data link connector (DLC).
  3. Select KEYLESS TRANSMITTER from the BODY ELECTRICAL SYSTEM SELECT menu, next select inspection then select INSPECTION, then KEYLESS CHECK.
  4. Press lock, unlock, trunk, or panic button and check the response on the screen of the HDS.
    NOTE: The door lock actuators may or may not cycle when receiving input from the transmitter.
    • If KEYLESS ENTRY TRANSMITTER CODE WAS RECEIVED is indicated, the transmitter is OK.
    • If DIFFERENT KEYLESS ENTRY TRANSMITTER CODE WAS RECEIVED is indicated, the transmitter is not registered to the vehicle. If necessary, register the transmitter (see IMMOBILIZER KEY REGISTRATION ).
    • If KEYLESS ENTRY TRANSMITTER CODE WAS NOT RECEIVED is indicated, go to step 5.
  5. Open the transmitter, and check for water damage.
    • If you find any water damage, replace the transmitter, then register the new transmitter (see IMMOBILIZER KEY REGISTRATION ).
    • If there is no water damage, go to step 6.

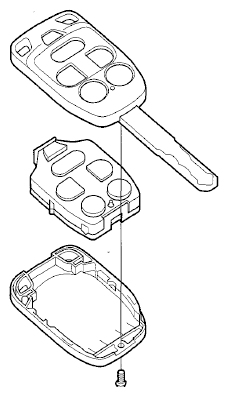

      Fig 1: Disassembled View Of Transmitter
      G06968718Courtesy of AMERICAN HONDA MOTOR CO., INC.
      NOTE: The illustration shows with power tailgate.
  6. Replace the transmitter battery (A) with a new one, and press the lock or unlock button and check the response on the screen of the HDS.
    • If KEYLESS ENTRY TRANSMITTER CODE WAS RECEIVED is indicated, the transmitter is OK.
    • If KEYLESS ENTRY TRANSMITTER CODE WAS NOT RECEIVED is indicated, go to step 7.
      Fig 2: Identifying Transmitter Battery
      G06968719Courtesy of AMERICAN HONDA MOTOR CO., INC.
      NOTE: The illustration shows with power tailgate.
  7. Use a different known-good keyless transmitter assembly and repeat steps  3 and  4.
    NOTE: The keyless transmitter does not need to be programmed to the vehicle for this test.
    • If DIFFERENT KEYLESS ENTRY TRANSMITTER CODE WAS RECEIVED is indicated, replace the keyless transmitter and do the immobilizer system registration (see IMMOBILIZER KEY REGISTRATION ).
    • If KEYLESS ENTRY TRANSMITTER CODE WAS NOT RECEIVED is indicated, the immobilizer-keyless control unit is faulty, replace it and do the immobilizer system registration (see IMMOBILIZER-KEYLESS CONTROL UNIT REGISTRATION ).
      NOTE: The keyless transmitter is combined with the immobilizer transponder, so when the transponder is registered by the HDS, the keyless transmitter programming is completed automatically.
