Front Inner Fender Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the front bumper.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the front wheel (see KNUCKLE/HUB BEARING UNIT REPLACEMENT ).
Remove the front inner fender (A).
1. Canada models: Remove the screws (B), then remove the front splash guard (C).
2. Remove the screws (D).
3. Remove the bolts (E).
4. Detach the clips (F, G, H).
  NOTE: To release the clips H, pry up on the center pin at the notch (I).

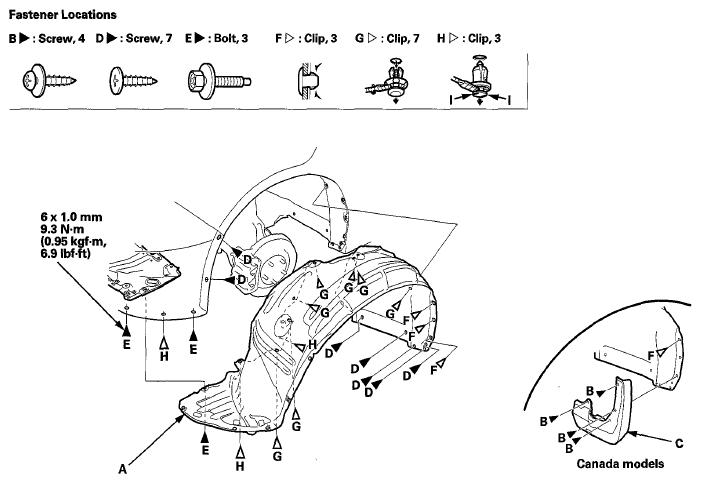

  Fig 1: Front Inner Fender Replacement Components With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the inner fender in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
