Front Splash Shield Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the bolts, and detach the clips, then remove the front splash shield (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

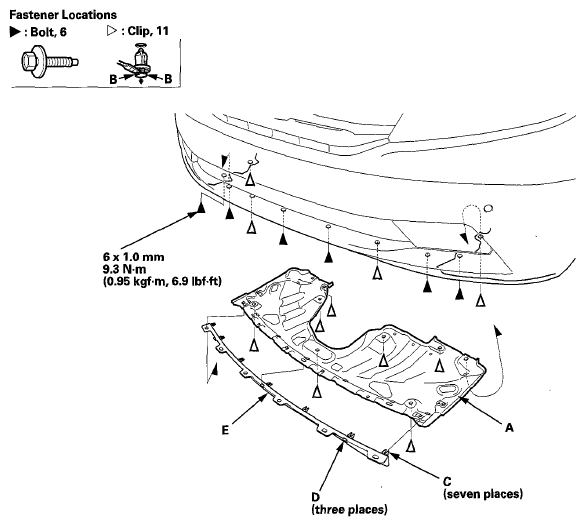

Fig 1: Identifying Front Splash Shield Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the hooks (C) (seven places), (D) (three places), then remove the front bumper air spoiler (E).
Install the splash shield in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
