Sliding Door Latch Remote Control Assembly Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Put on gloves to protect your hands.

Remove the door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
Remove the latch remote control assembly (A) from the door.
1. Disconnect the remote control assembly connectors (B).
2. Release the cable holders (C), and disconnect the outer handle cable (D), the lower roller cable (E), the front latch cable (F), and the rear latch cable (G).
3. Remove the bolts (H) and the screw (I).
4. Detach the harness clip (J), and release the hook (K).

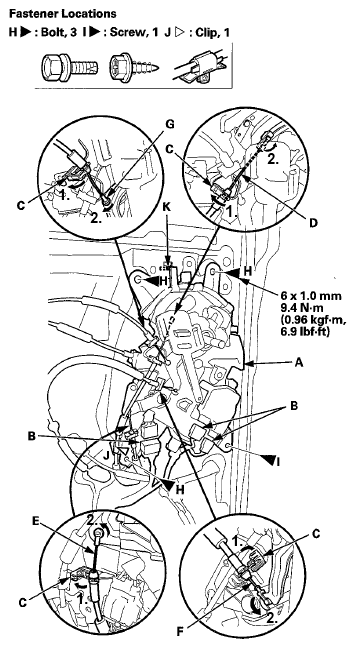

  Fig 1: Sliding Door Latch Remote Control Assembly Replacement Components With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the cable holder (A), and disconnect the failsafe lever cable (B), then remove the latch remote control assembly (C).

Fig 2: Identifying Latch Remote Control Assembly, Cable Holder And Failsafe Lever Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the hook (A), then remove the latch remote control assembly cover (B).

Fig 3: Identifying Latch Remote Control Assembly And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch remote control assembly in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly, and each cable is routed properly and connected securely.
- Take care not to bend any of the cables.
- Make sure the door locks and opens properly.
