Tailgate Support Strut Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Have an assistant help you when removing and installing the support strut.
Take care not to scratch the body or the tailgate.

Remove the pivot bolts (A), then remove the support strut (B).

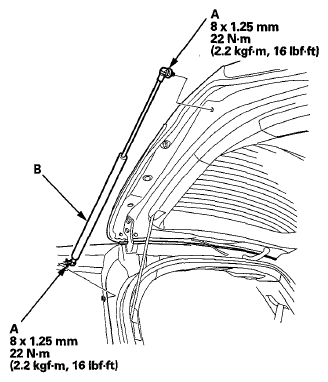

Fig 1: Identifying Tailgate Support Strut Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the tailgate support strut in the reverse order of removal.
