Detachable Console Disassembly/Reassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the console or the related parts.

Remove the detachable console.
Pull out the front beverage holder (A) to detach the clips (B, C), then remove it.

Fig 1: Identifying Front Beverage Holder And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front panel (A).
1. Remove the screws.
2. Release the hook (B), and pull out the panel to detach the clips.

  Fig 2: Identifying Front Panel And Screws
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws, then remove the lock (A).

Fig 3: Identifying Lock And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull out the rear beverage holder (A) to detach the clips (B, C), then remove it.

Fig 4: Identifying Rear Beverage Holder And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rear trim (A).
1. Remove the screws.
2. Pull out the trim to detach the clips.

  Fig 5: Identifying Rear Trim And Screws
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws, and release the projection (A), then remove the lid (B).

Fig 6: Identifying Projection, Lid And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the torque hinge (A) from the lid (B).
1. Remove the screw.
2. Remove the E-clip (C).
3. Pull out the torque hinge.

  Fig 7: Identifying Torque Hinge, E-Clip, Lid And Screw
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

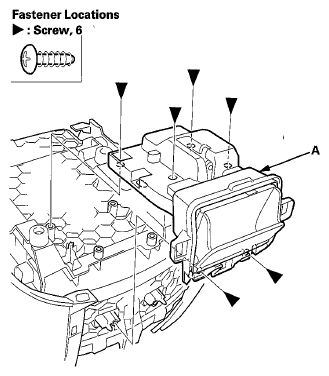

Remove the screws, then remove the detachable console dampers (A).

Fig 8: Identifying Detachable Console Dampers And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reassemble the detachable console in the reverse order of disassembly, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips, the hooks, and the projection into place securely.
