Drive Unit Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the C-pillartrim (see C-PILLAR TRIM ).
Remove the upper trim and the left tailgate side trim (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).

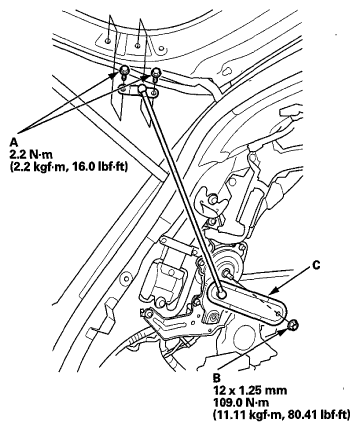

Note the alignment marks on the drive unit and the arm unit, then carefully remove the two bolts (A), nut (B), and the arm unit (C).

Fig 1: Arm Unit And Drive Unit Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

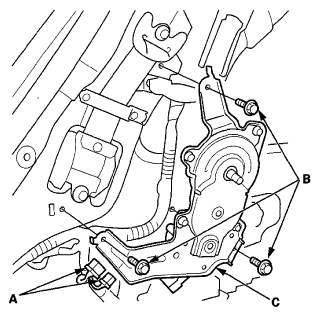

Disconnect the connectors (A), and remove the three bolts (B) and the drive unit (C).

Fig 2: Identifying Drive Unit, Connectors And Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
NOTE: Align the marks (A) of the drive unit and arm unit to install the arm unit to the original alignment.

Fig 3: Identifying Drive Unit And Arm Unit Alignment Marks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
