Driver's Power Tailgate Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's middle panel (see DRIVER'S MIDDLE PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P [17P] connector (A) from the driver's power tailgate switch (B).
[]: With parking and back-up sensor system

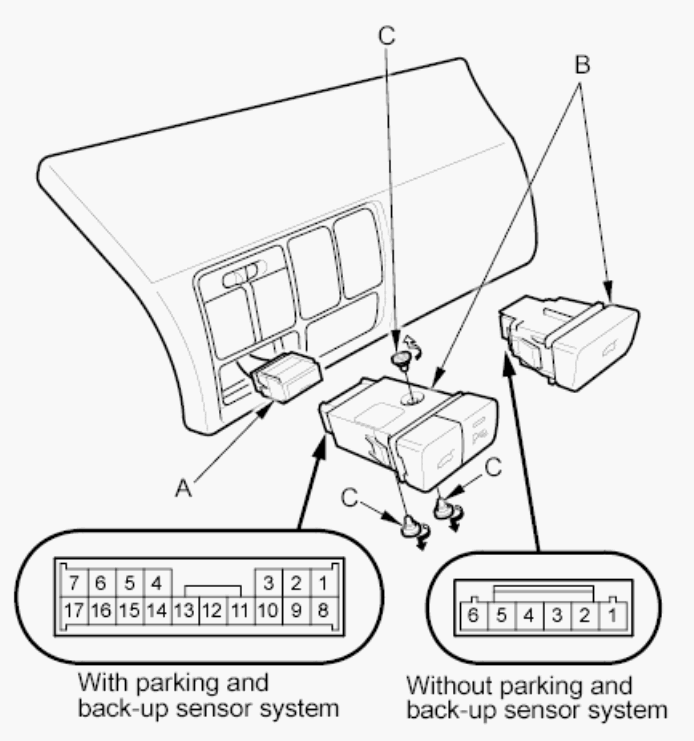

Fig 1: Identifying Driver's Power Tailgate Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.

[]: With parking and back-up sensor system
With parking and back-up sensor system: If the continuity is not as specified, check the bulb(s) (C). If the bulb(s) are OK, replace the driver's power tailgate switch.
Without parking and back-up sensor system: If the continuity is not as specified, check the bulb (A). If the bulb is OK, replace the driver's power tailgate switch.

Fig 3: Replacing Bulb And Driver's Power Tailgate Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
