Pinch Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the clips, the screws, the bolts, and the nuts from the pinch sensor (A).
    NOTE: The illustration shows the left side pinch sensor; right side is similar.

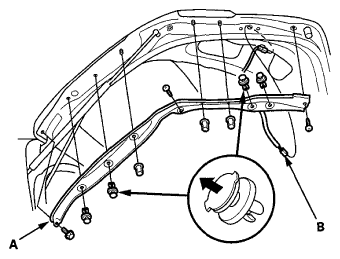

    Fig 1: Identifying Pinch Sensor With Clips And Mounting Bolts And Nuts
    G06970406Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (B) from the pinch sensor.
  4. Install in the reverse order of removal.
