Power Sliding Door Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's middle panel (see DRIVER'S MIDDLE PANEL REMOVAL/INSTALLATION ).
Disconnect the 12P connector (A) from the power sliding door switch (B).

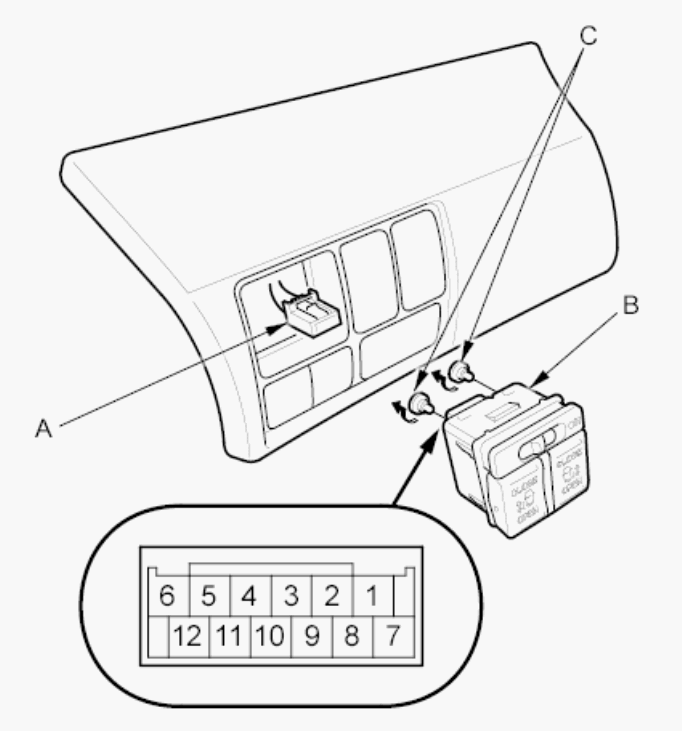

Fig 1: Identifying 12P Connector And Power Sliding Door Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Open/Close Switch:

Fig 2: Power Sliding Door Switch Terminal Continuity Chart (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Main Switch:

Fig 3: Power Sliding Door Switch Terminal Continuity Chart (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, check the bulb(s) (C). If the bulb(s) are OK, replace the switch.
Install the parts in the reverse order of removal.
