Exploded View

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

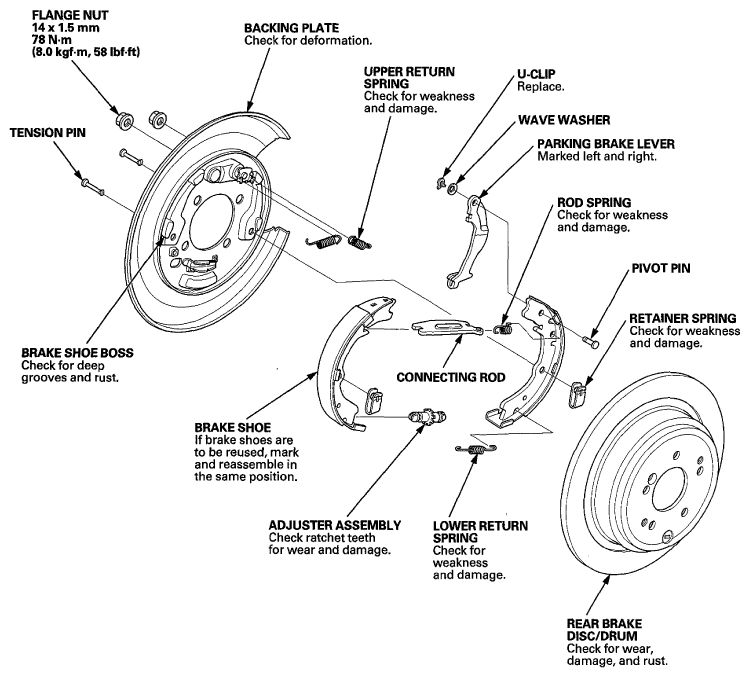

Fig 1: Exploded View Of Parking Brake Shoe With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CAUTION: Frequent inhalation of brake shoe dust, regardless of material composition, could be hazardous to your health.

Avoid breathing dust particles.
Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.

NOTE: Refer to the EXPLODED VIEW as needed during this procedure.
